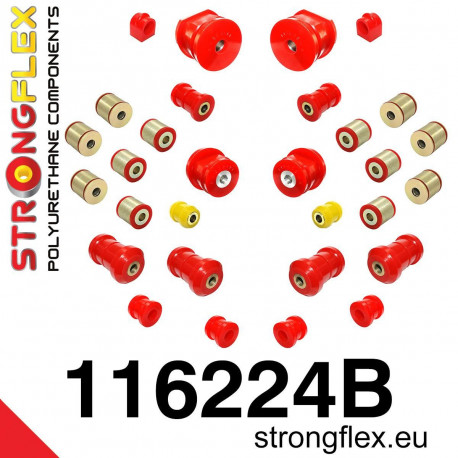

STRONGFLEX - 116224B: Full suspension bush kit

Ref: 116224B

Name: Full suspension bush kit

Fit:

Mercedes - W201 - 190

Mercedes E - W124

Mercedes SL - R129

Include:
           2 x 111814B Front anti roll bar - inner bush
Diameters:

           22,23,25,27,28,29,30mm

2 x 111815B Front anti roll bar - outer bush

Diameters:

18,22,23,25,27,28mm



4 x 111816B Front lower arm bush

2 x 111817A Rear toe adjuster inner bush SPORT

6 x 111818B Rear control arm - inner bush

6 x 111819B Rear control arm - outer bush

2 x 111820B Rear track control arm Inner bush

2 x 111821B Rear anti roll bar bush

Diameters:

13,14,15,16,17,18,19,20,21,22mm

2 x 111822B Rear subframe - front bush

2 x 111823B Rear subframe - rear bush

Pcs/prod: 30

Required/car: 1

Diagrams:

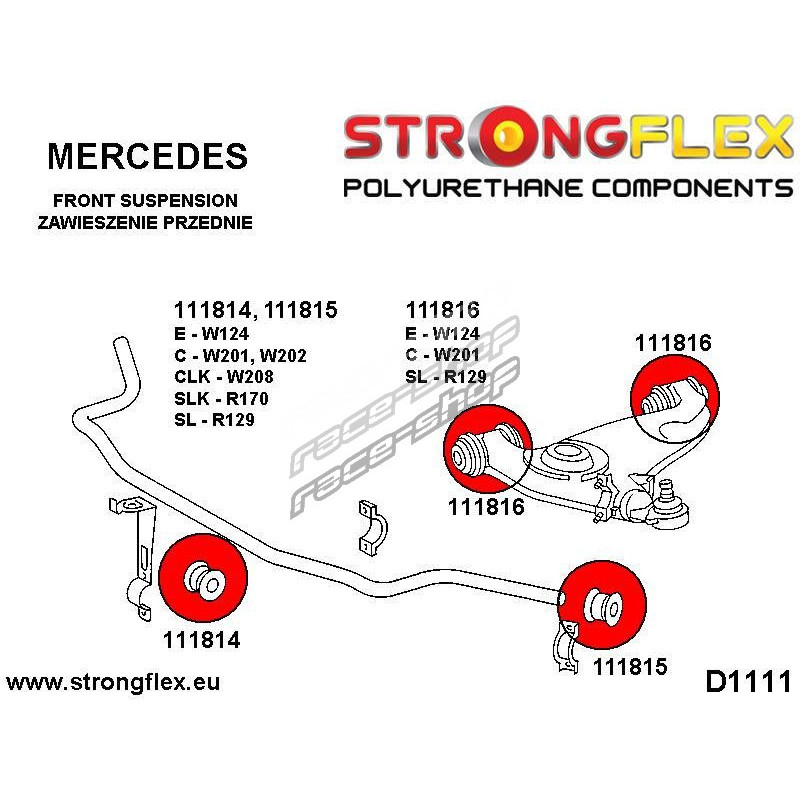

D1111

D1112

NOTE!

Choosing the diameter of the front anti roll bar bush 111814 and 111815,
be sure to check out the inner and outer diameter of the anti roll bar.

111819 - During installation you should use the original 13mm reducer sleeve from an old wishbone.

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
