WISEFAB lock kit for Toyota GT86 (RHD)

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.

Nov izdelek

Razprodano

3.566,70 € z DDV

Žal izdelek začasno ni na voljo. Prosim izberite drugega.
Za samodejne informacije o zalogah izdelkov,
kliknite na "Obvestite me, ko bo na voljo".

WF860 RHD

Povpraševanje o izdelku

Povpraševanje o izdelku

WISEFAB lock kit for Toyota GT86 (RHD)

WISEFAB lock kit for Toyota GT86 (RHD)

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.

Vprašanje o tem izdelku pošljite lastniku trgovine.

* Obvezna polja

  ali  Prekliči

Notify me

Notify me about the stock

WISEFAB lock kit for Toyota GT86 (RHD)

WISEFAB lock kit for Toyota GT86 (RHD)

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.

Product Features:

  • To suit Toyota GT86
  • 62° of steering angle
  • Corrected roll centre
  • Ackermann reduction and adjustment
  • Precise camber adjustment
  • Adjustable top mounts
  • Made from CNC'd 7075-T6 aluminium



Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

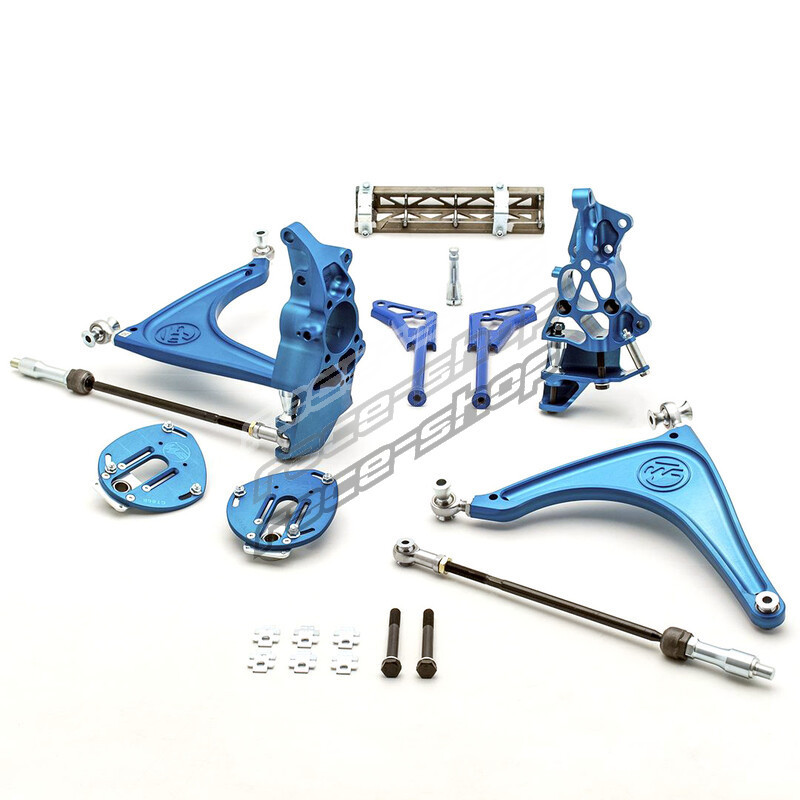

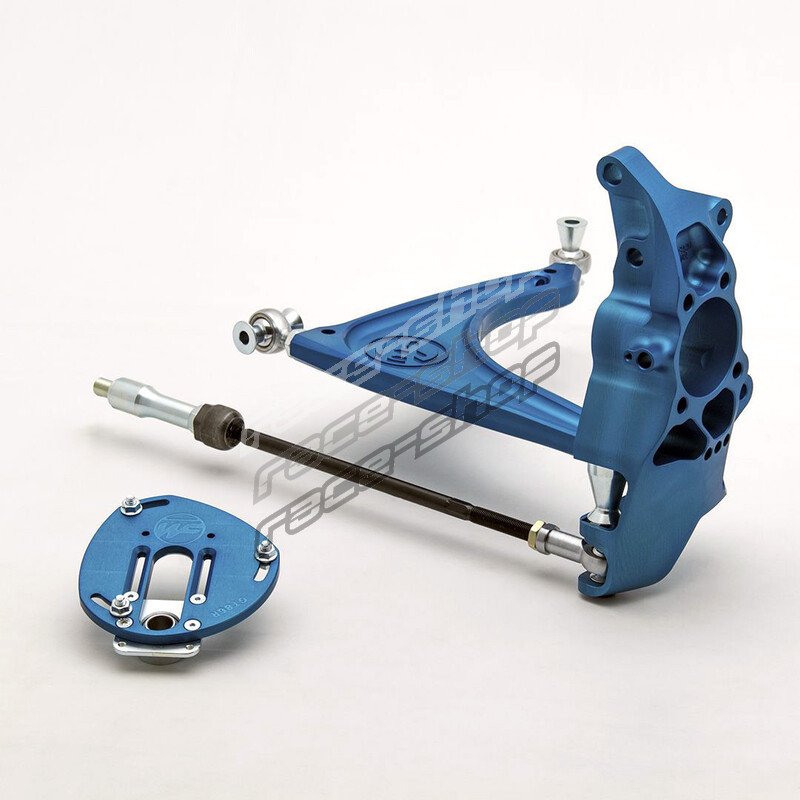

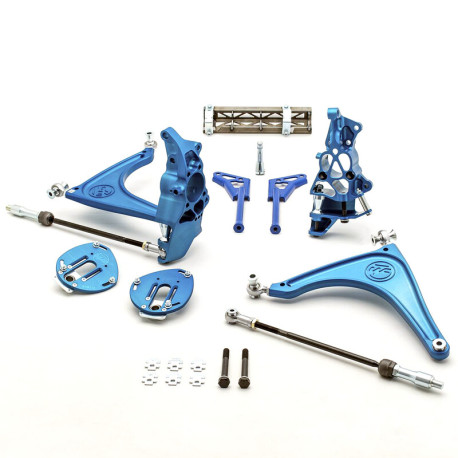

Kit contents :

  • Camber adjustable top mounts
  • CNC aluminium uprights
  • CNC aluminium lower arms

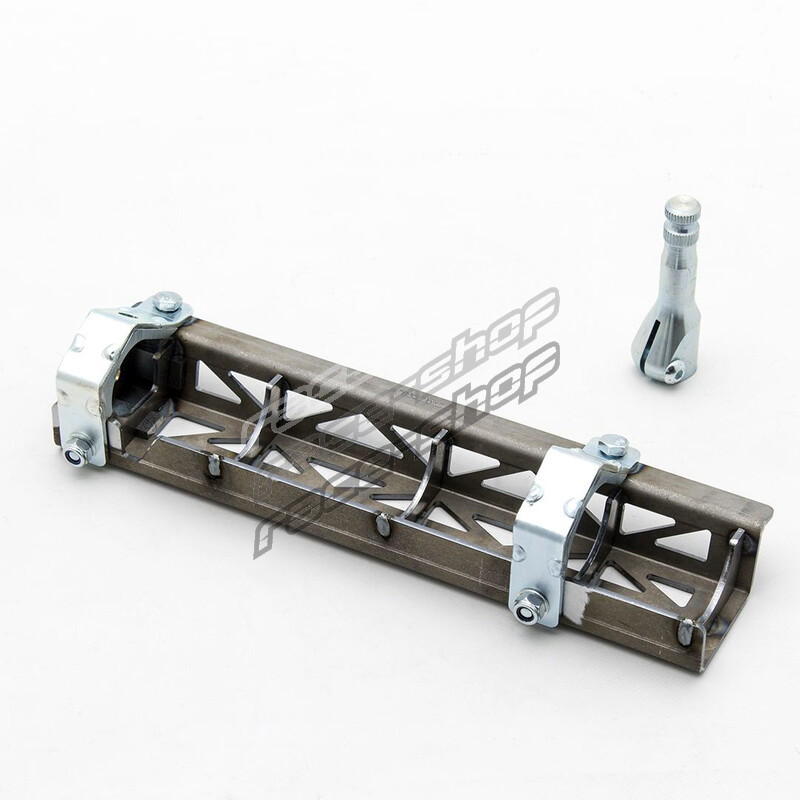

  • S-Chassis steering rack mount

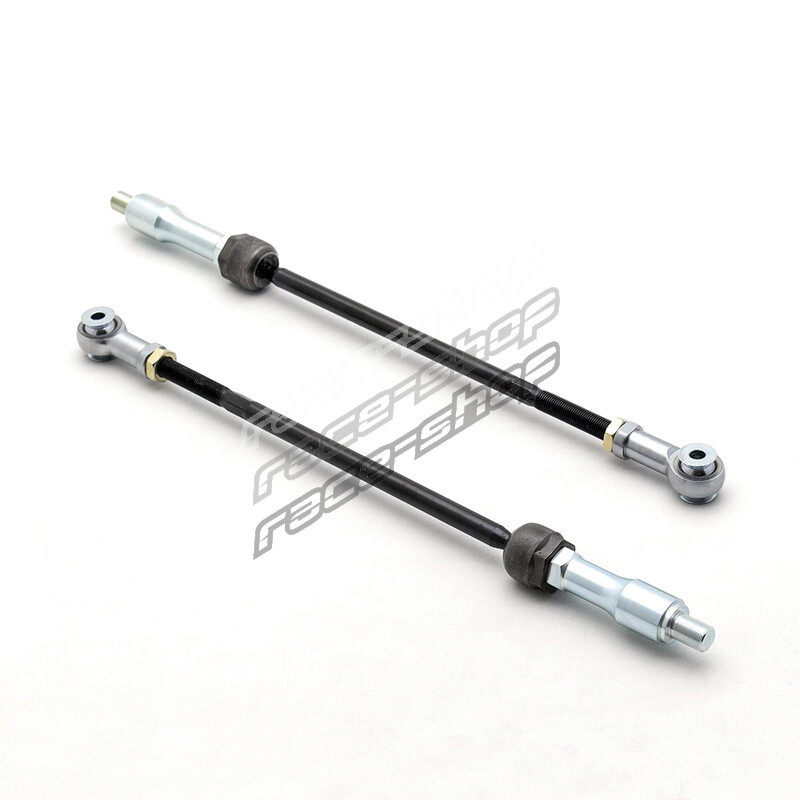

  • Tie rods
  • Tie rod ends
  • All required fixings for installation
  • Ackermann adjustment kit - easily fine tune your Ackermann angle





Manufacturer advice :
  • Wisefab recommend a wheel diameter that doesn't exceed 605 mm (215/40R17, 225/40R17, 215/35R18, 225/35R18 for example)
  • Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
  • Adjust camber to -6°
  • Adjust caster to 5°
  • Adjust toe in/out to 0°
  • Use 17 ou 18" inch, 8" wide with an ET35 (or near size, like 7" ET45 or 9" ET25)

This kit comes with everything needed for a "plug and play" installation. If you have any questions, do not hesitate to ask!
