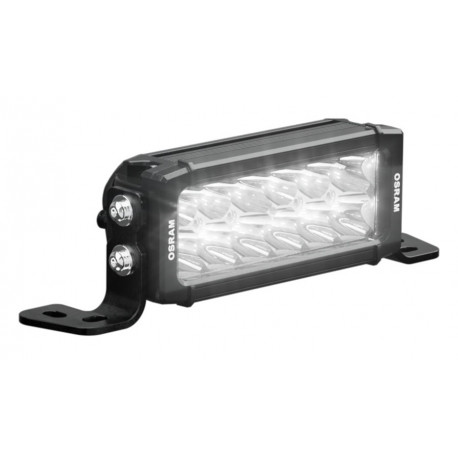

OSRAM led driving lights Lightbar VX180-SP DR, 2100Lm, 340m

Introducing the LEDriving Lightbar VX180-SP DR, equipped with 12 high-performance LEDs illuminating up to 200 meters. A 6000 Kelvin color temperature ensures daylight-like visibility in challenging conditions. This double-row design lightbar delivers 2100 lumens of powerful, evenly distributed light. It offers versatile mounting options with standard brackets and is built to withstand environmental challenges, featuring an aluminum housing and a sturdy polycarbonate lens. Tested with IP-Protection Classes IP6K8 & IP6K9K, it's tough against water, dust, impacts, heat, cold, and vibrations. Suitable for on-road and off-road use, it's compatible with cars, trucks, agricultural machinery, commercial vehicles, construction equipment, caravans, off-road vehicles, and quads.

It complies with ECE regulations for road use.

Electrical data

• Nominal wattage 18.00 W
• Test voltage 13.2 V

Photometrical data

• Luminous flux 2100 lm
• Color temperature 6000 K
• Light distance at 1lx 340 m

Dimensions & weight

• Product weight 621.00 g
• Length 168 mm
• Width 62.0 mm
• Height 74.0 mm

Lifespan

• Lifespan Tc > 5000 h

Additional product data

• Connector to lamp Open wire

Certificates & standards

• Approval marks – approval E9 approval
• Standards ECE R10, R149
• Type of protection IP6K8/IP6K9K
