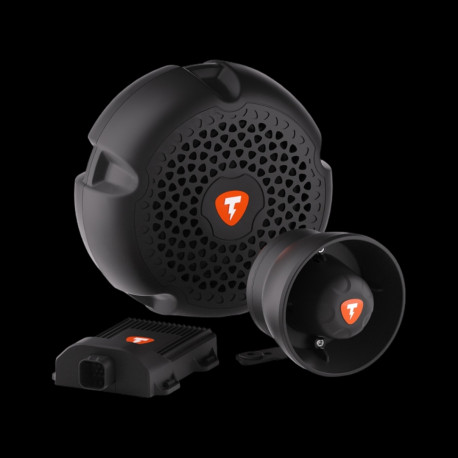

Universal THOR Storm electronic exhaust system with Thor ECHO - basic kit

This THOR kit is a basic electronic exhaust system kit that combines a powerful STORM speaker and an ECHO high-frequency speaker. The sound is bright, rich and expressive at any speed, with characteristic bullet holes that emphasize the sporty style of the car. It is suitable for those who want to emphasize the character of the car and add emotion to everyday driving. Compatible with cars built in 2005. Management is carried out through a mobile application.

Thor STORM loudspeaker specification:

• Heavy duty plastic loud speaker
• The loud speaker simulates a large volume engine
• Partly covers the standard engine tone (especially on diesel applications)
• No exhaust system can reach such sound (especially on diesel applications)
• Classic sounds recorded only from real vehicles
• Dimensions: 11,7 x 11,7 x 21,4 cm
• Resonance frequency: 56 Hz
• Frequency range: 70-11000 Hz
• Impedance: 2 Om
• Sensitivity: 87 dB
• Rated power: 41 W
• Max power: 95 W
• Amplifier compability: THOR ECU V6.x.x. and later

Thor Control unit specification:

• Communication range via the BLE interface
• Sound amplifier power: up to 85W
• Current consumption: 5 A
• Amplifier efficiency: more than 90%
• Device power supply: from 10 to 30 V
• Supported CAN exchange rates (kBit/s): 125, 250, 500, 1000.
• Supported smartphone OS versions: iOS at least 10; Android at least 5.

Thor Echo specification:

• Resonance frequency: 680 Hz
• Frequency range: 700-7500 Hz
• Nominal resistance: 6 Ohm
• Sensitivity: 99,5 dB
• Rated power: 50 W
• Dimensions: 11,4 x 10,6 cm

Control and profile settings:

• Sound system controlled via mobile APP (available on App Store or Google Play)
• Choose between 20+ different exhaust sounds of legendary engines
• New sounds added and updated every month

Application:

• ANY vehicle 2005+ (with engine CAN bus)
• Also suitable for electric cars

Scope of delivery:

• THOR STORM speaker (sound generator)
• THOR ECHO speaker
• THOR electronic control unit
• Installation material (wiring, mounting brackets)
• Instructions

Note:

• This product is a universal complete kit, which means that the revision of the sound generator for your vehicle needs to be done by you
• The installation of THOR Electronic exhaust can lead to the expiry of the operating license of your vehicle or to the refusal of a license for your car, according to the current practice of car registration offices. If you have any questions, please contact the responsible licensing authorities.
• Installation INSTRUCTIONS can be found in the product attachments tab
