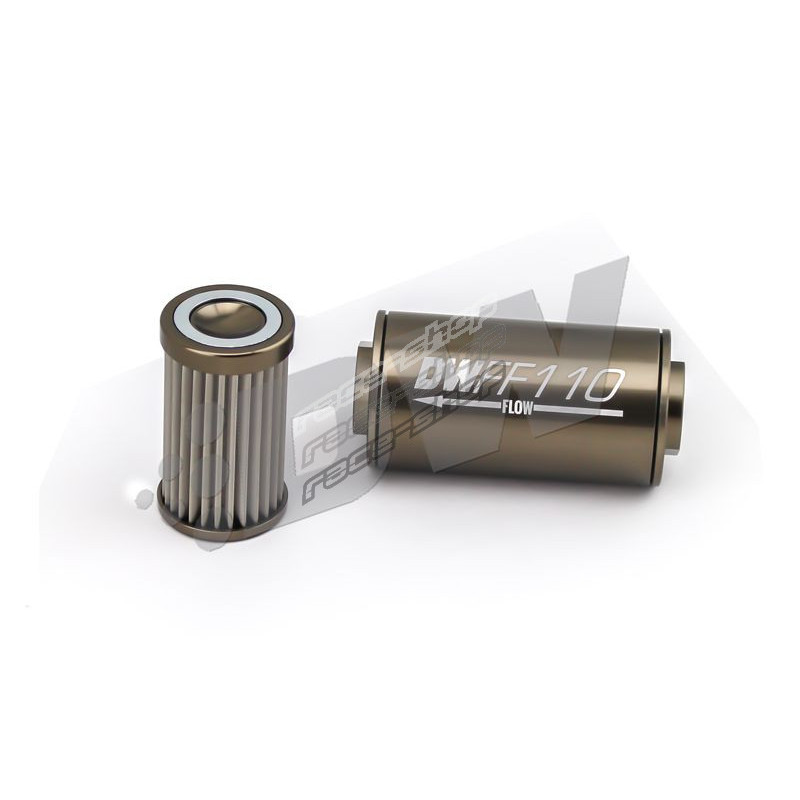

Universal Deatschwerks fuel filter (AN10), 100-micron

It ensures filtration of 100 microns, with an internal stainless steel grid, with a very low-pressure drop (less than 0.1 BAR / 1000 LPH).

Thanks to its dual-stage filtration (magneto-mechanical elements), this product provides excellent protection for injectors and fuel pumps: a 35mm neodymium magnet at the filter inlet traps ferrous contaminants with zero flow restrictions, whereas the internal stainless steel 100-micron mesh captures non-ferrous materials with a very low-pressure drop.

Its compact design (11 cm long, 5 cm diameter) and quality anodized aluminum finish make it easy and pleasing to fit your vehicle. It connects with x2 female -10 fittings.

Pleaste note ! In most configurations, 100-micron filtration is not fine enough to ensure perfect protection of the injectors. Deatschwerks recommends using 10-micron filtration to improve injector life.

Product specifications:

• 100-micron fuel filtration
• 1000 litre/hour maximum fuel rate
• Quality finish
• AN10 female fittings
• Compatible with all fuels, including E85
• Compact design
• Product reference: 8-03-110-100K
