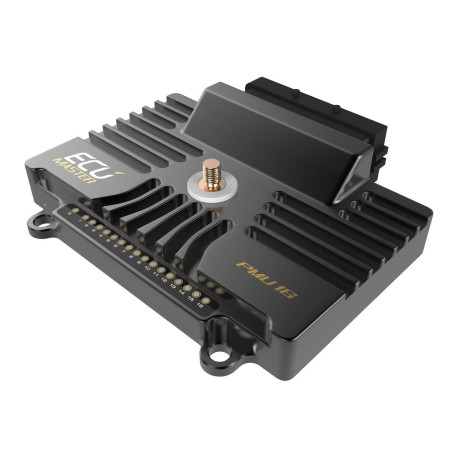

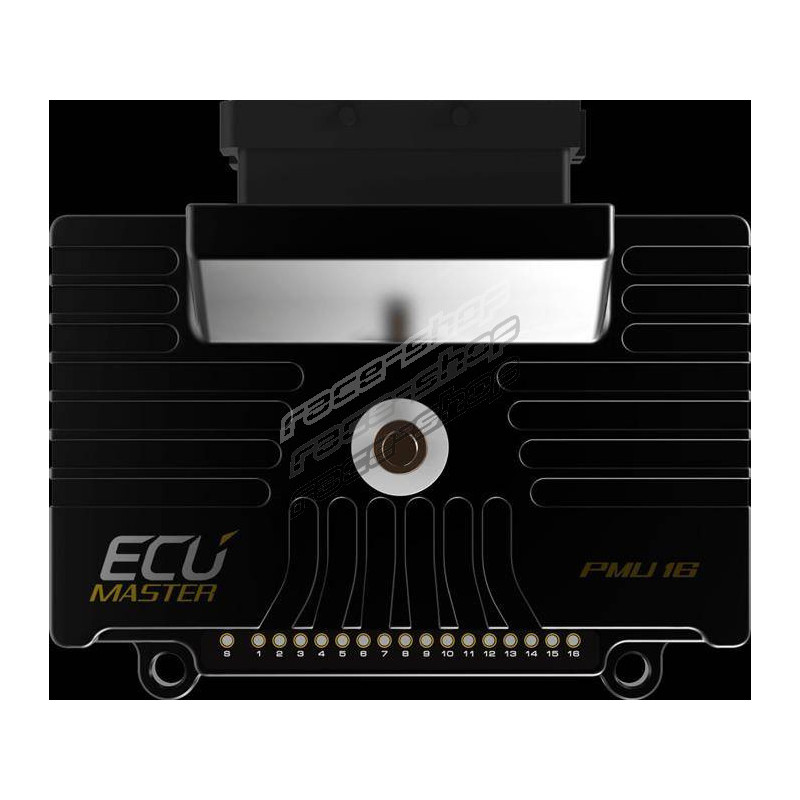

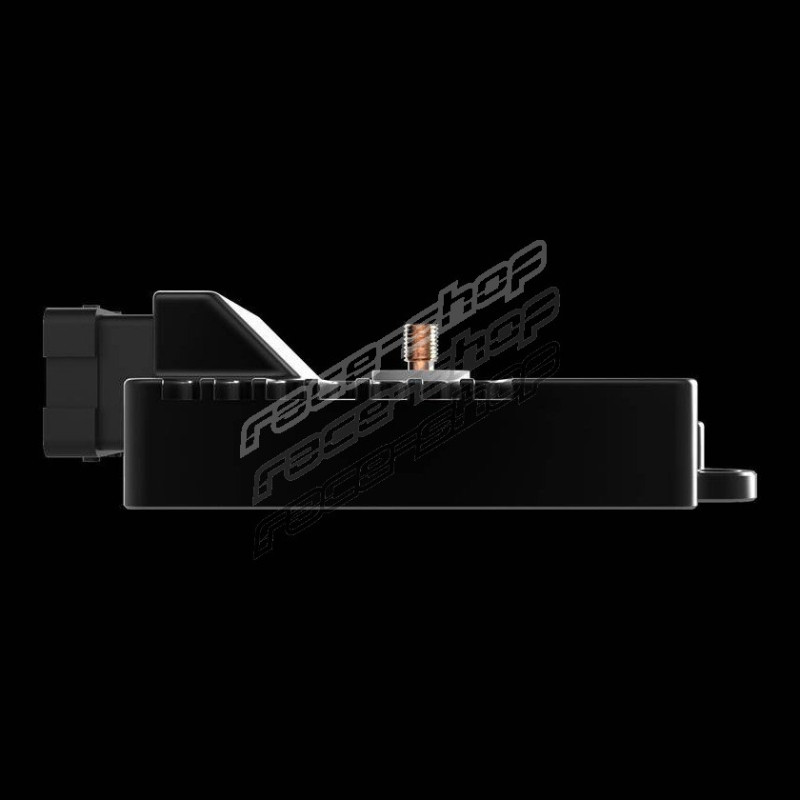

ECU Master

Ecumaster PMU DL

The Power Management Unit Ecumaster PMU (Power Management Unit) is a device that completely eliminates the fuse box and relays in the car installation. Ecumaster PMU-DL in comparison to Ecumaster PMU16 has a built-in highly efficient and also resistant temperature memory for logging data.

Nov izdelek

Dobavljivo po naročilu : 1ks

Najkasneje na vašem domu: 23. 11.

1.506,00 € z DDV

RS-PMUDL

Povpraševanje o izdelku

Povpraševanje o izdelku

Ecumaster PMU DL

Ecumaster PMU DL

The Power Management Unit Ecumaster PMU (Power Management Unit) is a device that completely eliminates the fuse box and relays in the car installation. Ecumaster PMU-DL in comparison to Ecumaster PMU16 has a built-in highly efficient and also resistant temperature memory for logging data.

Vprašanje o tem izdelku pošljite lastniku trgovine.

* Obvezna polja

  ali  Prekliči

Notify me about the stock

Ecumaster PMU DL

Ecumaster PMU DL

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

The Power Management Unit Ecumaster PMU (Power Management Unit) is a device that completely eliminates the fuse box and relays in the car installation. Ecumaster PMU-DL in comparison to Ecumaster PMU16 has a built-in highly efficient and also resistant temperature memory for logging data.

The module is fully programmable and has a number of strategies such as sequential switching on and off of devices, device restart in case of failure or overvoltage, subsequent shutting down in case of voltage drop in a specific order and LEDs indicating the status of individual outputs.

PMU significantly simplifies the car's beam, lowers the weight of the entire installation and protects the car against expensive failures.

OUTPUT:

  • 10 x 25A
  • 6 x 15A
  • Dedicated exit for wipers with parking function

INPUT:

  • 16 x switched

COMMUNICATION:

  • 2 x CAN - including diagnostics, power consumption, input voltage, errors.

OTHERS:

  • Built-in accelerometers with power off function during an accident.
  • LEDs indicating the status of outputs.
  • 256MB of memory (login speed up to 500hz) (only version with built-in datalogger)

PLUG:

  • 1 x 39 pin
  • 1 x M6 stud

DIMENSIONS:

  • 131 x 112 x 32 mm

WEIGHT 345g
