WISEFAB lock kit V2 for BMW E46

Product Features:

• To suit BMW 3 Series E46 including M3
• Over 60° of steering angle
• Corrected roll centre
• Ackermann reduction
• Precise camber adjustment
• "FD Legal" top mounts

This revised version of the lock kit for BMW 3 Series E46 designed by Wisefab now offers the ability to adjust the Ackermann angle (from the knuckle add-on) and also the caster (from the top mount). As well as extending the range of adjustments, this V2 kit features stronger ball joints and is now compatible with both standard and M3 models.

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

Kit contents :

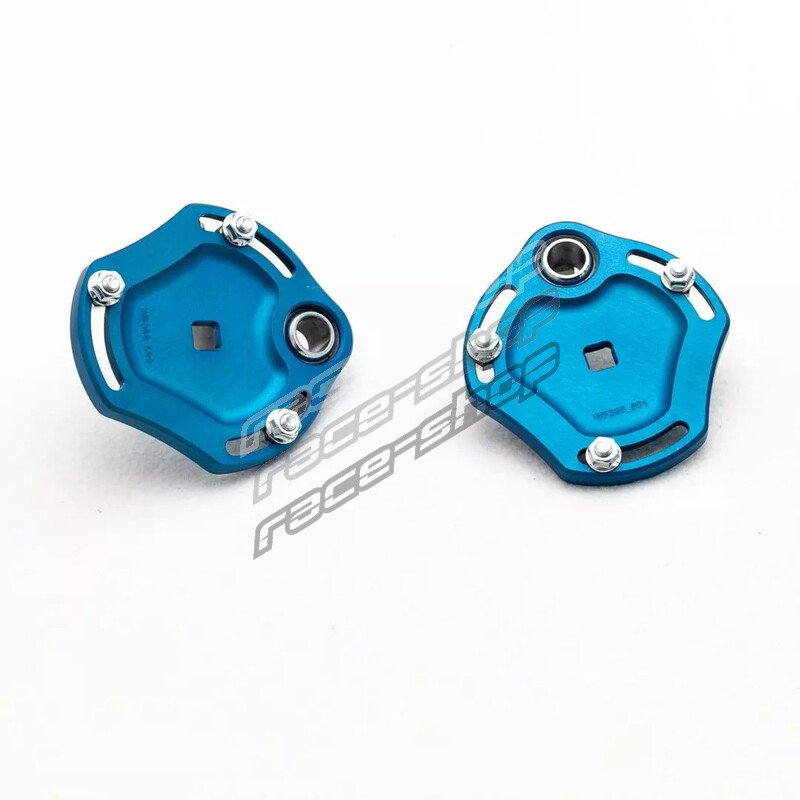

• "FD Legal" top mounts
• Hub knuckle add-ons
• Lightweight lower control arms
• Reinforced lower arms brackets ("lollipops")
• Assembled tie rods
• All required fixings for installation

Manufacturer advice :

• Wisefab recommend a wheel diameter that doesn't exceed 645 mm (235/40R18 for example)
• Wide arches or arch extensions are useful for this kit
• Adjust camber to -5°
• Adjust caster to 4.5°
• Adjust toe in/out to 0°

This kit comes with everything needed for a "plug and play" installation. If you have any questions, do not hesitate to ask!
