TA-Technix hardness adjustable air suspension kit for Volkswagen Golf VIII Typ CD

TA Technix air suspension kit + TA Technix air management system for air suspension / airride

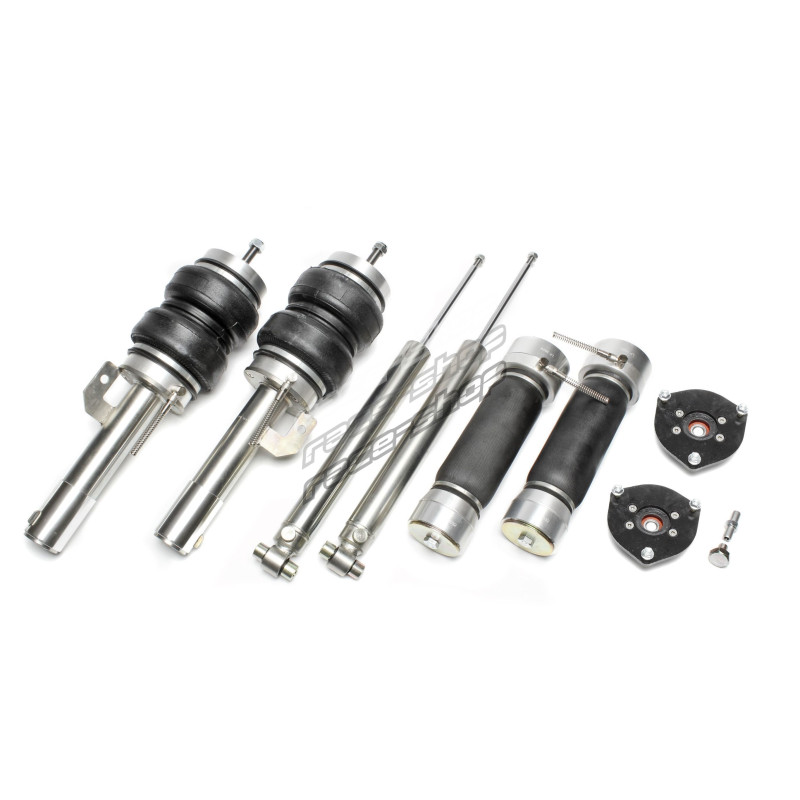

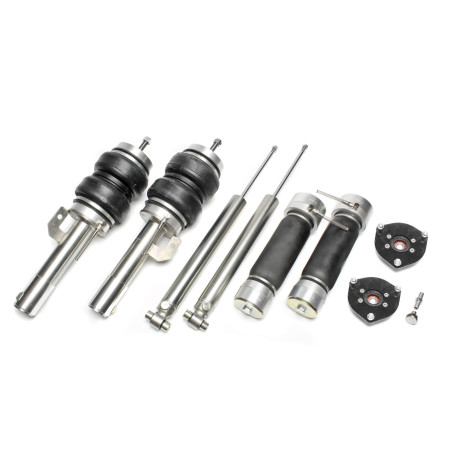

TA Technix hardness adjustable air suspension kit

TA Technix air management system for air suspension / airride
380er Viair compressor
11,5 liters / 3 gallons - black tank
Viair dual-needle indicator, colour black
6mm PU hose, 25m, colour black
hose cutter
4 pcs. 2/2-way valve, 1/4 inch
warning buzzer and LED
opener and closer of pressure switch
electronic set with 3 switches, spade connector, cable, cable zip tie and relay
all Fittings, incl. check valve and safety valve
2 pcs. emergency ventilation valves
safety valve
water separator
leak detection spray
silicone spray
thread sealant

fits for:
Audi A3 inkl. Sportback, type 8Y, year 2019 -
Seat Leon IV, type KL, year 2019 -
Skoda Octavia IV, - Kombi, type NX, year 2019 -
Volkswagen Golf VIII, type CD, year 2019 -
incl. 4-WD model
50mm and 55mm strut
model with multilink rear suspension
maximum front axle load: 1060kg
maximum rear axle load: 920kg

Approval:

Including parts report (§19.3)

Implementation notes:

VA = hardness adjustment - infinitely variable using the adjustment wheel from above,
HA = via adjustment knob on the damper body (compression + rebound at the same time)

Notes:

50mm and 55mm strut diameter
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

140515,139716,139715,139714,141544,140518,140517,140516,140506,140504,140122,140121,140109,139745,139744,139738,139737,139736,139734,140520,140519,140450,140449,139766,139765,139764,139250,139249,139248,142130,141835,141834,141833,141832,141831,141830,141829,141535,141524,140004,140003,139749,141862,141769
