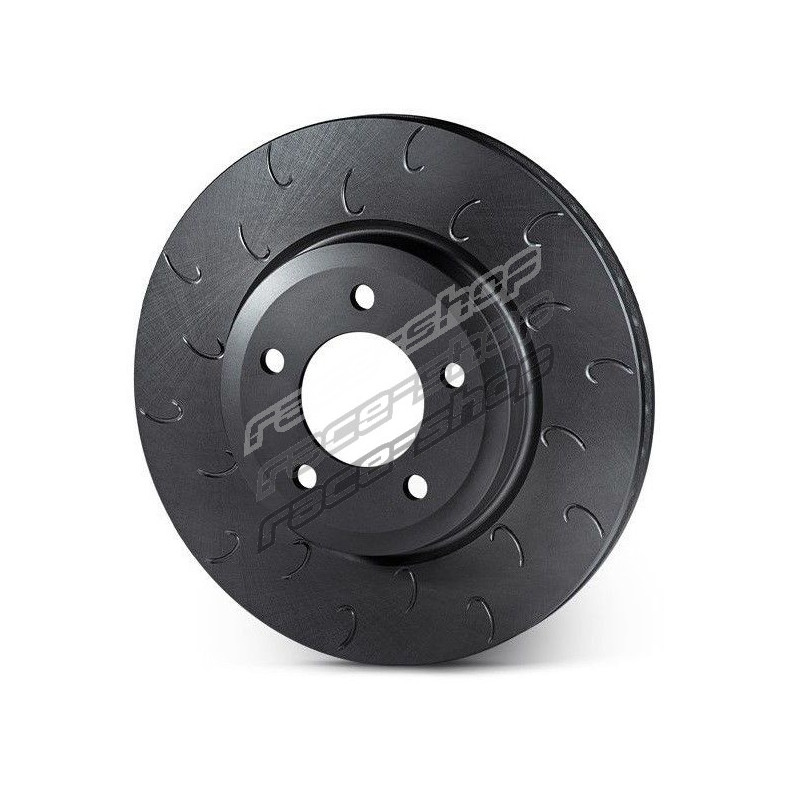

Rear brake discs Rotinger Tuning series 20201, (2psc)

Dimensions:

Diameter: 310mm

Total Height: 48,2mm

Thickness New/ Min: 22 / 20mm

Number of bolt holes: 9

Type: VENTED

Specification: for PR number 1KJ;

OEM: 1K0615601N;

Cross refference:

ATE: 24012202191 , 24112202191

BOSH: 0986479303

Brembo: 09A20010 , 09A20011/p>

Jurid: 562432J

Textar: 92140700

TRW: DF4754

Delphi: BG3975

Zimmermann: 100330900

Application:

AUDI A3 Sportback (8VA) S3 quattro, 206Kw / 280 HP

AUDI A3 Sportback (8PA) S3 quattro, 195Kw / 265 HP

AUDI A3 (8V1) 1.8 TFSI, 132Kw / 180 HP

AUDI A3 Limousine (8VS) 2.0 TDI, 100Kw / 136 HP

AUDI A3 Sportback (8VA) S3 quattro, 221Kw / 300 HP

AUDI A3 (8P1) 2.0 TDI quattro, 103Kw / 140 HP

AUDI A3 (8P1) 2.0 TFSI quattro, 147Kw / 200 HP

AUDI A3 Sportback (8PA) 2.0 TDI quattro, 125Kw / 170 HP

AUDI A3 Limousine (8VS) 2.0 TDI, 110Kw / 150 HP

AUDI A3 Sportback (8VA) 1.8 TFSI, 132Kw / 180 HP

AUDI A3 (8V1) 2.0 TDI quattro, 135Kw / 184 HP

AUDI A3 (8V1) S3 quattro, 206Kw / 280 HP

AUDI A3 Sportback (8VA) 2.0 TDI, 135Kw / 184 HP

AUDI A3 Sportback (8PA) S3 quattro, 188Kw / 256 HP

AUDI A3 (8V1) 1.2 TFSI, 77Kw / 105 HP

AUDI A3 Limousine (8VS) 1.8 TFSI, 132Kw / 180 HP

AUDI A3 Limousine (8VS) 1.4 TFSI, 103Kw / 140 HP

AUDI A3 (8V1) 2.0 TDI, 135Kw / 184 HP

AUDI A3 Sportback (8PA) 2.0 TFSI quattro, 147Kw / 200 HP

AUDI A3 (8V1) 2.0 TDI, 81Kw / 110 HP

AUDI A3 Sportback (8PA) 2.0 TDI quattro, 103Kw / 140 HP

AUDI A3 Sportback (8VA) 2.0 TDI, 105Kw / 143 HP

AUDI A3 Sportback (8PA) RS3 quattro, 250Kw / 340 HP

AUDI A3 (8V1) 1.4 TFSI, 103Kw / 140 HP

AUDI A3 Sportback (8VA) 1.8 TFSI quattro, 132Kw / 180 HP

AUDI A3 Sportback (8VA) 2.0 TDI, 110Kw / 150 HP

AUDI A3 (8P1) S3 quattro, 195Kw / 265 HP

AUDI A3 Sportback (8VA) 2.0 TDI, 100Kw / 136 HP

AUDI A3 (8V1) 2.0 TDI, 110Kw / 150 HP

AUDI A3 (8V1) 1.6 TDI, 77Kw / 105 HP

AUDI Q3 (8U) RS 2.5 quattro, 228Kw / 310 HP

AUDI A3 (8P1) 2.0 TDI 16V quattro, 103Kw / 140 HP

AUDI A3 Sportback (8VA) 1.4 TFSI, 103Kw / 140 HP

AUDI A3 (8P1) 1.8 TFSI quattro, 118Kw / 160 HP

AUDI A3 (8P1) S3 quattro, 188Kw / 256 HP

AUDI A3 Sportback (8VA) 2.0 TDI quattro, 110Kw / 150 HP

AUDI A3 (8P1) 3.2 V6 quattro, 184Kw / 250 HP

AUDI A3 Sportback (8VA) 1.6 TDI, 77Kw / 105 HP

AUDI A3 (8V1) 1.4 TFSI, 90Kw / 122 HP

AUDI A3 Limousine (8VS) 2.0 TDI, 81Kw / 110 HP

AUDI A3 Sportback (8VA) 2.0 TDI quattro, 135Kw / 184 HP

AUDI A3 Sportback (8PA) 1.8 TFSI quattro, 118Kw / 160 HP

AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro, 103Kw / 140 HP

AUDI A3 (8V1) S3 quattro, 221Kw / 300 HP

AUDI A3 Sportback (8VA) 1.2 TFSI, 77Kw / 105 HP

AUDI A3 (8P1) 2.0 TDI quattro, 125Kw / 170 HP

AUDI A3 Sportback (8VA) 1.4 TFSI, 90Kw / 122 HP

AUDI A3 Sportback (8PA) 3.2 V6 quattro, 184Kw / 250 HP

AUDI A3 (8V1) 2.0 TDI, 100Kw / 136 HP

AUDI A3 (8V1) 2.0 TDI, 105Kw / 143 HP

SKODA SUPERB Estate (3T5) 1.8 TSI 4x4, 112Kw / 152 HP

SKODA SUPERB Estate (3T5) 2.0 TDI 16V 4x4, 103Kw / 140 HP

SKODA SUPERB (3T4) 2.0 TDI 4x4, 125Kw / 170 HP

SKODA SUPERB Estate (3T5) 2.0 TDI 4x4, 125Kw / 170 HP

SKODA SUPERB Estate (3T5) 3.6 V6 4x4, 191Kw / 260 HP

SKODA SUPERB Estate (3T5) 1.8 TSI 4x4, 118Kw / 160 HP

SKODA SUPERB (3T4) 2.0 TDI 16V 4x4, 103Kw / 140 HP

SKODA SUPERB (3T4) 1.8 TSI 4x4, 118Kw / 160 HP

SKODA SUPERB (3T4) 1.8 TSI 4x4, 112Kw / 152 HP

SKODA SUPERB (3T4) 3.6 V6 4x4, 191Kw / 260 HP

VW PASSAT Variant (365) 1.4 TSI, 90Kw / 122 HP

VW PASSAT Variant (365) 2.0 TDI, 125Kw / 170 HP

VW PASSAT Variant (365) 1.4 TSI EcoFuel, 110Kw / 150 HP

VW PASSAT (362) 1.8 TSI, 112Kw / 152 HP

VW PASSAT (362) 1.8 TSI, 118Kw / 160 HP

VW PASSAT ALLTRACK (365) 2.0 TDI, 103Kw / 140 HP

VW PASSAT (3C2) 3.2 FSI 4motion, 184Kw / 250 HP

VW CC (358) 1.8 TSI, 112Kw / 152 HP

VW GOLF VI (5K1) 2.0 R 4motion, 195Kw / 265 HP

VW SCIROCCO (137) 2.0 TDI, 130Kw / 177 HP

VW GOLF VII (5G1) 2.0 GTI, 162Kw / 220 HP

VW PASSAT Variant (365) 2.0 TDI 4motion, 103Kw / 140 HP

VW GOLF VI (5K1) 2.0 R 4motion, 199Kw / 270 HP

VW GOLF VI (5K1) 2.0 TDI, 125Kw / 170 HP

VW PASSAT (362) 1.4 TSI EcoFuel, 110Kw / 150 HP

VW PASSAT Variant (365) 2.0 TDI 4motion, 125Kw / 170 HP

VW GOLF VII (5G1) 1.2 TSI, 63Kw / 86 HP

VW PASSAT (362) 2.0 TDI, 100Kw / 136 HP

VW GOLF VI (5K1) 1.8 TSI, 118Kw / 160 HP

VW GOLF VII (5G1) 1.6 TDI 4motion, 77Kw / 105 HP

VW PASSAT (362) 2.0 TDI, 130Kw / 177 HP

VW CC (358) 2.0 TDI 4motion, 125Kw / 170 HP

VW SCIROCCO (137) 2.0 R, 195Kw / 265 HP

VW PASSAT Variant (365) 2.0 TDI, 130Kw / 177 HP

VW GOLF VII (5G1) 1.6 TDI, 77Kw / 105 HP

VW PASSAT ALLTRACK (365) 1.8 TSI, 118Kw / 160 HP

VW PASSAT (362) 1.4 TSI, 118Kw / 160 HP

VW GOLF VII (5G1) 2.0 TDI, 81Kw / 110 HP

VW CC (358) 1.4 TSI, 118Kw / 160 HP

VW PASSAT Variant (3C5) 3.2 FSI 4motion, 184Kw / 250 HP

VW GOLF VII (5G1) 2.0 GTD, 135Kw / 184 HP

VW PASSAT ALLTRACK (365) 1.8 TSI, 112Kw / 152 HP

VW PASSAT (362) 2.0 TSI, 155Kw / 210 HP

VW PASSAT (362) 3.6 FSI 4motion, 220Kw / 300 HP

VW PASSAT ALLTRACK (365) 2.0 TDI 4motion, 125Kw / 170 HP

VW GOLF VII (5G1) 1.6 TDI 4motion, 81Kw / 110 HP

VW CC (358) 2.0 TDI 4motion, 103Kw / 140 HP

VW PASSAT ALLTRACK (365) 2.0 TDI 4motion, 103Kw / 140 HP

VW PASSAT (362) 2.0 TDI 4motion, 130Kw / 177 HP

VW EOS (1F7, 1F8) 3.6 V6, 191Kw / 260 HP

VW PASSAT (362) 2.0 TDI, 103Kw / 140 HP

VW PASSAT Variant (365) 2.0 TDI, 100Kw / 136 HP

VW GOLF VII (5G1) 1.2 TSI, 77Kw / 105 HP

VW GOLF VII (5G1) 1.6 TDI, 81Kw / 110 HP

VW PASSAT (362) 2.0 TDI 4motion, 125Kw / 170 HP

VW PASSAT (362) 1.4 TSI, 90Kw / 122 HP

VW CC (358) 2.0 TDI, 103Kw / 140 HP

VW PASSAT Variant (365) 3.6 FSI 4motion, 220Kw / 300 HP

VW CC (358) 1.8 TSI, 118Kw / 160 HP

VW PASSAT (3C2) 3.6 R36 4motion, 220Kw / 300 HP

VW PASSAT CC (357) 3.6 FSI 4motion, 220Kw / 300 HP

VW CC (358) 2.0 TSI, 155Kw / 210 HP

VW CC (358) 2.0 TDI, 125Kw / 170 HP

VW GOLF VI Convertible (517) 2.0 R, 195Kw / 265 HP

VW PASSAT Variant (365) 1.4 TSI, 118Kw / 160 HP

VW PASSAT CC (357) 2.0 TDI, 103Kw / 140 HP

VW CC (358) 3.6 FSI 4motion, 220Kw / 300 HP

VW PASSAT Variant (365) 1.6 TDI, 77Kw / 105 HP

VW GOLF VII (5G1) 2.0 TDI, 110Kw / 150 HP

VW PASSAT (362) 2.0 TDI, 125Kw / 170 HP

VW CC (358) 2.0 TDI, 100Kw / 136 HP

VW PASSAT CC (357) 1.4 TSI MultiFuel, 118Kw / 160 HP

VW GOLF VI (5K1) 2.0 GTi, 173Kw / 235 HP

VW PASSAT ALLTRACK (365) 2.0 TDI 4motion, 130Kw / 177 HP

VW GOLF VII (5G1) 1.4 TSI E85-100, 90Kw / 122 HP

VW PASSAT (362) 2.0 TDI 4motion, 103Kw / 140 HP

VW CC (358) 2.0 TDI, 130Kw / 177 HP

VW GOLF VI (5K1) 2.0 R 4motion, 188Kw / 256 HP

VW GOLF VII (5G1) 2.0 GTI, 169Kw / 230 HP

VW PASSAT Variant (3C5) 3.6 R36 4motion, 220Kw / 300 HP

VW EOS (1F7, 1F8) 2.0 TFSI, 147Kw / 200 HP

VW GOLF VII (5G1) 1.4 TSI, 90Kw / 122 HP

VW PASSAT Variant (365) 2.0 TSI, 155Kw / 210 HP

VW CC (358) 2.0 TDI 4motion, 130Kw / 177 HP

VW PASSAT (362) 1.4 TSI MultiFuel, 118Kw / 160 HP

VW PASSAT Variant (365) 1.4 TSI MultiFuel, 118Kw / 160 HP

VW PASSAT Variant (365) 2.0 TDI, 103Kw / 140 HP

VW GOLF VII (5G1) 1.6 TDI, 66Kw / 90 HP

VW PASSAT Variant (365) 2.0 TDI 4motion, 130Kw / 177 HP

VW GOLF VI (5K1) 1.4 TSI, 118Kw / 160 HP

VW EOS (1F7, 1F8) 3.2 V6, 184Kw / 250 HP

VW GOLF VII (5G1) 2.0 TDI 4motion, 110Kw / 150 HP

VW PASSAT (362) 1.6 TDI, 77Kw / 105 HP

VW PASSAT Variant (365) 1.8 TSI, 118Kw / 160 HP

VW PASSAT ALLTRACK (365) 2.0 TSI 4motion, 155Kw / 210 HP

VW GOLF V (1K1) 3.2 R32 4motion, 184Kw / 250 HP

VW PASSAT Variant (365) 1.8 TSI, 112Kw / 152 HP

VW SCIROCCO (137) 2.0 R, 188Kw / 256 HP

VW GOLF VII (5G1) 1.4 TSI, 103Kw / 140 HP

Rotinger brake discs are the result of advanced cutting technology. High quality and attractive design attracts the attention of all tuning enthusiasts. Efficient design ensures reduced braking distance, braking gas emissions and improves cooling properties. Rotinger offers a wide range of brake discs for most cars. Depending on the personal choice, the customer can choose from up to five possible types of brake discs. Simple (without drilling and grooving), Slotted, Drilled and combinations thereof. Attractive slots were designed in a carefully thoughtful way. Their design ensures efficient brake pads cleaning and less turbulence of the braking dust. The original Rotinger brake disc is the result of years of research and under no circumstances can it be copied to other brake discs. Each new pattern is tested under extreme conditions in which its quality and operational safety are confirmed. Offering 1400 kinds of brake discs for more than 95% of the cars on the market. The entire manufacturing process meets all safety standards and quality standards. ISO / TS 16949: 2009, ISO 9001: 2008, ISO 14001: 2004 certificates confirm the quality of the products and the Rotinger process. Rotinger offers Tuning series and High performance brake discs. Both types can be ordered in Graphite Line design and basic or drilled design. The

Tuning series offers excellent anti-corrosion protection combined with an attractive design that will appeal to every fan of sports brake discs. Effective styling significantly reduces the braking distance and greatly helps to drain gases when braking. Ventilation areas ensure optimal cooling of the brake disc.

Rotinger High Performance, brake discs enriched with carbon compounds and innovative anti-corrosion protection. Increased carbon content ensures better thermal distribution, lower temperature changes and resistance to deformation of the disc under heavy braking. Thermal strain is one of the most common problems of today's vehicles, which leads to unpleasant vibrations during braking. Unique design combined with a carbon structure ensures high braking performance under all conditions
