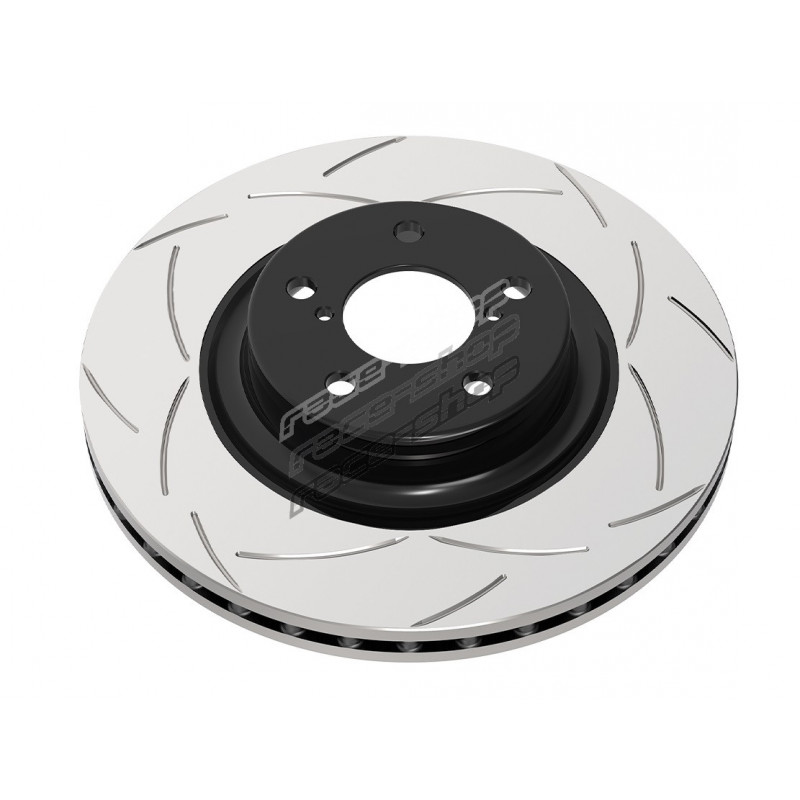

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 266
Disc Vent: Solid
Number of Holes: 5
Inner Diameter [mm]: 58
Minimum Thickness [mm]: 8,5
Thickness [mm]: 10
Height [mm]: 67.5
Pitch Circle [mm]: 100
Stage: Stage 2

Suitable for:

Rear - SUBARU/Forester/2.0 (1997-2002) Brake Pads: DB1379, Rear - SUBARU/Forester/2.0 (2005-2008) Brake Pads: DB1379, Rear - SUBARU/Forester/2.5 (2003-2004) Brake Pads: DB1379, Rear - SUBARU/Forester/2.5 (2004-2008) Brake Pads: DB1672, Rear - SUBARU/Forester/2.5 Turbo (2004-2008) Brake Pads: DB1672, Rear - SUBARU/Forester SF5/2.0 Turbo (1996-2003) Brake Pads: DB1379, Rear - SUBARU/Forester SG5/2.0 Turbo (2002-2003) Brake Pads: DB1379, Rear - SUBARU/Forester SG5/2.0 Turbo (2003-2008) Brake Pads: DB1672, Rear - SUBARU/Impreza/1.6 95BHP (2000-2002) Brake Pads: DB1186, Rear - SUBARU/Impreza/1.6 95BHP (2002-2005) , Rear - SUBARU/Impreza/1.8 103BHP ABS (1993-1997) Brake Pads: DB1186, Rear - SUBARU/Impreza/2.0 120BHP (1995-1996) Brake Pads: DB1186, Rear - SUBARU/Impreza/2.0 120BHP (1996-2001) Brake Pads: DB1186, Rear - SUBARU/Impreza/2.0 125BHP (2000-2002) Brake Pads: DB1379, Rear - SUBARU/Impreza/2.0 125BHP (2002-2007) Brake Pads: DB1672, Rear - SUBARU/Impreza/2.0 R 160BHP (2005-2008) Brake Pads: DB1672, Rear - SUBARU/Impreza/2.0 Turbo (1994-1996) , Rear - SUBARU/Impreza/2.0 Turbo (1996-1998) , Rear - SUBARU/Impreza Sport/2.0 120BHP (1996-1998) Brake Pads: DB1186, Rear - SUBARU/Impreza Sport/2.0 120BHP (1998-2001) Brake Pads: DB1186, Rear - SUBARU/Impreza Sport/2.0 125BHP (2000-2002) Brake Pads: DB1379, Rear - SUBARU/Impreza Sport/2.0 125BHP (2002-2007) Brake Pads: DB1672, Rear - SUBARU/Legacy BC5/2.0 (1992-1994) , Rear - SUBARU/Legacy BC7/2.2 (1990-1994) Brake Pads: DB1186, Rear - SUBARU/Legacy BD5/2.0 (1994-1996) Brake Pads: DB1186, Rear - SUBARU/Legacy BD5/2.0 (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy BD7/2.2 (1994-1996) Brake Pads: DB1186, Rear - SUBARU/Legacy BD7/2.2 (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy BD9/2.5 (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy BD9/2.5 150BHP (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy BF5/2.0 (1992-1994) , Rear - SUBARU/Legacy BF7/2.2 (1990-1994) Brake Pads: DB1186, Rear - SUBARU/Legacy BG5/2.0 (1994-1996) Brake Pads: DB1186, Rear - SUBARU/Legacy BG5/2.0 (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy BG7/2.2 (1994-1996) Brake Pads: DB1186, Rear - SUBARU/Legacy BG7/2.2 (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy BG9/2.5 150BHP (1996-1999) Brake Pads: DB1186, Rear - SUBARU/Legacy Outback/2.5 150BHP (1996-1999) Brake Pads: DB1186,
