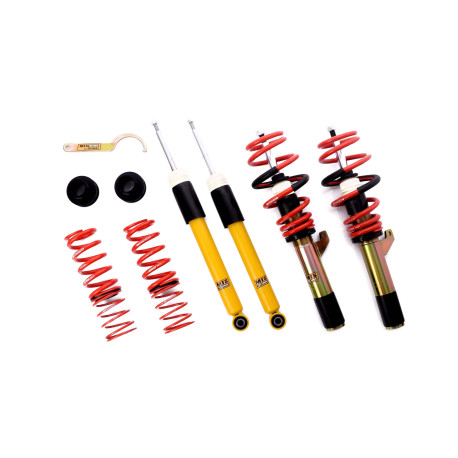

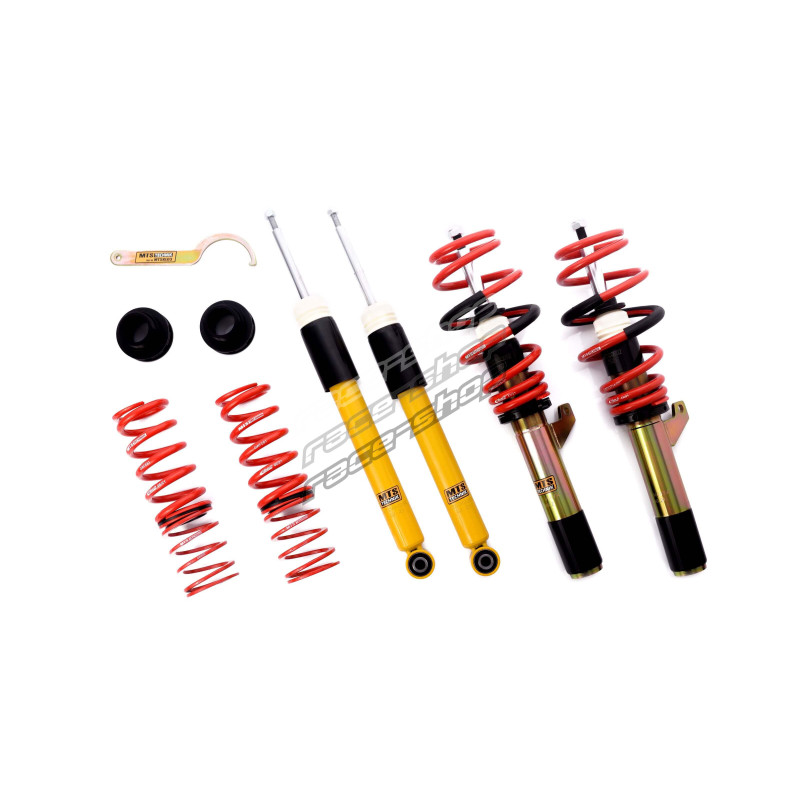

MTS STANCE SERIES coilover kit for Volkswagen BEETLE (5C1/5C2) 04/11 - 07/19 (Gold)

Thanks to increased stiffness compared to the Street series, it allows for precise adjustment of the vehicle height and minimal wheel-arch distance. Dedicated to users who value increased suspension stiffness and the ability to lower the vehicle further.

MTS Technik Coilover Suspension - the perfect choice for drivers who appreciate the flexibility and the ability to adjust the suspension altitudes depending on your preference and road conditions. Stiffening of the suspension makes the car better to drive, more predictable and more secure.

Optimum alignment of the MTS Technik coilover suspension components causes recognition of the growing number of users. Large rims in the summer, smaller in the winter - thanks to MTS Technik coilover kits You can adjust the ride height to Your needs.

Product Information:

• Suitable for: Volkswagen BEETLE (5C1/5C2)
• Type: 5C1, 5C2
• Engine: 1.2 TSI / 1.2 TSI 16V / 1.4 TSI / 1.6 TDI / 2.0 R / 2.0 TDI / 2.0 TFSI / 2.0 TSI / 2.5
• Production year: 04/11 - 07/19
• TÜV certificate: yes
• Maximum loading on front axle: -1090 kg
• Maximum loading on rear axle: -880 kg
• Lowering (front / rear axle): 25 - 50 mm / 25 - 50 mm
• Housing: Gold treatment
• Camberplates front: not included /
• Camberplates rear: not included

Additional information:

3 - Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear)., 7 - If the vehicle is equipped with the AMR System (Audi Magnetic Ride) - the system has to be deactivated. Suitable drivers are available only on request!, 21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower., 24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers., 25 - In some cases it might be necessary to dismount the rear adjustment to achieve the maximum lowering., 35 - Rear thread adjustment block is mounted on the top., 52 - Only suitable for multilink suspension., 73 - For easier height adjustment, we recommend removing the rear adjustment, changing the position of the spring plate and reinstalling the adjustment on the car.

Extra notes: multilink rear suspension
