Garrett 926432-5002S Turbocharger GT Series GT1752S

Garrett GT1752S performance turbocharger.

The GARRETT 926432-5002S Turbocharger Kit offers a direct-fit, OEM-certified upgrade for the Ford Bronco and Ranger Raptor 3.0L V6 Twin Turbo engines from 2022 onwards.

This dual turbocharger assembly (LH & RH) includes calibrated electronic actuators and is engineered to deliver increased airflow and higher performance without compromising durability.

Certified under CARB D-871-4, this system is ideal for enthusiasts seeking improved output and response while maintaining emissions compliance.

Specifications

• Frame: GT17
• Bearing: journal bearing
• Max shaft speed: 214 krpm
• Power: up to 250 HP

Features

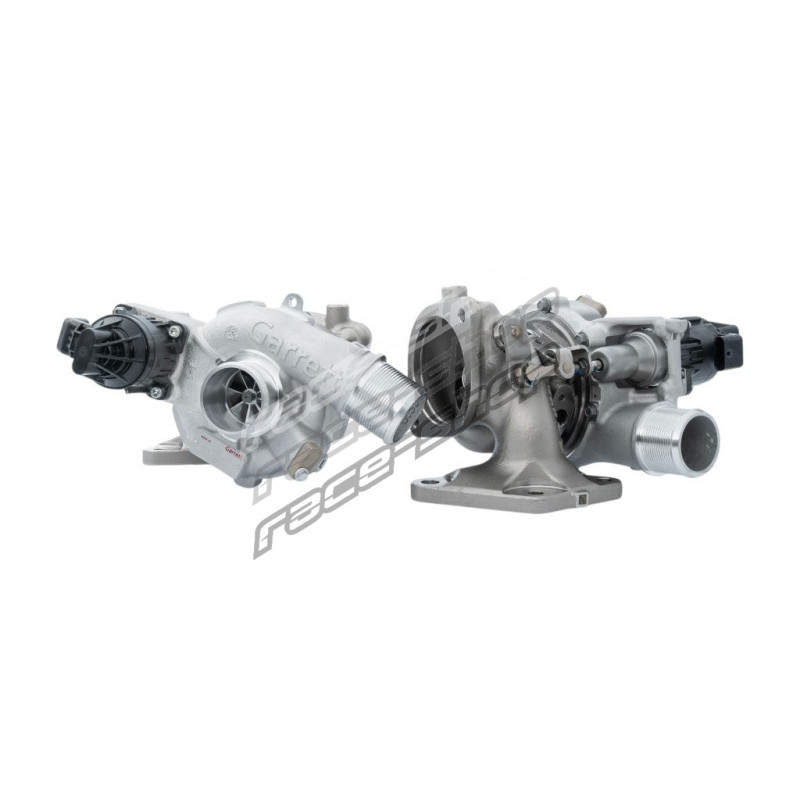

• Complete left and right turbo assemblies with pre-calibrated electronic actuators

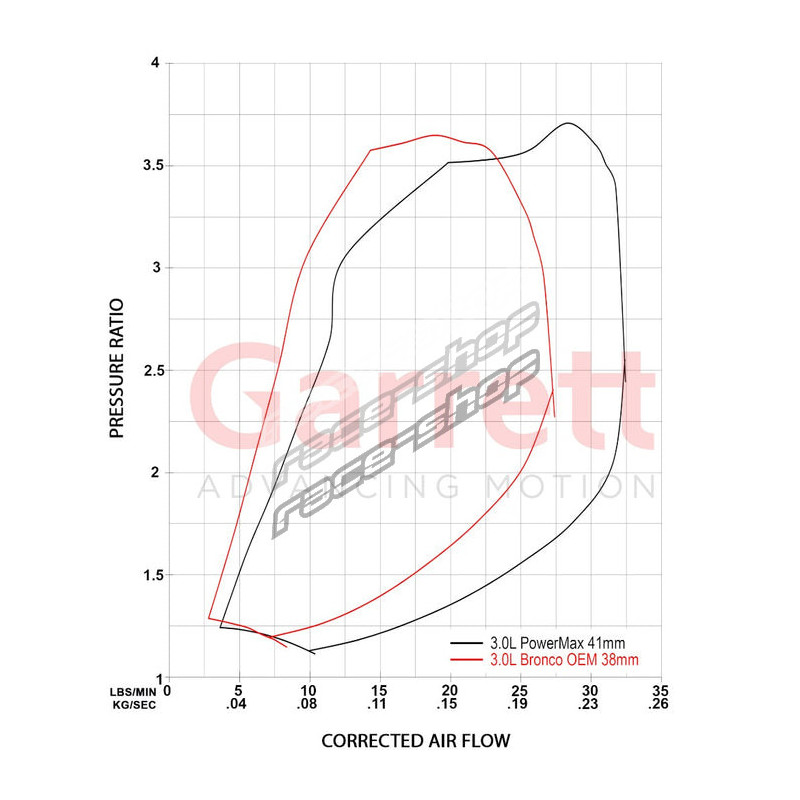

• 18% increase in compressor flow and 6% increase in turbine flow compared to stock
• OEM turbocharger for the Ford 3.0L application with 41 mm compressor inducer
• High-grade stainless steel turbine housing rated to withstand up to 950°C
• Integrated, machined sensor port for turbo shaft speed monitoring
• Supports output up to 640 BHP (477 kW)
• Compatible with G-Smart Bluetooth Module or analog speed monitoring kits
• Specifications:
