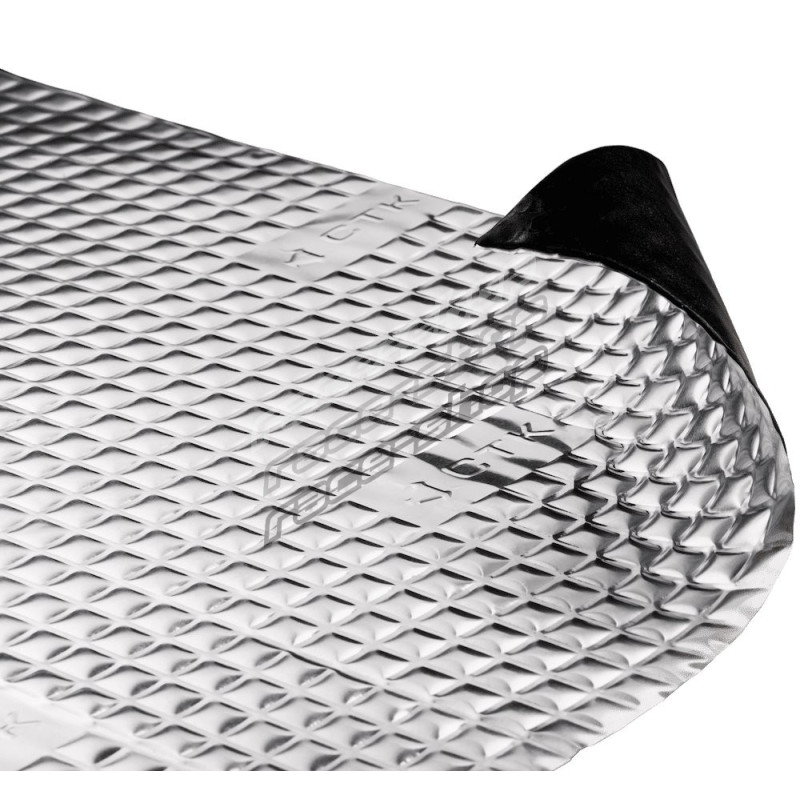

Vibration absorbing material CTK PRACTIC 370x500, 2mm

CTK materials from the Practic range are a good combination of high quality and good damping characteristics, while maintaining an attractive price. This makes the products of this series extensively used in various fields and industries. In a comparable price range, CTK Practic mats have one of the highest values of mechanical loss factor (MLF), which determines the ability of a material to effectively dampen vibrations. These materials are designed for basic, inexpensive sound, vibration and resonance absorption of acoustic elements of the car body (doors, floor, roof, trunk, engine hood, upholstery elements, etc.). They can also be used indoors, for example, for silencers and industrial equipment, computer equipment, air conditioning equipment, household appliances and even tin sinks, shower trays and bathtubs.

CTK Practic materials are also well suited for work aimed at basic improvement in the acoustics of the car when fitting and using car audio equipment, as well as when refitting or upgrading sound insulation, for example, after repairing vehicle body components. The product is non- toxic, waterproof, does not absorb moisture and does not decompose under the influence of weather conditions. It has anti-corrosion and sealing properties.

CTK Practic materials are self-adhesive, very flexible and easy to apply on flat or complex shaped surfaces. They can be installed in a wide range of temperatures without the need for heating, however, maximum operating comfort is achieved at ambient temperatures above +10oC. The surface must be dry, clean and very well degreased. In order to maximize the damping properties, the mat must be firmly pressed after sticking, for example, using a roller, to adhere tightly to the entire surface of the damping surface, to avoid the formation of air gaps. A self-adhesive butyl layer has self-vulcanization properties due to which, after some time, the adhesion of the material to the surface increases even more, creating a seamless whole.

Technical data

• Size of sheets: 370 x 500 mm
• Thickness: 2.0mm
• Foil thickness: 60 μm
• MLF: 0.25
• Weight per 1 sheet: 0.64kg.
• Operating temperature: -40° to +150C
• Recommended application temperature: above +10°C
• Made in USA

Where to use?
Door, Trunks, Floor, Ceiling, Wheel arches outside, Wheel arches inside.
