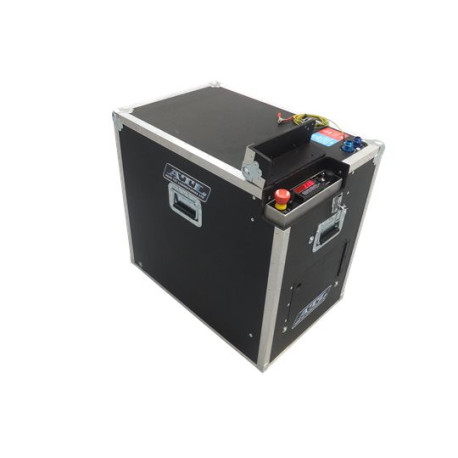

ATL Refuelling Bowser - 100 Litre

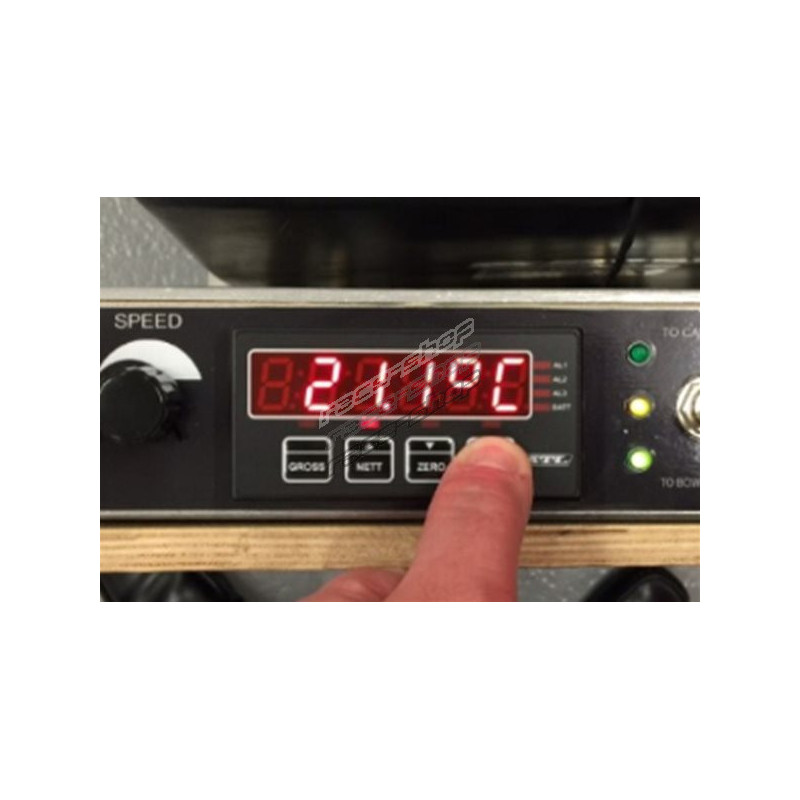

The bowser is fitted with an FIA FT3 safety cell and is a sealed ATEX compliant fuel system. It includes an integrated fuel weight display, and ensures no fumes or vapour at any time.

Such systems are mandatory for garage refuelling in the WEC, ELMS and many more championships.

Currently in use across the world. Fittings can be supplied to suit any application.

Many optional extras available. Please note that the temperature sensor and data logger must be specified and fitted during manufacture.

Specification:

• 100 Litre Fuel Capacity
• Internal 12v Battery with Anderson Plug
• Pump 35 litres per minute
• (2) Ø7/8" UNF Female Fittings (please note that the bowser is supplied without hoses)
• Designed to fit underneath workbench (100L)
• Programmable auto-pump shut-off feature

Safety Features:

• Automatic shut down when car tank is full
• Automatic shut down when bowser tank is full
• Automatic shut down if system detects excess pressure
• Only operates on 'dead man' push button

Optional extras:

• Temperature Sensor (RE-AC-184)
• Data Logger (RE-AC-183)

! NOTE: All optional extras need to be purchased separately !
