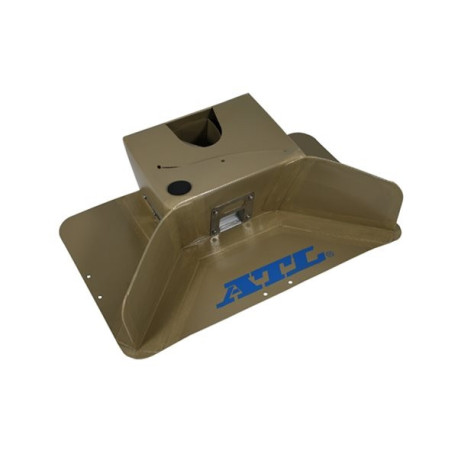

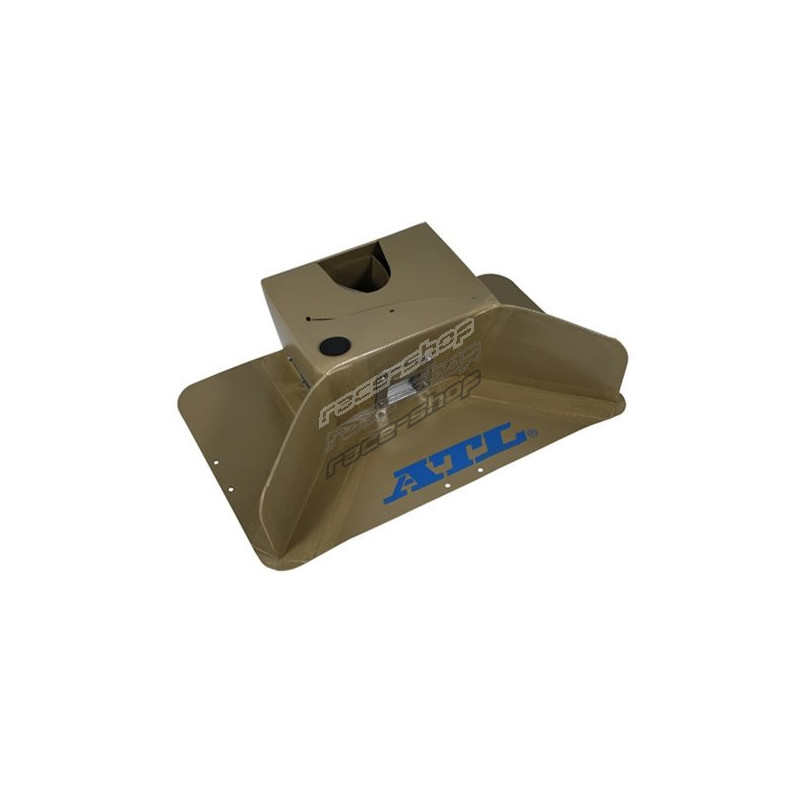

ATL Internal Collector System with a single 60mm pump mount

Manufactured with 1 pump mount to suit a Bosch pump.

Product specification:

• Ø60mm pump mount to suit a Bosch HP pump

The ATL Internal Collector range is manufactured from ATL’s lightweight Nylon reinforced material that complies with FIA/FT3-1999 specification. Each item in the range features a 3 litre capacity whilst also containing 3 x ATL specification one-way trap doors and 2 x Guiding Vanes to optimise fuel scavenge under cornering and acceleration forces. Where applicable, there is also a small strap on the floor of the collector to keep the pick-up sock filter from touching the Trap Doors. The large base of the ATL Internal Collector allows the in-tank foam baffle to be cut and shaped, to keep the Collector in place within the fuel cell.
