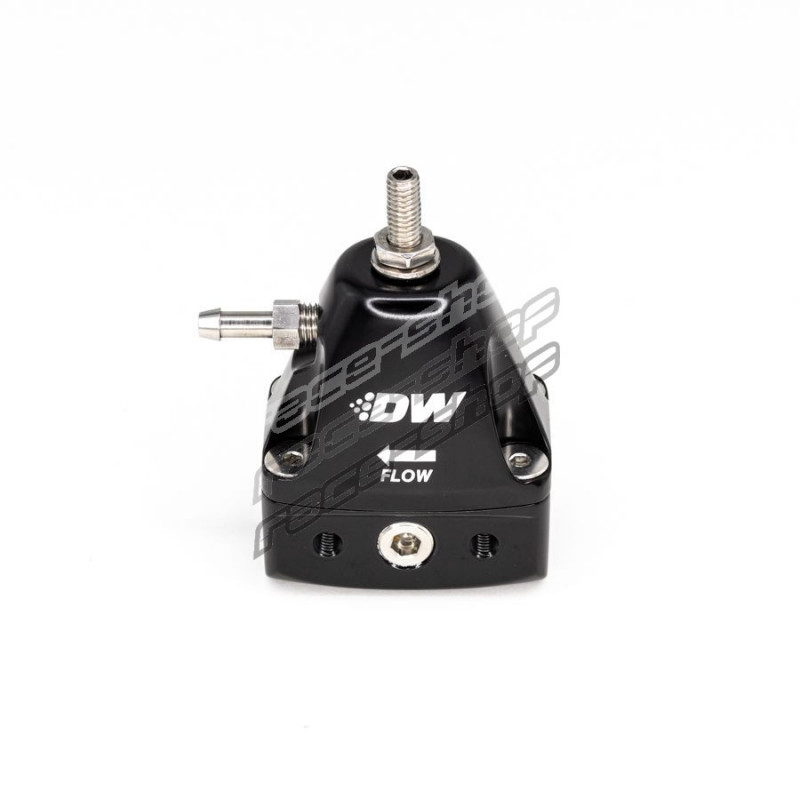

Deatschwerks DWR1000iL Compact E85 fuel pressure regulator

Manufactured in the USA by Deatschwerks, it's made from forged aluminum and can be regulated with a high level of precision from 2 to 7 bar, up to a flow rate of 500 liters per hour. Using -6 AN and -8 AN fittings, you can adapt it to any fuel system and use its 1/8" NPT port for connecting a pressure gauge.

The regulator uses a 36 mm nitrile diaphragm, which is highly resistant to wear and compatible with all types of fuel: gasoline, ethanol, E85, methanol, etc...

It comes in a high-quality, black anodized finish.

Product specifications:

• Ultra-compact size for easy fitment
• 60 mm height, Ø50 mm
• Controls fuel up to 7 bars with precision and stability
• Supports a flow rate of up to 500 liters/hour
• Inline AN6 inlet and outlet (Dash 6)
• 1/8" NPT port for a pressure gauge
• Ø36 mm nitrile diaphragm
• Compatible with all fuels, including E85
• Product reference: 6-1001-FRB
• Anodised black finish
