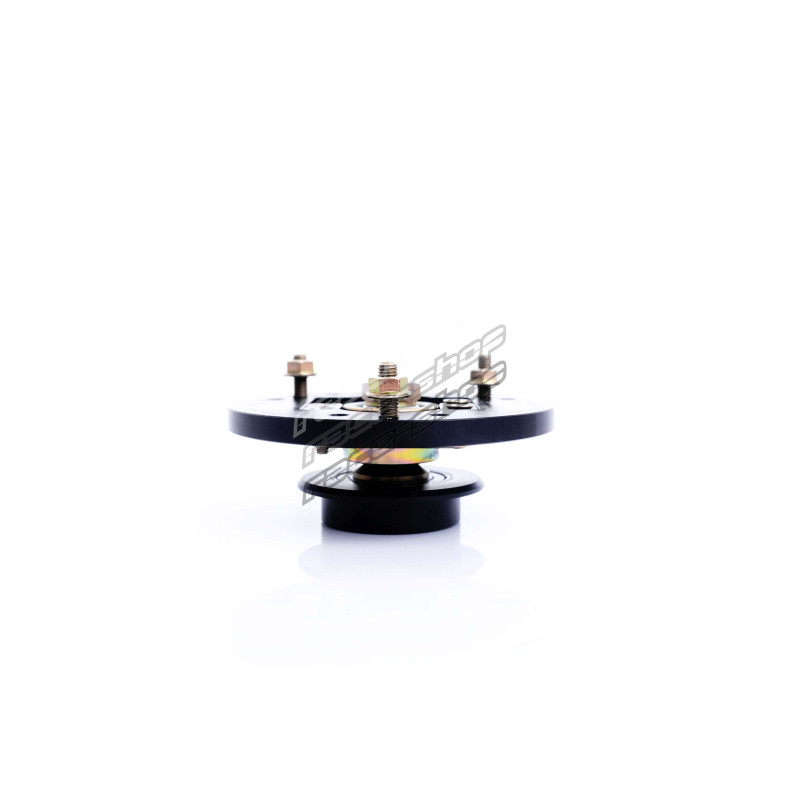

MTS adjustable camber / caster plates (front) for BMW 3 Convertible (E46) 04/00 - 12/07

Adjustable Camber Plates allow you to change in the angle of the wheels position relative to the ground. Especially Drift fans will appreciate our product, which significantly improves wheel grip while driving. Made of aluminum in CNC technology, they are characterized by lightness and corrosion resistance.

Reinforced Uniball bearings, which are a key element of our product, are guarantee for its trouble-free use for many years. In addition, the design of our mounts allows them to be used with suspensions from other manufacturers.

Product Information:

• Suitable for: BMW 3 Convertible (E46)
• Engine: 318 Ci, 320 Cd, 320 Ci, 323 Ci, 325 Ci, 330 Cd, 330 Ci
• Production year: 04/00 - 12/07
• TÜV certificate: no
• Suitable product: MTSGWBM03, MTSGWBM03-C, MTSGWBM03-S

Technical specifications:

• Axle: front
• Additional lowering: 20 mm
• Camber range: -2.5° to +0.5°
• Caster range: OEM to +0.5°
• OEM fit: no
• Piston rod diameter: 22 mm
• Piston thread pitch: M14x1,5
• Piston rod thread lenght: 40 mm
• Groove lenght: 40 mm
• Dedicated sping inside diameter: 61,75 mm

Additional information:

-If the kit does not include a special piston rod nut, use a nut from the shock absorber. The adjustment range may be different depending on the vehicle version, the lowering or the accuracy of welding of the suspension components.

- /
