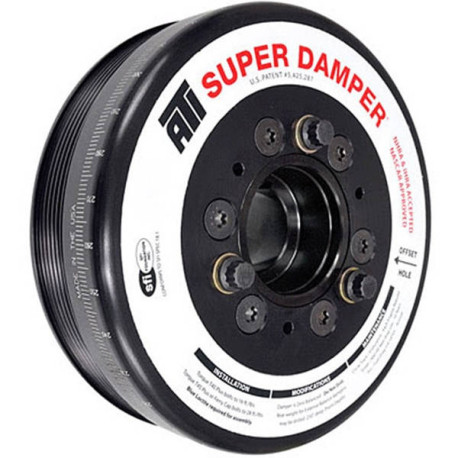

ATI SuperDamper serpentine series for Chevrolet

ATI Super Damper Serpentine Series harmonic balancers are patented and feature grooves for serpentine belts machined into the outer damper shell. The dampers come with six outer grooves for standard OEM drive systems—but eight and 10 grooves are available for supercharger or turbo applications. Serpentine dampers are offered in a variety of diameters, and crank hubs may be fitted with a 6-groove serpentine pulley to drive external oil pumps or vehicle accessories. The Serpentine Series Super Dampers fit all ATI GM-front crank hubs and can be adapted to many engine combinations, providing maximum flexibility. They're available in steel or lightweight, hardcoated aluminum.

Product features:

• Eliminates torsional crankshaft vibrations
• Exceeds SFI 18.1 specs
• Black zinc chromate finished
• Tunable, rebuildable, and extremely efficient at all rpms
• Laser-engraved 360 degree timing marks

Product specifications:

• Part Type: Harmonic Balancers
• Product Line: ATI Super Damper Serpentine Series Harmonic Balancers
• Engine Balance: Internal
• SFI Rating: SFI 18.1
• Degree Markings: Yes
• Degree Marking Range: 360
• Outside Diameter (in.): 6.780
• Crankshaft Pulley Bolt Hole Quantity: Three
• Groove Quantity: 6
• Keyway Quantity: One
• Harmonic Balancer Material: Aluminum/Steel
• Harmonic Balancer Construction: Elastomer
• Harmonic Balancer Color: Black zinc chromate
• Mounting Hardware Included: No
• Notes: Ten percent underdriven. Designed for use without air conditioning, requires shorter serpentine belt. Weight is 4.5 lbs.
