Universal THOR ThunderStorm electronic exhaust system with Thor ECHO - ADVANCED kit

This THOR ThunderStorm kit is an advanced kit combining a powerful titanium-steel alloy THUNDER speaker and a high-strength plastic STORM speaker for maximum depth and sound density. The low frequencies are felt by the body, the middle ones are clear, the upper ones are expressive. Each acceleration feels like a real engine response, giving the car the character of a real sports car. The system has been suitable for vehicles since 2005. Management is carried out through a mobile application.

Thor THUNDER loudspeaker specification:

• Heavy duty loud speaker (100db sound - comparable loudness to the BMW M5 F90 exhaust)
• Stainless steel alloy (AISI 304) welded spherical case
• The loud speaker simulates a large volume engine
• Partly covers the standard engine tone (especially on diesel applications)
• No exhaust system can reach such sound (especially on diesel applications)
• Classic sounds recorded only from real vehicles
• Dimensions: 37 x 23 x 23 cm

Thor STORM loudspeaker specification:

• Heavy duty plastic loud speaker
• The loud speaker simulates a large volume engine
• Partly covers the standard engine tone (especially on diesel applications)
• No exhaust system can reach such sound (especially on diesel applications)
• Classic sounds recorded only from real vehicles
• Dimensions: 11,7 x 11,7 x 21,4 cm
• Resonance frequency: 56 Hz
• Frequency range: 70-11000 Hz
• Impedance: 2 Om
• Sensitivity: 87 dB
• Rated power: 41 W
• Max power: 95 W
• Amplifier compability: THOR ECU V6.x.x. and later

Thor Echo specification:

• Resonance frequency: 680 Hz
• Frequency range: 700-7500 Hz
• Nominal resistance: 6 Ohm
• Sensitivity: 99,5 dB
• Rated power: 50 W
• Dimensions: 11,4 x 10,6 cm

Thor Control unit specification:

• Communication range via the BLE interface
• Sound amplifier power: up to 85W
• Current consumption: 5 A
• Amplifier efficiency: more than 90%
• Device power supply: from 10 to 30 V
• Supported CAN exchange rates (kBit/s): 125, 250, 500, 1000.
• Supported smartphone OS versions: iOS at least 10; Android at least 5.

Control and profile settings:

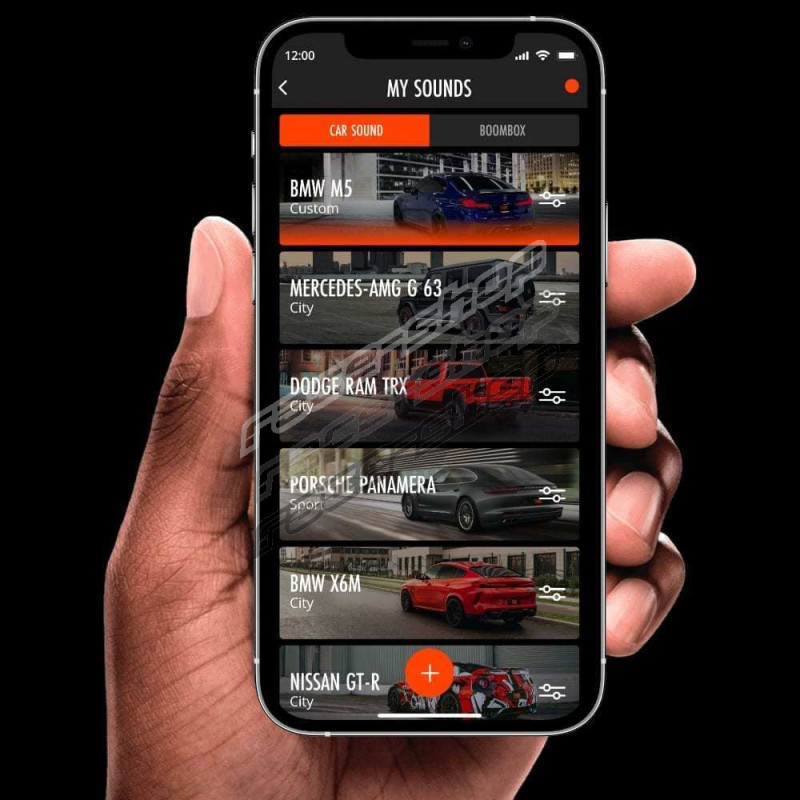

• Sound system controlled via mobile APP (available on App Store or Google Play)
• Choose between 20+ different exhaust sounds of legendary engines
• New sounds added and updated every month

Application:

• ANY vehicle 2005+ (with engine CAN bus)
• Also suitable for electric cars

Scope of delivery:

• THOR THUNDER speaker (sound generator)
• THOR STORM speaker (sound generator)
• THOR ECHO speaker
• THOR electronic control unit
• Installation material (wiring, mounting brackets)
• Instructions

Note:

• This product is a universal complete kit, which means that the revision of the sound generator for your vehicle needs to be done by you
• The installation of THOR Electronic exhaust can lead to the expiry of the operating license of your vehicle or to the refusal of a license for your car, according to the current practice of car registration offices. If you have any questions, please contact the responsible licensing authorities.
• Installation INSTRUCTIONS can be found in the product attachments tab
