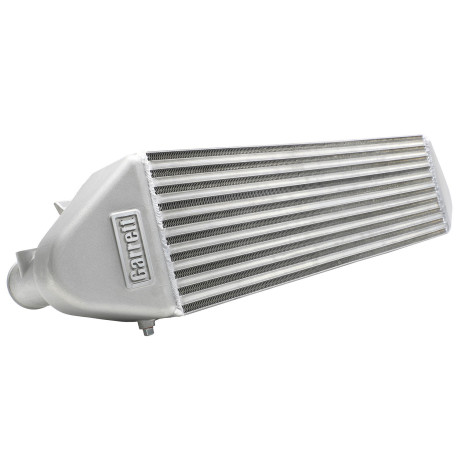

Garrett 880736-6001 Intercooler PowerMax for Ford Focus ST 2.0L (2013-2018)

Garrett PowerMax direct-fit performance intercooler for Ford Focus ST — bar-and-plate aluminium upgrade for improved charge cooling and consistent power.

The Garrett direct fit Ford Focus ST performance charge air cooler boasts a 115% larger core that helps reduce intake manifold temperatures by an average of 11 °F (6.1 °C) based on OBD II data.

This performance intercooler showed an increase of up to 25 HP (19 kW) and 9 lb-ft (12 N-m) of torque compared to OE during back to back dyno comparisons in a wind tunnel which generates air velocity that matches vehicle speed.

During testing the heat saturation point increased from 4 dyno pulls to 8 dyno pulls.

Note: For customers outside of North America, MAP sensor BV61-9F479-AA must be purchased separately and used for installation to ensure a proper fit.

Specifications

• Type: Direct-Fit (vehicle-specific)
• Vehicle: Ford Focus ST
• Engine: 2.0L
• Core size: 668 x 198 x 109 mm (26.3 x 7.8 x 4.3 in)
• Supported power: up to 670 HP

Features

• Supports up to 670 HP (499 kW)
• 115% larger core than stock
• Installs in stock location
• Up to 25 HP (19 kW) and 9 lb-ft (12 N-m) of torque
• Average 11 °F (6.1 °C) reduction in intake temperature based on OBD II data
• Integrated drain plug to evacuate condensation
• Cast aluminum end tanks
• Advanced offset fin design
