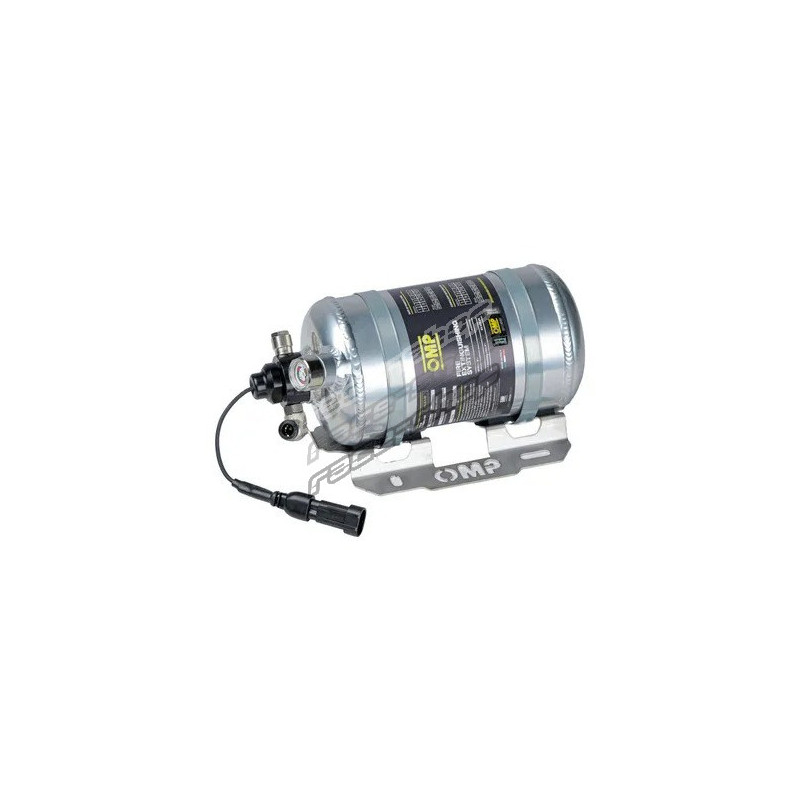

OMP CEFAL6 electrical extinguisher formula alluminium with FIA

• CEFAL6 system make use of FK-5-1-12 clean agent. The fluid stored in a lightweight 100 mm aluminium bottle, it delivers fire suppression performance through a precision-engineered nozzle and tubing layout to maximize performance.
• Designed for installations where space and weight are critical. Control unit, fixing brackets, clamps, tubing and connection included.

Technical info:

• Suitable for single seater cars
• Suitable for electric and hybrid cars
• 1.4KG FK-5-1-12 extinguisher
• Electrically activated
• 100mm aluminium bottle
• FIA Tech. List 16 homologated
• Bottle lenght: 197mm
  • Total lenght: 230mm
  • Anti-counterfeit OMP hologram
  • Parts included:
  2x Aluminium piping 8mm [CD0-0323-A01]
  1x Aluminium piping 6mm [CD0-0323-B01]
  2x Sheath 10mm [CD0-0324-A01]
  1x Sheath 8mm [CD0-0324-A03]
  6x Atomizer nozzle - 5 for engine and 1 for cockpit [CD0-0393-A01]
  3x 8mm T connection [CD0-0392-A02]
  2x 8mm 90° connection [CD0-0391-A02]
  1x 6mm 90° connection [CD0-0391-A03]
  1x Pipe reduction 6-8mm [CD0-0399]
  2x 8mm T connection [CD0-0390-B01]
  1x Control unit [CD0-0398]
  1x Control unit wiring [XMC-398-CAV]
  1x Electric valve wiring [XMC-363-E-CAV]
  1x Activation button [CD0-0432-A01]
  1x Activation button protection [CD0-0441]
  1x Bracket and clamps [CD0-0563]
  2x Sticker [XMC-855]
