WISEFAB lock kit for Chevrolet Corvette C5/C6

Product Features:

• To suit Chevrolet Corvette C5/C6
• Over 65° of steering angle
• Corrected roll centre
• Ackermann reduction
• Precise camber adjustment
• Optional front rack offset spacer kit

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 65° of drift optimised steering lock.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

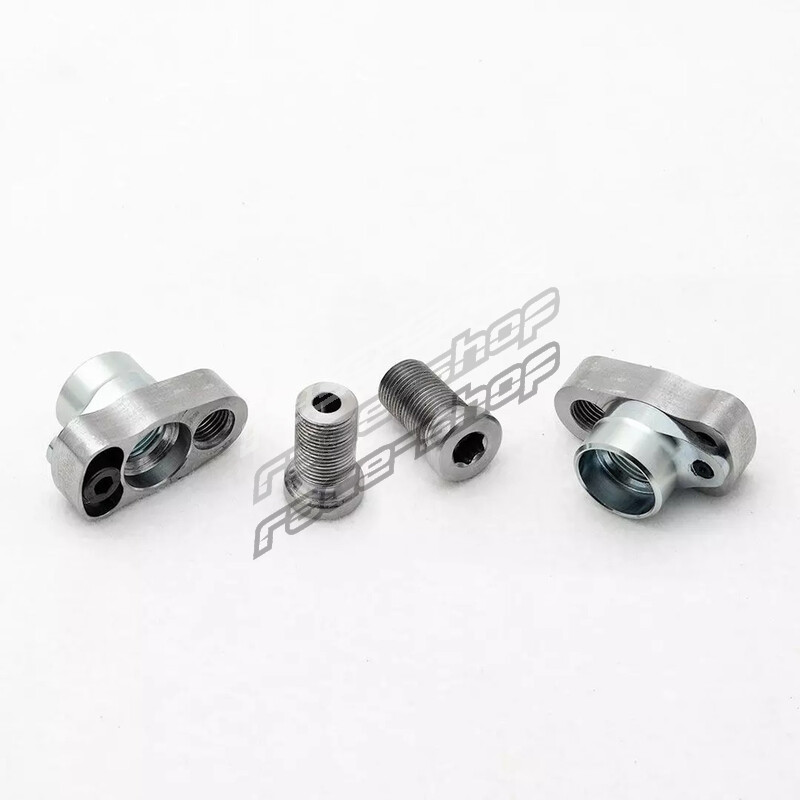

This steering angle kit comes with an optional rack offset spacer kit intended only for C6 chassis (not needed on C5). These spacers further unlock the steering angle and improve the Ackermann curve.

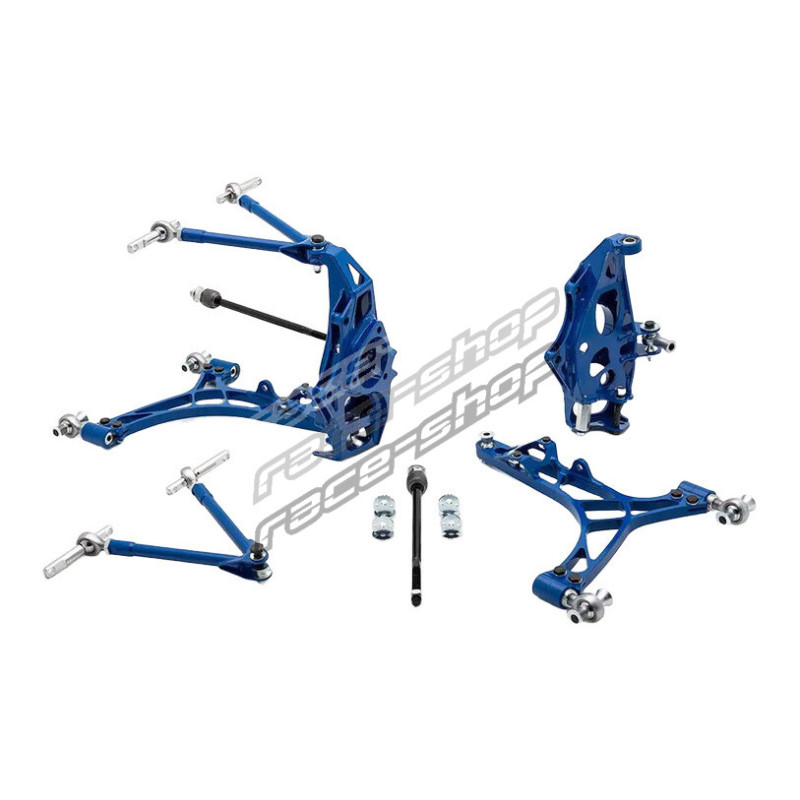

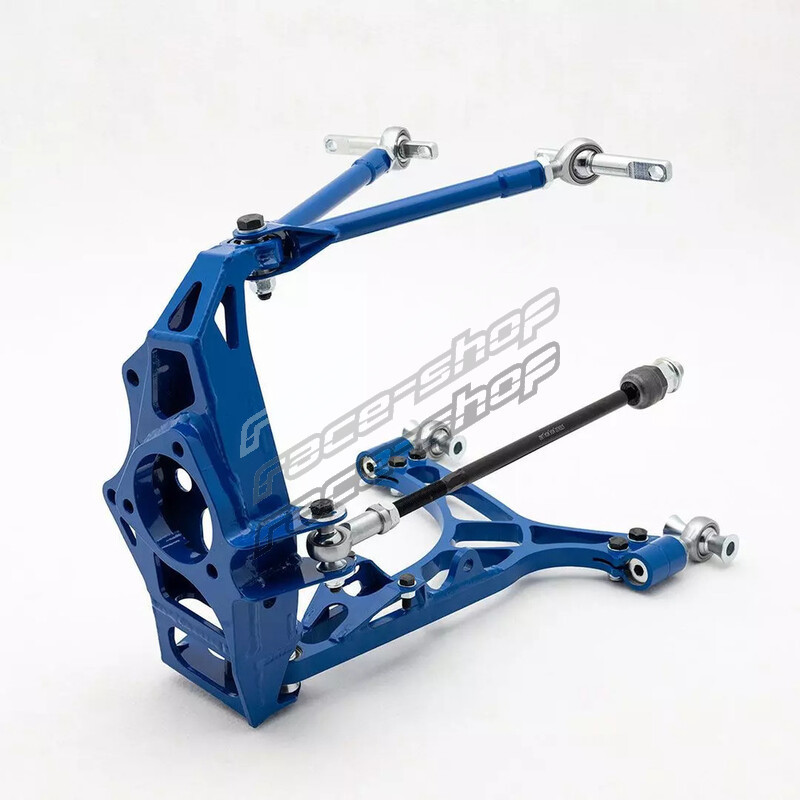

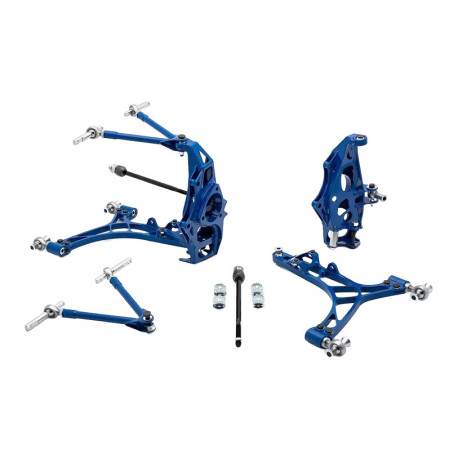

Kit contents :

• Hub knuckles
• Lower and upper control arms
• Assembled tie rods
• Rack offset spacers (optional)
• All required fixings for installation

Manufacturer advice :

• Wide arches or arch extensions are useful for this kit
• The OE ABS sensor can be used with this kit
• Adjust camber to -3.5°
• Adjust caster to 6°
• If Ackermann is 0° or negative then toe is 2mm out ; if Ackermann is positive, then toe is 0°

This kit comes with everything needed for a "plug and play" installation.
