CANchecked sensor Boost Sensor 5.5bar (80psi) -relative BST01

Electronic boost pressure sensor up to 6.5 Bar / 95 Psi compatible with various displays and gauges, MFD15, MFD28, MFD32 or aftermarket fuel injection systems. Due to high demand, we now offer the electronic 6.5 Bar boost pressure sensor individually!

Key Features of the boost sensor:

• Maximum 6.5 Bar / 95 Psi
• Comes with connector and pins for self-crimping
• Works with all displays, gauges, and programmable aftermarket fuel injection systems that allow individual calibration curves

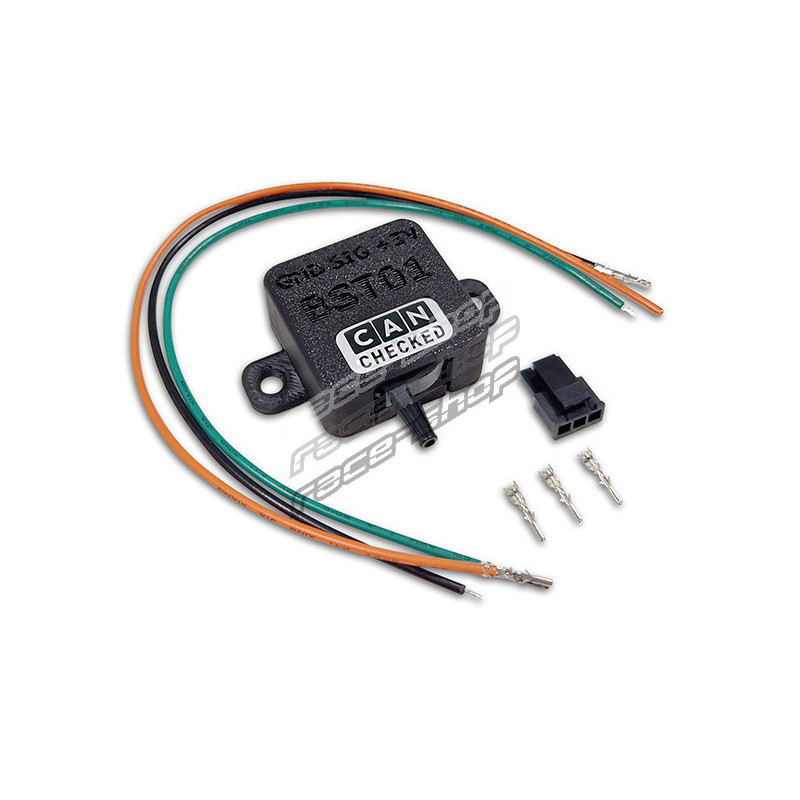

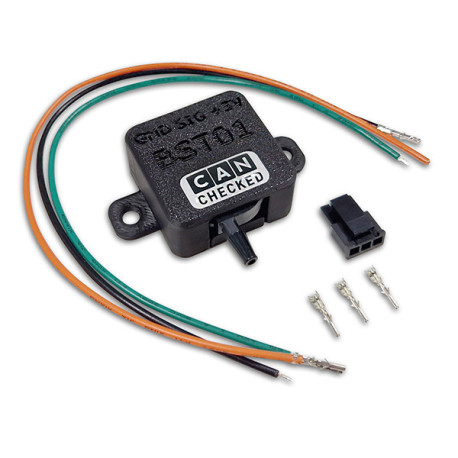

Package Contents:

• boost pressure sensor
• Connector plug
• Pins for cable crimping

Pin Assignment on the Sensor Connector for MFD28 / MFD32:
5V -> A2
Ground -> A6
Signal -> A8

0-5V Calibration Curve: 0V = -1.3 BAR 5V = 6.77 BAR

Order now and get the CANchecked Dsiplay Boost Pressure Sensor 6.5 Bar / 95 Psi to enhance your monitoring capabilities and optimize your engine's performance. Measure and control boost pressure with precision and trust in the quality and reliability of TurboZentrum products.
