> Vzmetenje>vzmetenje z nastavljivo višino - Coilovers>Audi>A5>B9 (8W6)>ST Performance coilovers for Audi A5 (B9) - type ST XA
Brezplačna poštnina B9 (8W6) ST Performance coilovers for Audi A5 (B9) - type ST XA | race-shop.si Povečaj

*330 656

ST Suspensions

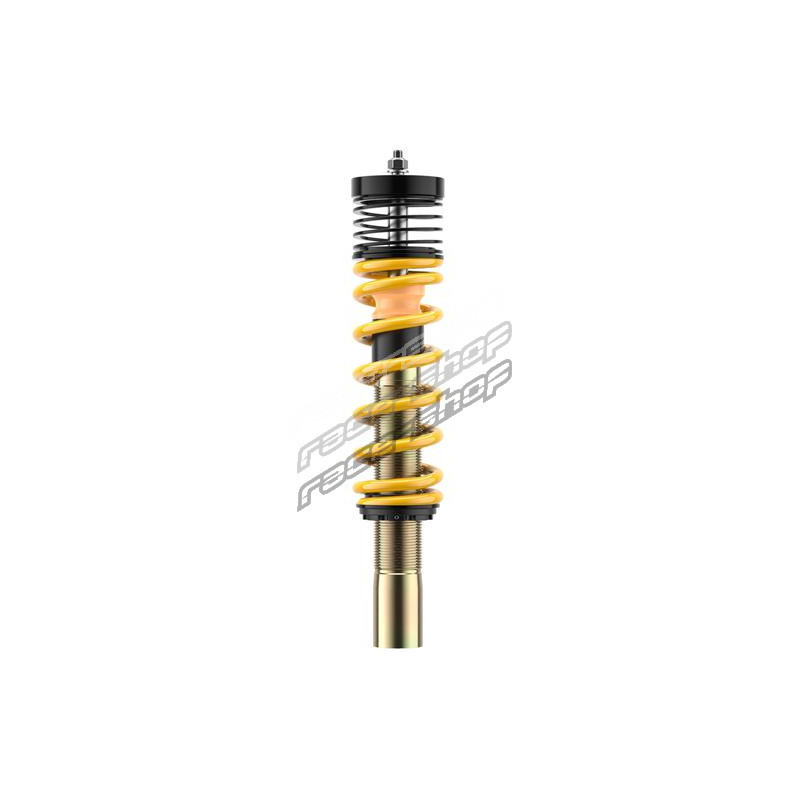

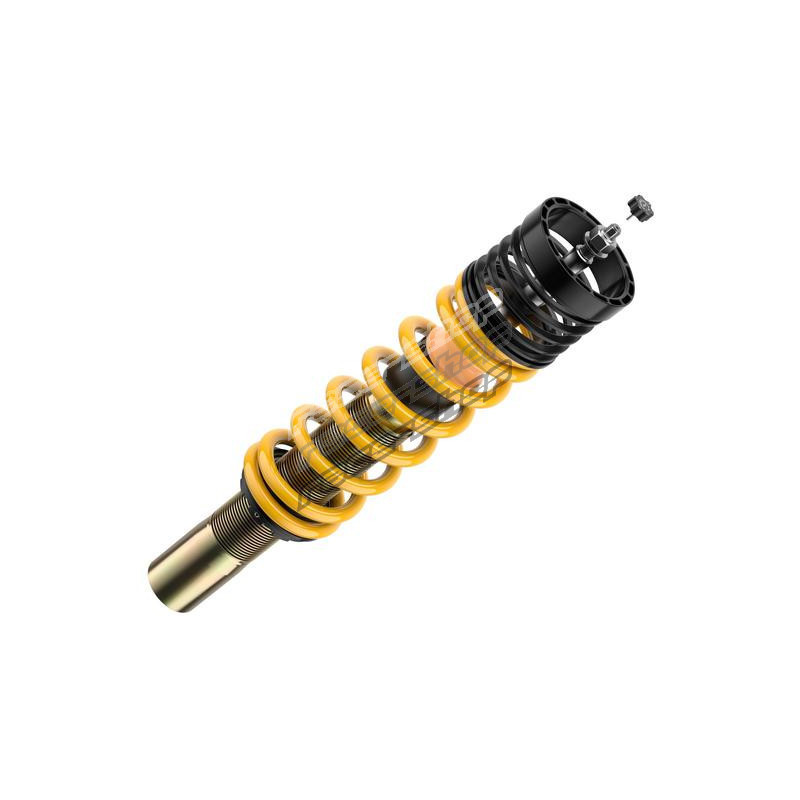

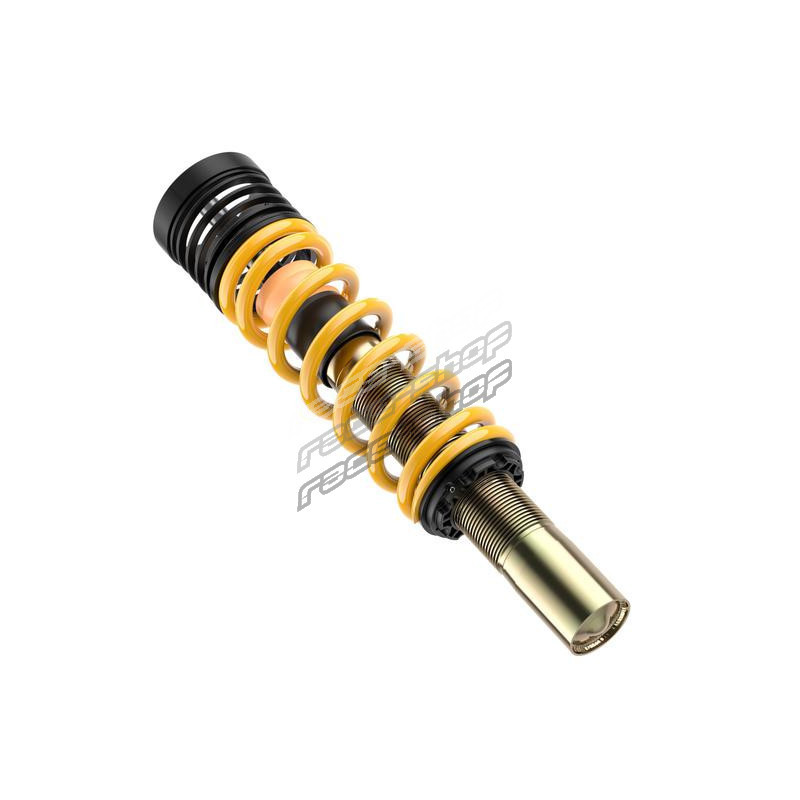

ST Performance coilovers for Audi A5 (B9) - type ST XA

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: Coupe; 4WD

Front axle lowering: 40-65mm

Rear axle lowering: 40-65mm

Prikaži celoten opis

Nov izdelek

Dobavljivo po naročilu

Najkasneje na vašem domu: 17. 9.

1.259,00 € z DDV

ST-182100AP_2

4250580482949

Povpraševanje o izdelku

Povpraševanje o izdelku

ST Performance coilovers for Audi A5 (B9) - type ST XA

ST Performance coilovers for Audi A5 (B9) - type ST XA

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: Coupe; 4WD

Front axle lowering: 40-65mm

Rear axle lowering: 40-65mm

Vprašanje o tem izdelku pošljite lastniku trgovine.

* Obvezna polja

  ali  Prekliči

Notify me

Notify me about the stock

ST Performance coilovers for Audi A5 (B9) - type ST XA

ST Performance coilovers for Audi A5 (B9) - type ST XA

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: Coupe; 4WD

Front axle lowering: 40-65mm

Rear axle lowering: 40-65mm



ST XA Coilover series with adjustible damping

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type and year of construction.

KW Engineering: Exclusive for ST suspension

The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.



Lowering with St\Tyle: the ST XA coilovers

  • External damper adjustment
  • Latest damping technology for maximum longevity
  • Reduced system friction for effective damping adjustment
  • Individual lowering within the tested adjustment range
  • Front and rear axle (when possible) with thread adjustment
  • Galvanized coilover struts with additional coating for an optimized corrosion protection
  • Complete solution with adjustable spring plate, spring system and bumpers with dust protection



Suitable for:

Make: Audi
Model: A5 (B9)
Type: (B8, B81)
Year: 01/17-
Additional information: Coupe; 4WD



Manufacturers note:

  • only for cars with damper diameter 50mm (not 48,5mm) / clamp diameter 53mm on the front axle
  • At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510476

  •

    Technical information:

    Material: Galvanized steel
    Product line: Street Performance coilover kit
    Coilover version: ST XA
    Damping adjustment: Rebound damping
    Front axle load (FA): -1135kg
    Rear axle load (RA): -1215kg
    Front axle lowering (VA): 40-65mm
    Rear axle lowering (HA): 40-65mm



    Package content:

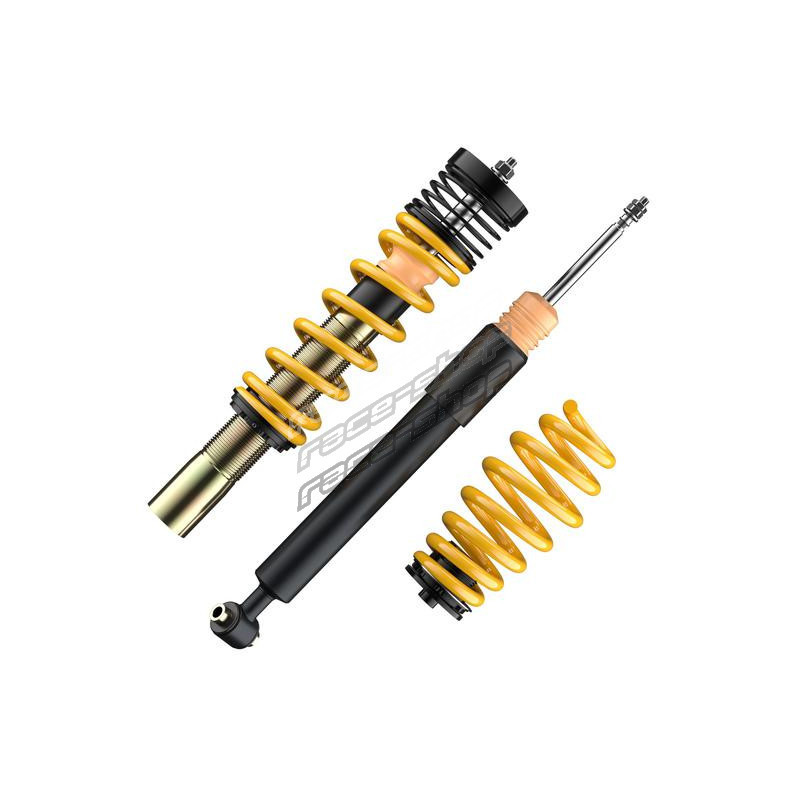

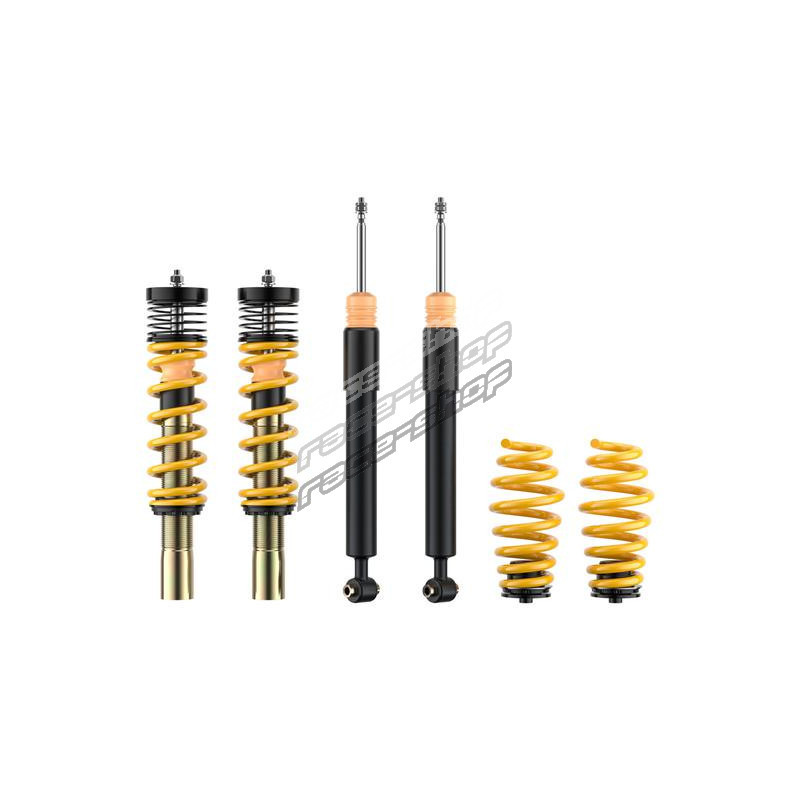

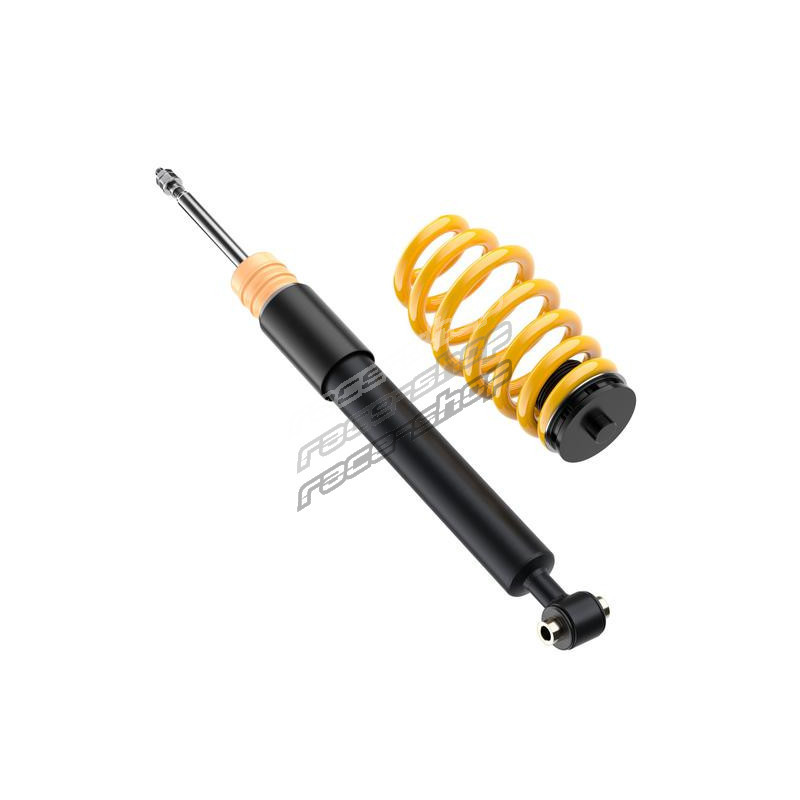

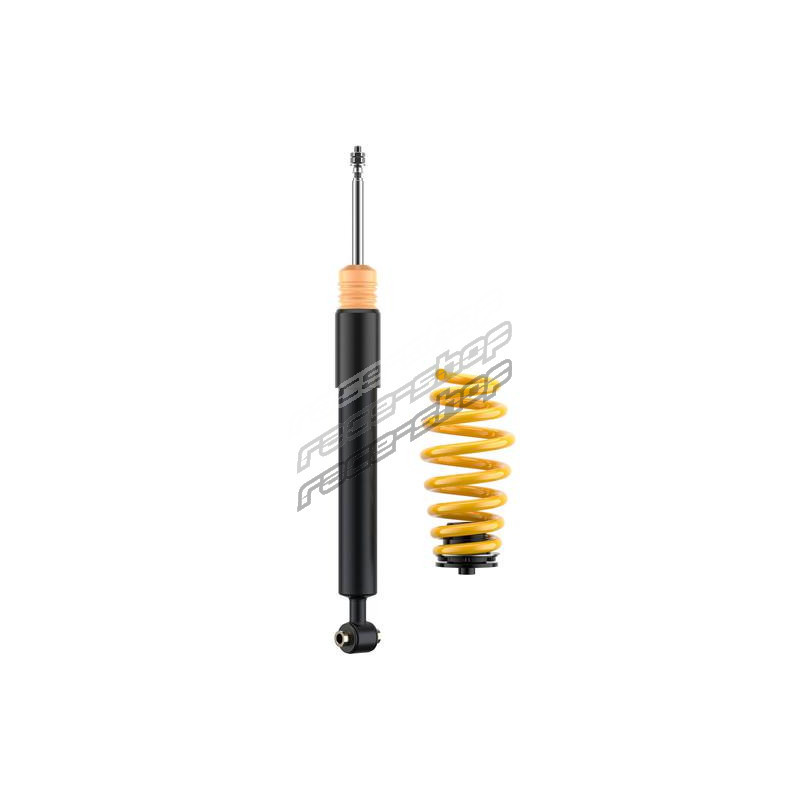

    Set FA coilover struts, RA springs with height adjustment + dampers





    Full coilover kit application:

    ManufacturerModelTypeEngineVehicle shapeFuelPerformanceCubic capacityCylinderFour wheel drive
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B92.0 TDI quattroSaloonDiesel110 KW1968 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B92.0 TDI quattroSaloonDiesel120 KW1968 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B92.0 TDI quattroSaloonDiesel140 KW1968 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B92.0 TFSI Mild Hybrid quattroSaloonPetrol/Electric185 KW1984 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B92.0 TFSI quattroSaloonPetrol183 KW1984 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B92.0 TFSI quattroSaloonPetrol185 KW1984 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B940 TDI Mild Hybrid quattroSaloonDiesel/Electro150 KW1968 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B940 TDI quattroSaloonDiesel140 KW1968 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B940 TFSI Mild Hybrid quattroSaloonPetrol/Electric150 KW1984 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B945 TFSI Mild Hybrid quattroSaloonPetrol/Electric180 KW1984 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B945 TFSI Mild Hybrid quattroSaloonPetrol/Electric183 KW1984 ccm4 CylinderNo
    AUDIA4 (8W2, 8WC, B9) 05/2015-8W2, 8WC, B945 TFSI Mild Hybrid quattroSaloonPetrol/Electric195 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B91.4 TFSIEstatePetrol110 KW1395 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TDIEstateDiesel100 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TDIEstateDiesel110 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TDIEstateDiesel140 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TDIEstateDiesel90 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TFSI Mild HybridEstatePetrol/Electric185 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TFSIEstatePetrol140 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TFSIEstatePetrol183 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B92.0 TFSIEstatePetrol185 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B93.0 TDIEstateDiesel160 KW2967 ccm6 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B930 TDI Mild HybridEstateDiesel/Electro100 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B930 TDIEstateDiesel90 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B935 TDI Mild HybridEstateDiesel/Electro120 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B935 TDIEstateDiesel110 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B935 TFSI Mild HybridEstatePetrol/Electric110 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B940 TDI Mild HybridEstateDiesel/Electro150 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B940 TDIEstateDiesel140 KW1968 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B940 TFSI Mild HybridEstatePetrol/Electric140 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B940 TFSI Mild HybridEstatePetrol/Electric150 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B940 TFSIEstatePetrol150 KW1984 ccm4 CylinderNo
    AUDIA4 Avant (8W5, 8WD, B9) 08/2015-8W5, 8WD, B945 TFSI Mild HybridEstatePetrol/Electric180 KW1984 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P2.0 TDI quattroCoupeDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P2.0 TFSI Mild Hybrid quattroCoupePetrol/Electric185 KW1984 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P2.0 TFSI quattroCoupePetrol183 KW1984 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P2.0 TFSI quattroCoupePetrol185 KW1984 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P40 TDI Mild Hybrid quattroCoupeDiesel/Electro150 KW1968 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P40 TDI quattroCoupeDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P40 TFSI Mild Hybrid quattroCoupePetrol/Electric150 KW1984 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P45 TFSI Mild Hybrid quattroCoupePetrol/Electric180 KW1984 ccm4 CylinderNo
    AUDIA5 (F53, F5P) 06/2016-F53, F5P45 TFSI Mild Hybrid quattroCoupePetrol/Electric195 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F1.4 TFSIHatchbackPetrol110 KW1395 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F2.0 TDIHatchbackDiesel100 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F2.0 TDIHatchbackDiesel110 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F2.0 TDIHatchbackDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F2.0 TFSI Mild HybridHatchbackPetrol/Electric185 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F2.0 TFSIHatchbackPetrol140 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F2.0 TFSIHatchbackPetrol185 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F3.0 TDIHatchbackDiesel160 KW2967 ccm6 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F30 TDI Mild HybridHatchbackDiesel/Electro100 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F35 TDI Mild HybridHatchbackDiesel/Electro120 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F35 TDIHatchbackDiesel110 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F35 TFSI Mild HybridHatchbackPetrol/Electric110 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F40 TDI Mild HybridHatchbackDiesel/Electro150 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F40 TDIHatchbackDiesel140 KW1968 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F40 TFSI Mild HybridHatchbackPetrol/Electric140 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F40 TFSI Mild HybridHatchbackPetrol/Electric150 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F40 TFSIHatchbackPetrol150 KW1984 ccm4 CylinderNo
    AUDIA5 Sportback (F5A, F5F) 06/2016-F5A, F5F45 TFSI Mild HybridHatchbackPetrol/Electric180 KW1984 ccm4 CylinderNo
