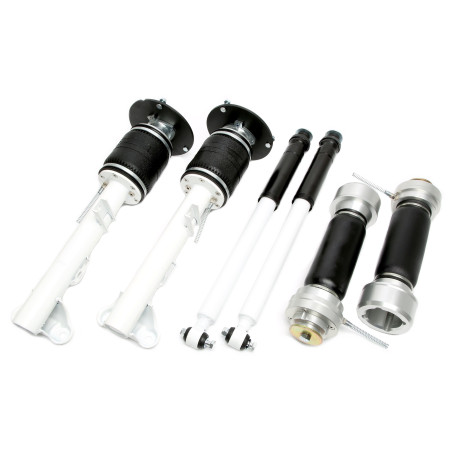

TA-Technix airride kit with air management for Mercedes-Benz CLK-Klasse Typ C209 A209

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 11.5 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Mercedes C-Class Sportcoupe Type CL203
excl. level control
Year of manufacture 2001 - 2008

Mercedes CLC-Class Type CL203
excl. level control
Year of manufacture 2008 - 2011

Mercedes Benz C-Class sedan, model W203
excl. AMG, level control
Year of manufacture 2000 - 2007

Mercedes Benz C-Class estate, model S203
excl. AMG, level control
Year of manufacture 2001 - 2007

Mercedes Benz CLK, model C209
excl. level control
Year of manufacture 2002 - 2009

Mercedes Benz CLK Convertible, Type A209
excl. level control
year of construction 2003 - 2010
maximum front axle load: 1130kg
maximum rear axle load: 1170kg

Approval:

Including parts report (§19.3)

Implementation notes:

Body work necessary
Front axle:
The upper dome bearing mount must be drilled out (template included).

Notes:

-

Axle:

-

KeyType number:

14814,14815,14816,14817,14818,14819,14820,15108,15262,15263,15264,15265,15719,15720,15721,15722,15723,15832,15833,15836,16089,16090,16629,16630,16657,16658,16659,16699,16714,16715,16716,16717,16718,16719,16720,16815,16824,17101,17102,17103,17130,17131,17187,17188,17189,17190,17191,17192,17375,17376,17377,17378,17379,17861,17862,17863,17864,17865,17866,17867,18698,18699,18703,18704,18705,18706,18707,18708,18711,18712,18714,18716,18718,18882,18883,18884,19257,19775,19776,20640,21568,23157,23158,23159,26564,26566,26567,26568,26569,28372,31155,54930,54946,54959,54960,58598,118501,118502
