TA-Technix airride kit with air management for BMW 3er Cabriolet Typ E46

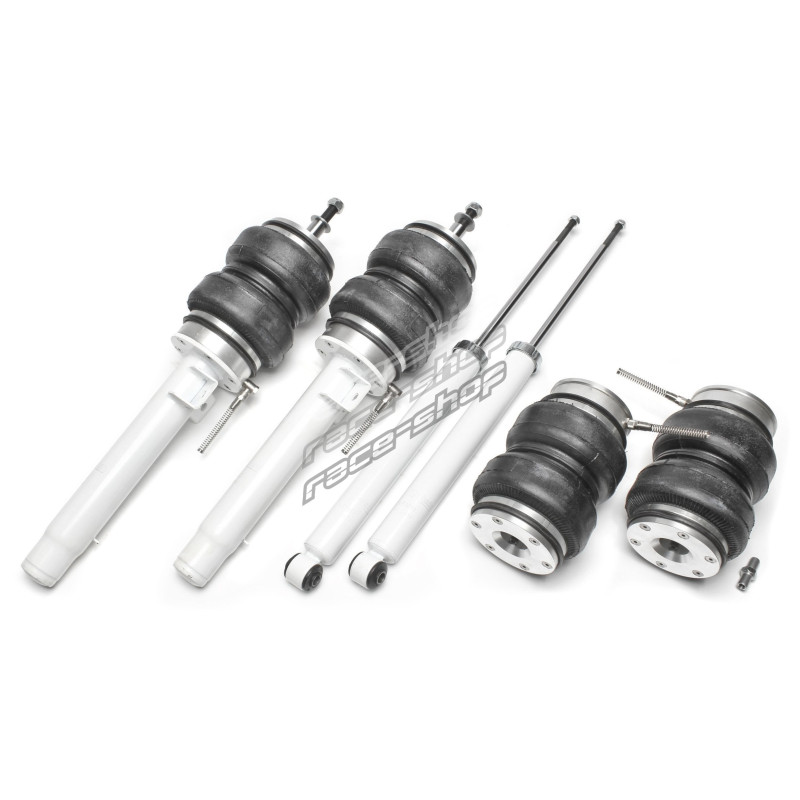

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

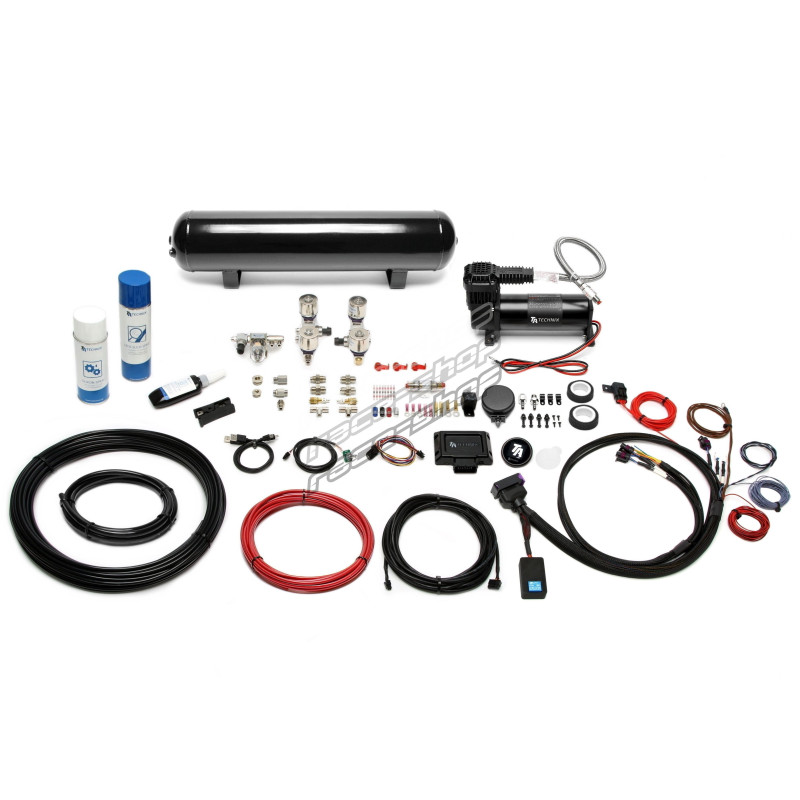

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
BMW 3 series type E46, year of construction 1998 - 2007
incl. Compact
without M3 and iX models
maximum front axle load: 1030kg
maximum rear axle load: 1215kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

8963,8964,9045,9091,9092,10502,10503,11042,11319,11368,11400,12139,12140,12141,13874,14185,14397,14922,14923,14926,15448,15449,15450,15451,15452,15453,15454,15455,15894,15895,15924,15925,16189,16190,16198,16199,16201,16202,16315,16325,16326,16327,16741,16742,17206,17282,17350,17351,17353,18288,18465,18466,18822,18823,18824,19301,19334,19951,26863,27309,30325,30911,46023,54952,54973,124212,122008,121967
