TA-Technix hardness adjustable air suspension kit for BMW 3er Coupe Typ E30

TA Technix air damper set + TA Technix air generation kit for air suspension / airride

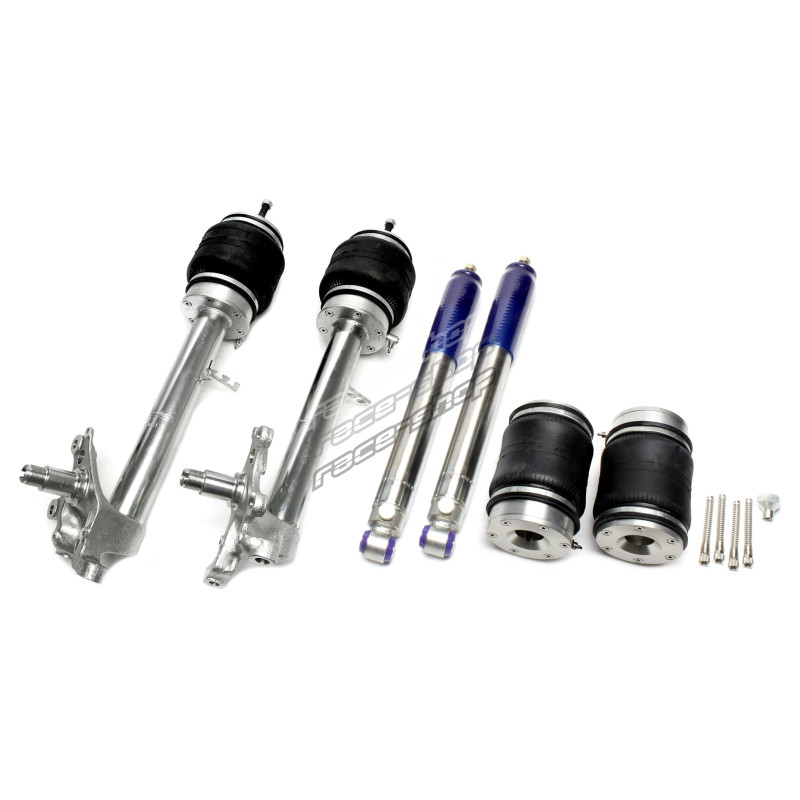

TA Technix hardness adjustable air damper set

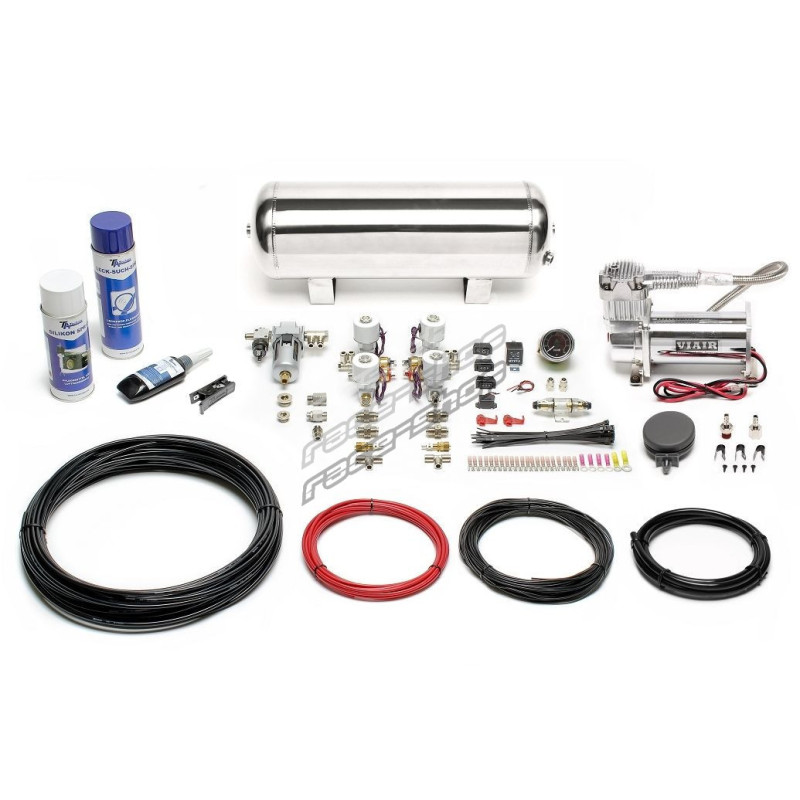

TA Technix air generation kit for air suspension / airride
380 Viair compressor
11,5 litre chrome tank
Viair dual pressure gauge in black
25 meter 6mm PU hose in black
Hose cutter
4 x 2/2 way valves 1/4
Warning buzzer and LED
Normally closed and normally open pressure switch
Electronic set incl. 3 switches, flat plug sleeves, cable, cable ties and relay
all fittings incl. check valve and safety valve
2 x emergency filling valves
Safety valve
Water separator
Leak detection spray
Silicone spray
Thread sealant

suitable for:
BMW 3 Series Coupe, Type E30
excl. iX, M3 models
Year of manufacture 1982 - 1991

BMW 3 Series Sedan, Type E30
excl. iX, M3 models
Year of manufacture 1982 - 1991

BMW 3 Series Convertible, Type E30
Year of construction 1986 - 1993

BMW 3 Series Touring, model E30
year of construction 1987 - 1994
maximum front axle load: 865kg
maximum rear axle load: 1000kg

Approval:

Including parts report (§19.3)

Implementation notes:

VA hardness adjustment:
Infinitely variable using the adjustment wheel from above

HA hardness adjustment:
Using an adjustment knob on the damper body in compression + rebound simultaneously

Notes:

Excluding M3 and all-wheel drive

Axle:

-

KeyType number:

20,21,22,23,24,27,28,29,30,33,34,37,39,40,41,42,43,44,45,46,48,219,298,299,300,301,4651,6145,6146,6147,8286,14403,14795,18153,20327,31151,121337
