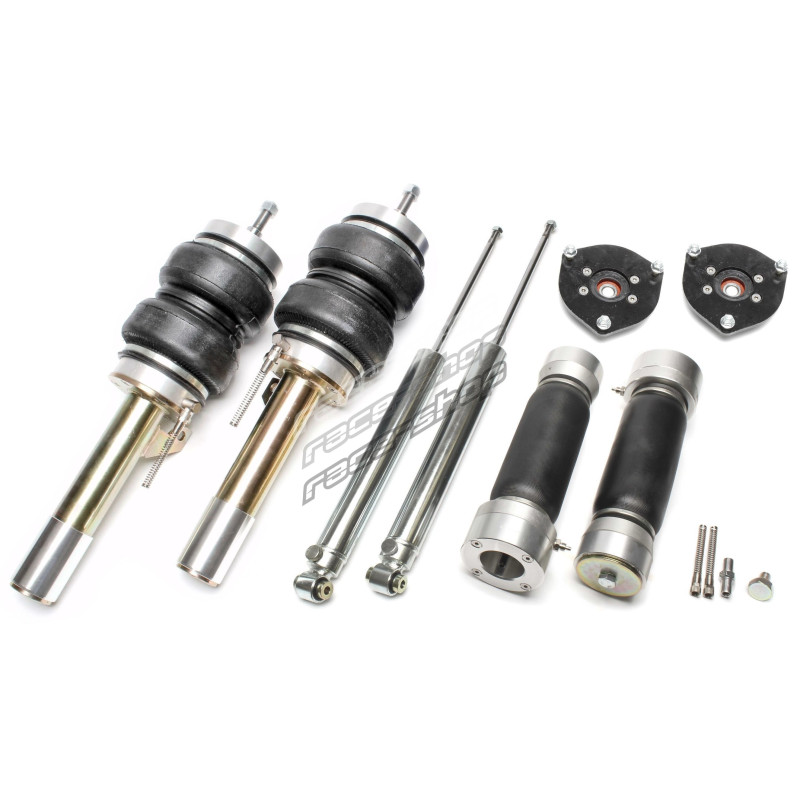

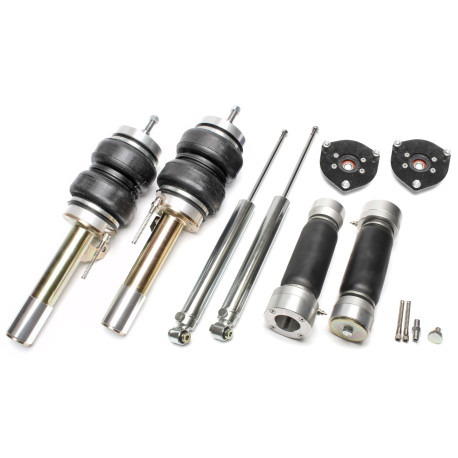

TA-Technix air suspension set for Volkswagen Jetta IV Typ 16

TA Technix hardness-adjustable air damper set for air suspension / airride

suitable for:
Volkswagen Beetle, Type 16, Year of manufacture 2011 -
Volkswagen Beetle Cabriolet, model 16, year of manufacture 2012 -
Volkswagen Jetta IV, model 16, year of manufacture 2010 -

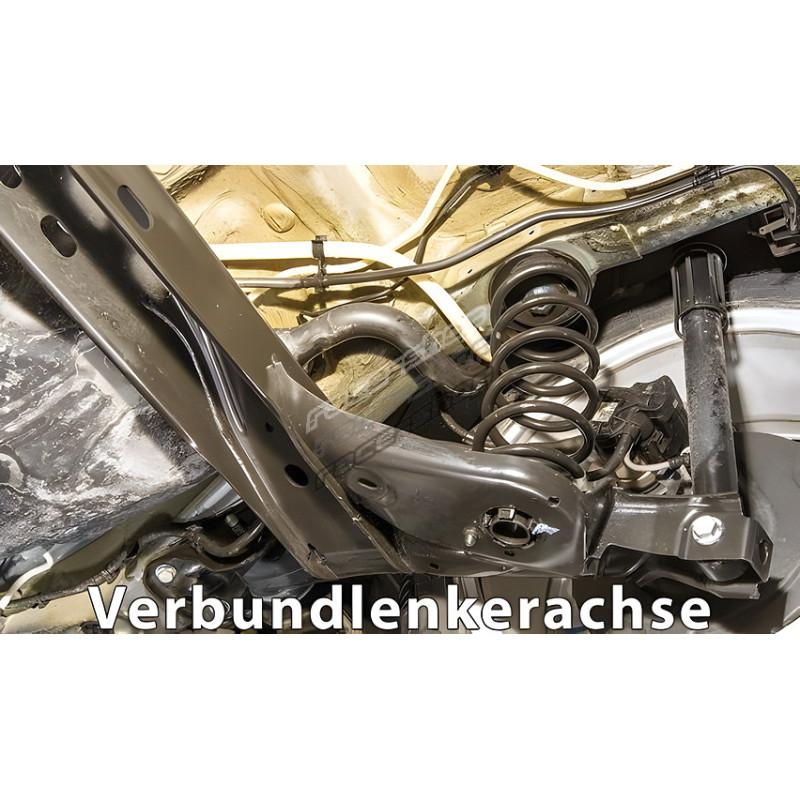

Models with twist-beam rear axle
50mm and 55mm suspension strut
maximum front axle load: 1080kg
maximum rear axle load: 1080kg

Approval:

Including parts report (§19.3)

Implementation notes:

Models with torsion beam rear axle
VA = hardness adjustment - infinitely variable using an adjustment wheel from above
HA = via adjustment knob on the damper body (compression + rebound at the same time)

Notes:

We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

Front + Rear axle

KeyType number:

5941,5943,9752,9753,11293,11294,24177,24179,56783,56785,56790,56791,57357,58101,106707,108514,108515,109431,109439,109462,109467,112389,116818,117064,117066
