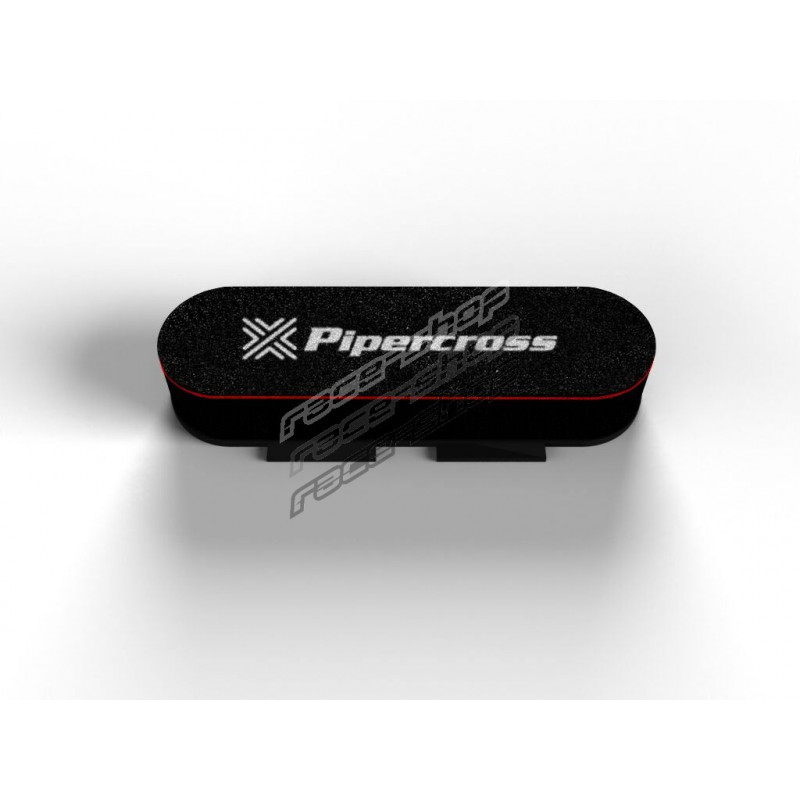

PX600 Box filter 115mm height

The PX600 range of filters is developed for twin carburettor or throttle body applications. They are used throughout Motorsport and are supplied as an OE item to the likes of Westfield, Jenvey etc.The range consists of a filter unit which utilises the Pipercross competition foam, bonded to a ring plate. The filter is a lifetime filter and can be washed and reused, it is a simple process using one of our cleaning kits. This ring plate can be attached (using the supplied DZUS fasteners) to either a tailored base plate or a blank base plate so you can cut the holes to suit your application.To choose the correct filter for your engine please select the height as per your requirements, it is always best to choose the largest possible filter to get the maximum air flow. Remember to leave at least 20mm between the end of the trumpet/carburettor inlet and the inside of the filter.The length (435mm) and the width (190mm inc tabs) of the filter remain the same.

Product note: Internal 100mm

Dimensions: 435mmx190mmx115mm
