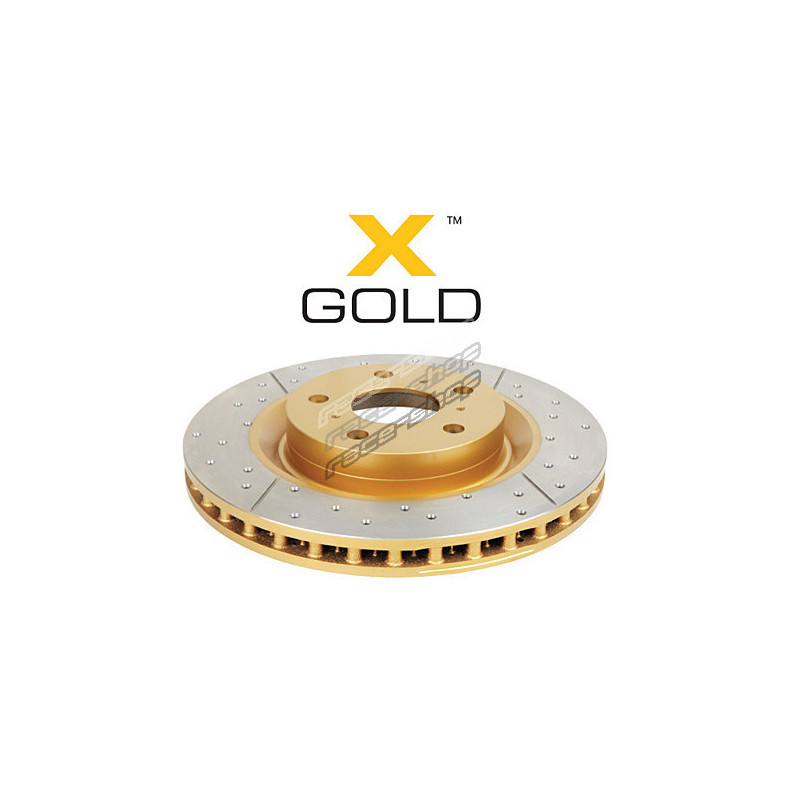

DBA Street Series – X Gold Rotors

DBA’s Street Series X Gold provides all the benefits of the standard Street Series, with a premium non-directional cross-drilled and slotted design and an attractive gold finish on the rotor hub.

Key Features & Technologies

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation, reducing brake fade and improving effectiveness
• Extends rotor and pad life while minimizing mechanical wear

XG150 High Carbon Alloyed Iron

• Handles extreme heat over extended periods
• Minimizes warping and cracking
• Increases overall durability and rotor lifespan

Paint Protection on Non-Friction Areas

• Prevents corrosion and rust formation
• Improves appearance and adds product value

CBN (Cubic Boron Nitride) Machining

• Improves disc thickness variation (DTV) and parallelism
• Reduces brake shudder and inconsistent pedal feel
• Ensures precise and stable surface finish vs. ground rotors

Performance Benefits

• Cross-drilled and slotted design improves brake dust and gas evacuation
• Better initial bite and reduced fade under load
• Ideal for open-wheel and show cars
• For intensive braking, DBA recommends T2 slot design

Additional Advantages

• Direct OE replacement fitment
• Moisture-proof, corrosion-protective packaging
• 100% confidence in fitment – not a cheap alternative

Recommended for: Daily drivers, street SUVs, and light commercial vehicles.

*Not available for all part numbers. Please confirm availability with your distributor.

Technical information:

Diameter [mm]: 312
Disc Vent: Vented
Number of Holes: 5
Inner Diameter [mm]: 110
Minimum Thickness [mm]: 16
Thickness [mm]: 18
Height [mm]: 102.5
Stage: Stage 1

Suitable for:

Rear - TOYOTA/Landcruiser 70 series/4.2 D (HDJ78, HDJ79) 122 kW (2001-2007) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.2 D (HZJ76) 96 kW (2007-) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.2 D (HZJ78) 96 kW (1999-2007) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.2 D (HZJ79) 96 kW (1999-2007) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.2 D 4x4 (HZJ78) 123 kW (1990-2001) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.5 D (VDJ76) 151 kW (2007-2022) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.5 D (VDJ78) 151 kW (2007-2016) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser 70 series/4.5 D (VDJ79) 151 kW (2007-) Brake Pads: DB1200, Rear - TOYOTA/Landcruiser VDJ/4.2 D (2006-) Brake Pads: DB1200,
