DBA Street Series – X Gold Rotors

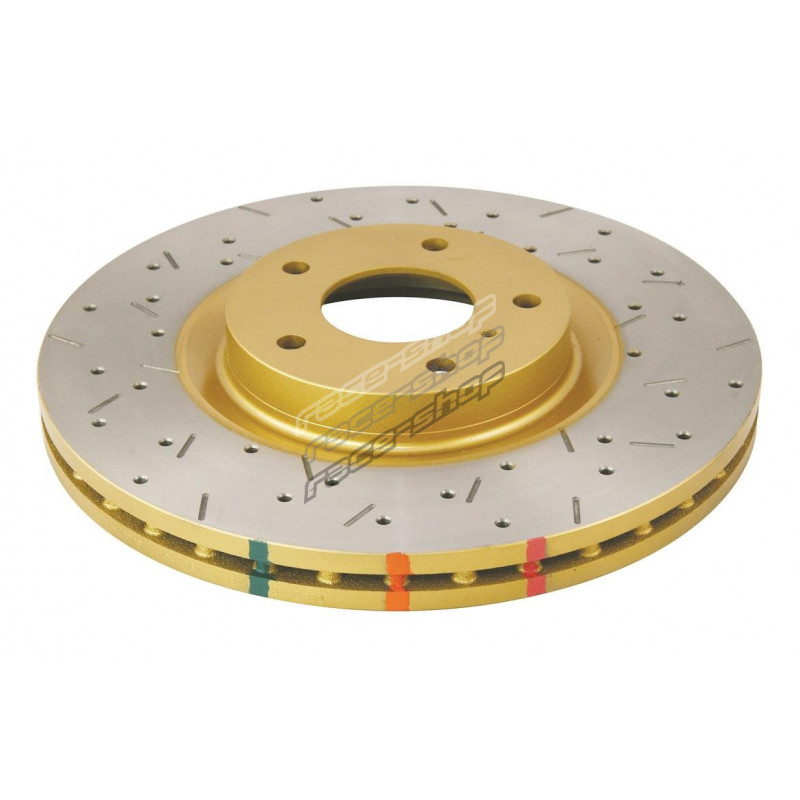

DBA’s Street Series X Gold provides all the benefits of the standard Street Series, with a premium non-directional cross-drilled and slotted design and an attractive gold finish on the rotor hub.

Key Features & Technologies

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation, reducing brake fade and improving effectiveness
• Extends rotor and pad life while minimizing mechanical wear

XG150 High Carbon Alloyed Iron

• Handles extreme heat over extended periods
• Minimizes warping and cracking
• Increases overall durability and rotor lifespan

Paint Protection on Non-Friction Areas

• Prevents corrosion and rust formation
• Improves appearance and adds product value

CBN (Cubic Boron Nitride) Machining

• Improves disc thickness variation (DTV) and parallelism
• Reduces brake shudder and inconsistent pedal feel
• Ensures precise and stable surface finish vs. ground rotors

Performance Benefits

• Cross-drilled and slotted design improves brake dust and gas evacuation
• Better initial bite and reduced fade under load
• Ideal for open-wheel and show cars
• For intensive braking, DBA recommends T2 slot design

Additional Advantages

• Direct OE replacement fitment
• Moisture-proof, corrosion-protective packaging
• 100% confidence in fitment – not a cheap alternative

Recommended for: Daily drivers, street SUVs, and light commercial vehicles.

*Not available for all part numbers. Please confirm availability with your distributor.

Technical information:

Diameter [mm]: 302
Disc Vent: Kangaroo Paw
Number of Holes: 6
Inner Diameter [mm]: 100
Minimum Thickness [mm]: 19
Thickness [mm]: 20
Height [mm]: 49
Pitch Circle [mm]: 139.7
Stage: Stage 1

Suitable for:

Front - TOYOTA/Hi-Lux LN105/2.4 D (1989-1997) Brake Pads: DB1149, Front - TOYOTA/Hilux Surf LN106/2.8 D (1988-1997) Brake Pads: DB1149, Front - TOYOTA/Hi-Lux YN106/2.2 (1989-1997) Brake Pads: DB1149, Front - TOYOTA/Landcruiser 70 series/2.4 (RJ70, RJ73) 77 kW (1984-1993) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/2.4 (RJ70, RJ73) 84 kW (1988-1996) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/2.4 (RJ70, RJ73, RJ70RV) 81 kW (1984-1993) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/2.4 D (LJ70) 53 kW (1984-1985) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/2.4 TD (LJ70) 63 kW (1985-1990) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/2.4 TD (LJ70) 66 kW (1990-1993) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/3.0 TD (KZJ78) 92 kW (1993-1996) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/3.4 D (BJ70, BJ73, BJ75) 70 kW (1984-1996) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/3.4 TD (BJ71, BJ74) 91 kW (1985-1986) Brake Pads: DB288, Front - TOYOTA/Landcruiser 70 series/3.5 D 4x4 (PZJ70) 85 kW (1990-1994) , Front - TOYOTA/Landcruiser 70 series/4.2 D (HZJ70, HZJ73, HZJ75) 96 kW (1990-1999) Brake Pads: DB1149, Front - TOYOTA/Landcruiser 70 series/4.2 D (HZJ77) 96 kW (1990 -1999) , Front - TOYOTA/Landcruiser 70 series/4.2 D 4x4 (HZJ75) 123 kW (1990-2001) Brake Pads: DB1149, Front - TOYOTA/Landcruiser 70 series/4.5 4x4 (FZJ75, FZJ75RV) 158 kW (1992-1999) Brake Pads: DB1149, Front - TOYOTA/Landcruiser BJ60/3.4 D (1981-1984) Brake Pads: DB288, Brake Caliper: Sumitomo Front - TOYOTA/Landcruiser FJ60/4.2 (1981-1984) Brake Pads: DB288, Front - TOYOTA/Landcruiser HJ60/4.0 D (1981-1991) Brake Pads: DB288, Brake Caliper: Sumitomo Front - VOLKSWAGEN/Taro/2.2 (1989-1994) Brake Pads: DB1149, Front - VOLKSWAGEN/Taro/2.4 D (1989-1994) Brake Pads: DB1149,
