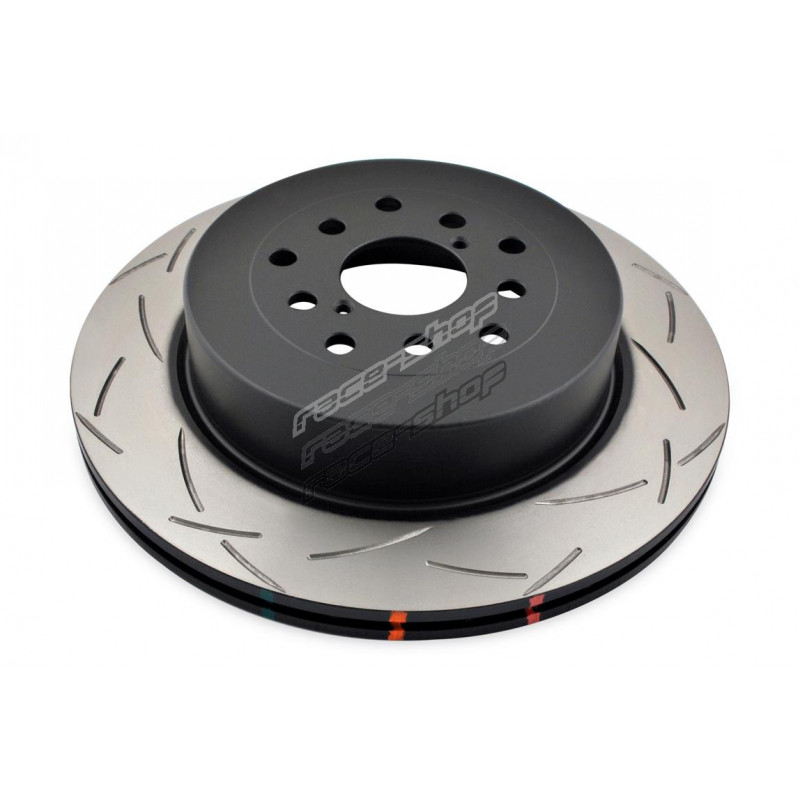

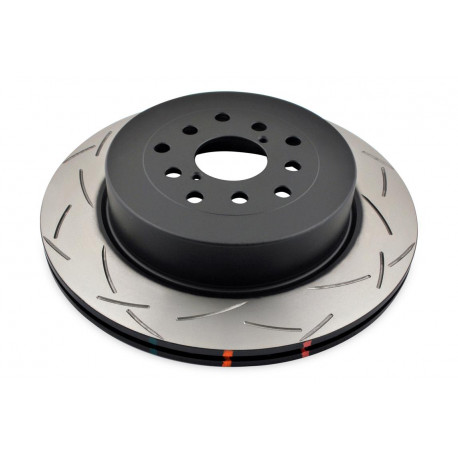

DBA 4000 series T3 DBA4655S-10 (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 316
Disc Vent: Kangaroo Paw
Number of Holes: 10
Inner Diameter [mm]: 58
Minimum Thickness [mm]: 18
Thickness [mm]: 20
Height [mm]: 67.5
Pitch Circle [mm]: 5x100 / 5x114.3
Stage: Stage 4
ECE R90 number: E11*90R02/06*60525*00

Suitable for:

Rear - SUBARU/Forester/2.5 Turbo STi 320BHP (2004-2008) Brake Pads: DB1521, Brake Caliper: Brembo Rear - SUBARU/Impreza/2.0 Turbo WRX STi 100 pcd (2002-2005) Brake Pads: DB1521, Brake Caliper: Brembo Rear - SUBARU/Impreza/2.0 Turbo WRX STi 114 pcd (2005-2006) Brake Pads: DB1521, Brake Caliper: Brembo Rear - SUBARU/Impreza/2.5 Turbo WRX STi (2006-2007) Brake Pads: DB1521, Brake Caliper: Brembo Rear - SUBARU/Impreza RB320/2.5 Turbo (2006-2007) Brake Pads: DB1521, Brake Caliper: Brembo
