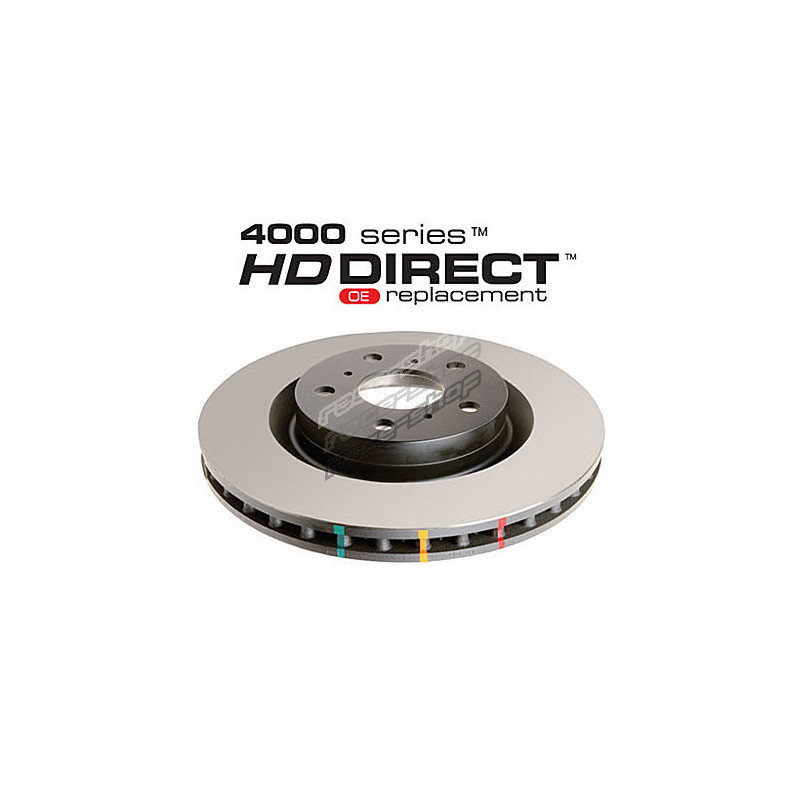

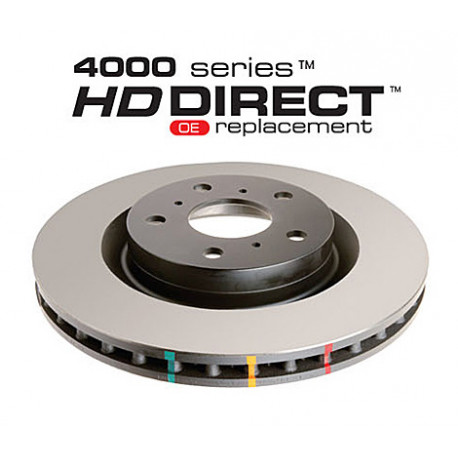

DBA 4000 series DBA42120 (2 pcs)

DBA 4000 Series HD Brake Rotors

The 4000 Series disc brake rotors are a direct replacement single-piece rotor designed for drivers who demand braking performance beyond standard OE levels.

The HD variant features a smooth OE-style rotor finish, making it ideal for drivers who want the benefits of the 4000 Series with an original equipment appearance—especially suitable for controlled race divisions.

Cast from high carbon alloyed iron and treated with DBA’s Thermal Stability Profiling (TSP), these rotors are engineered to withstand the heat and stress of repeated heavy braking.

DBA’s patented Kangaroo Paw ventilation system incorporates 144 diamond and teardrop-shaped pillars, delivering up to a 30% increase in surface area and a 20% improvement in cooling efficiency compared to traditional straight vane designs.

Technical information:

Diameter [mm]: 320
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 64
Minimum Thickness [mm]: 23
Thickness [mm]: 25
Height [mm]: 49
Pitch Circle [mm]: 107.95
ECE R90 number: E11*90R02/06*59754*00

Suitable for:

Front - FORD/Focus (Mk2)/2.5 Turbo ST 225BHP (2005-2011) Brake Pads: DB2176, Brake Caliper: ATE Front - FORD/Focus (Mk3)/2.0 TD 185BHP (2014-2018) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Focus (Mk3)/2.0 Turbo ST 250BHP (2011-2018) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/1.5 TD 120BHP (2016-2019) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/1.5 TD 120BHP Electric Handbrake (2016-2019) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/2.0 TD 140BHP (2013-2014) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/2.0 TD 150BHP FWD (2014-2019) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/2.0 TD 150BHP FWD Electric Handbrake (2014-2019) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/2.0 TD 161BHP (2013-2014) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/2.0 TD 180BHP 4WD (2014-2019) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Kuga (Mk2)/2.0 TD 180BHP 4WD Electric Handbrake (2014-2019) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Tourneo Connect/1.0 Turbo 100BHP (2013-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Tourneo Connect/1.5 TD 100BHP (2015-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Tourneo Connect/1.5 TD 120BHP (2015-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.0 Turbo 100BHP (2014-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.5 TD 101BHP (2015-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.5 TD 120BHP (2015-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.5 TD 75BHP (2015-) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.6 TD 115BHP (2014-2016) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.6 TD 75BHP (2014-2016) Brake Pads: DB2353, Brake Caliper: ATE Front - FORD/Transit Connect/1.6 TD 95BHP (2014-2016) Brake Pads: DB2353, Brake Caliper: ATE Front - VOLVO/C70/2.0 TD (2008-2013) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/C70/2.4 TD (2006-2013) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/C70 T5/2.5 Turbo (2006-2013) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/S40/2.0 TD (2006-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/S40/2.4 TD (2006-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/S40 T5/2.5 Turbo (2004-2005) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/S40 T5/2.5 Turbo (2005-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Cross Country D2/1.6 TD 115BHP (2012-) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Cross Country D3/2.0 TD 150BHP (2012-) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Cross Country D4/2.0 TD 190BHP (2012-) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Cross Country T3/1.6 Turbo 150BHP (2012-) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Cross Country T4/1.6 Turbo 180BHP (2012-) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Cross Country T5/2.5 Turbo 254BHP (2012-) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/1.5 Turbo 122BHP (2015-2019) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/1.5 Turbo 152BHP (2015-2019) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/1.6 TD (2012-2015) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/1.6 Turbo 150BHP (2012-2015) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/1.6 Turbo 180BHP (2012-2015) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/2.0 (2013-2019) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/2.0 TD (2012-2019) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/2.0 Turbo (2013-2019) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V40 Mk2/2.5 Turbo (2012-2019) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50/2.0 (2006-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50/2.0 TD (2005-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50/2.4 (2004-2005) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50/2.4 (2005-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50/2.4 TD (2006-2012) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50 T5/2.5 Turbo (2004-2005) Brake Pads: DB2176, Brake Caliper: ATE Front - VOLVO/V50 T5/2.5 Turbo (2005-2012) Brake Pads: DB2176, Brake Caliper: ATE
