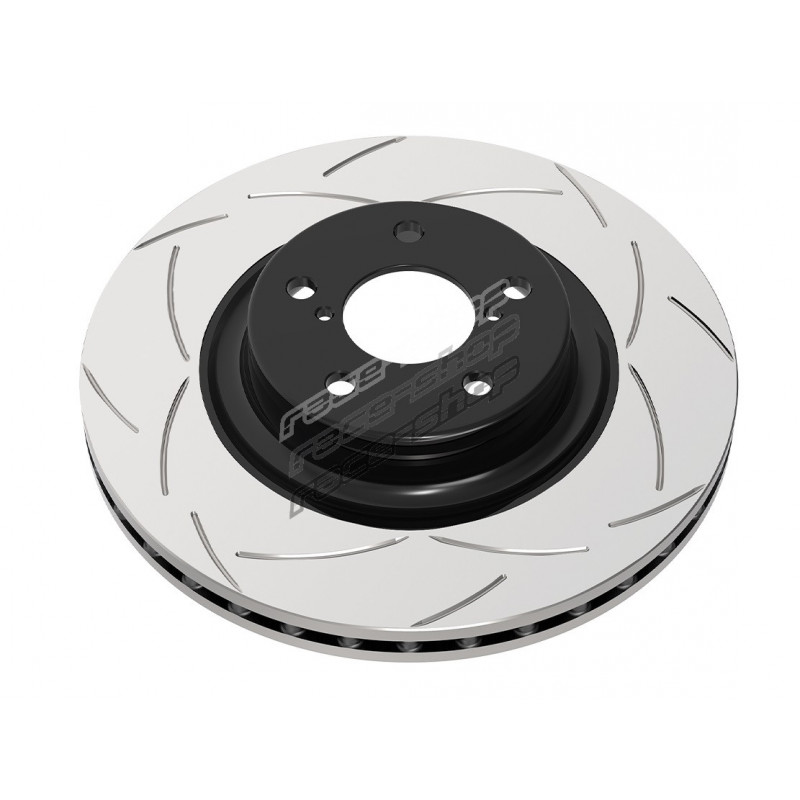

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 280
Disc Vent: Vented
Number of Holes: 5
Inner Diameter [mm]: 69
Minimum Thickness [mm]: 21,5
Thickness [mm]: 23
Height [mm]: 44.5
Stage: Stage 2
ECE R90 number: E11 90R-02C01704/72743

Suitable for:

Front - HYUNDAI/i-30 GD/1.4 (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.4 Electric Handbrake (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.4 TD (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.4 TD Electric Handbrake (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.6 (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.6 Electric Handbrake (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.6 TD (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 GD/1.6 TD Electric Handbrake (2012-2017) Brake Pads: DB2443, Front - HYUNDAI/i-30 PD/1.0 Turbo 120BHP (2017-) Brake Pads: DB2443, Front - HYUNDAI/i-30 PD/1.4 100BHP (2017-) Brake Pads: DB2443, Front - HYUNDAI/Kona/1.0 Turbo 120BHP (2017-) Brake Pads: DB2174, Brake Caliper: Mando Front - HYUNDAI/Kona/1.6 Hybrid 141BHP (2019-) Brake Pads: DB2174, Brake Caliper: Mando Front - HYUNDAI/Kona/1.6 TD 115BHP (2018-) Brake Pads: DB2174, Brake Caliper: Mando Front - HYUNDAI/Kona/1.6 TD 136BHP (2018-) Brake Pads: DB2174, Brake Caliper: Mando Front - HYUNDAI/Kona/1.6 Turbo 177BHP (2017-) Brake Pads: DB2174, Brake Caliper: Mando Front - HYUNDAI/Veloster/1.6 (2011-2015) Brake Pads: DB2443, Front - HYUNDAI/Veloster/1.6 (2015-2016) , Front - KIA/Cee'd (JD)/1.0 Turbo 100BHP (2015-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.0 Turbo 100BHP Electric Handbrake (2015-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.0 Turbo 118BHP (2015-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.0 Turbo 118BHP Electric Handbrake (2015-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.4 (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.4 Electric Handbrake (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.4 TD (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.4 TD Electric Handbrake (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.6 (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.6 Electric Handbrake (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.6 TD (2012-2018) Brake Pads: DB2443, Front - KIA/Cee'd (JD)/1.6 TD Electric Handbrake (2012-2018) Brake Pads: DB2443, Front - KIA/Pro-Cee'd (JD)/1.0 Turbo 118BHP (2015-2018) Brake Pads: DB2443, Front - KIA/Pro-Cee'd (JD)/1.0 Turbo 118BHP Electric Handbrake (2015-2018) Brake Pads: DB2443, Front - KIA/Pro-Cee'd (JD)/1.6 (2012-2018) Brake Pads: DB2443, Front - KIA/Pro-Cee'd (JD)/1.6 Electric Handbrake (2012-2018) Brake Pads: DB2443, Front - KIA/Pro-Cee'd (JD)/1.6 TD (2012-2018) Brake Pads: DB2443, Front - KIA/Pro-Cee'd (JD)/1.6 TD Electric Handbrake (2012-2018) Brake Pads: DB2443,
