ST Suspensions

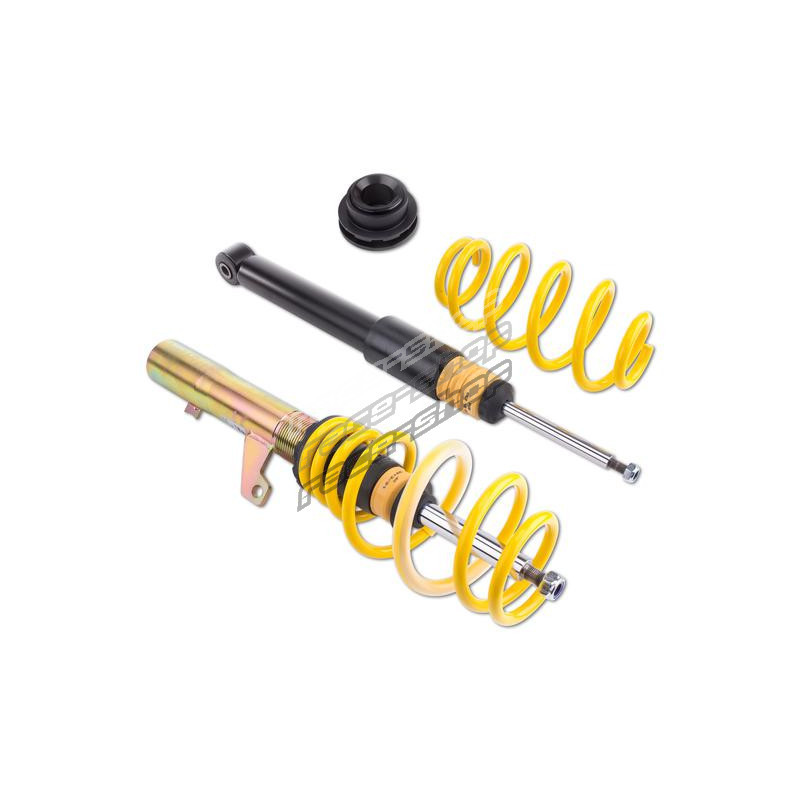

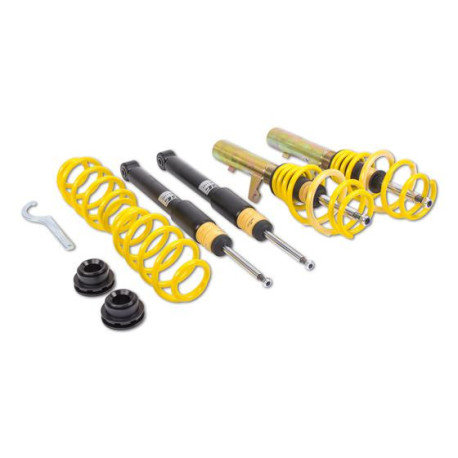

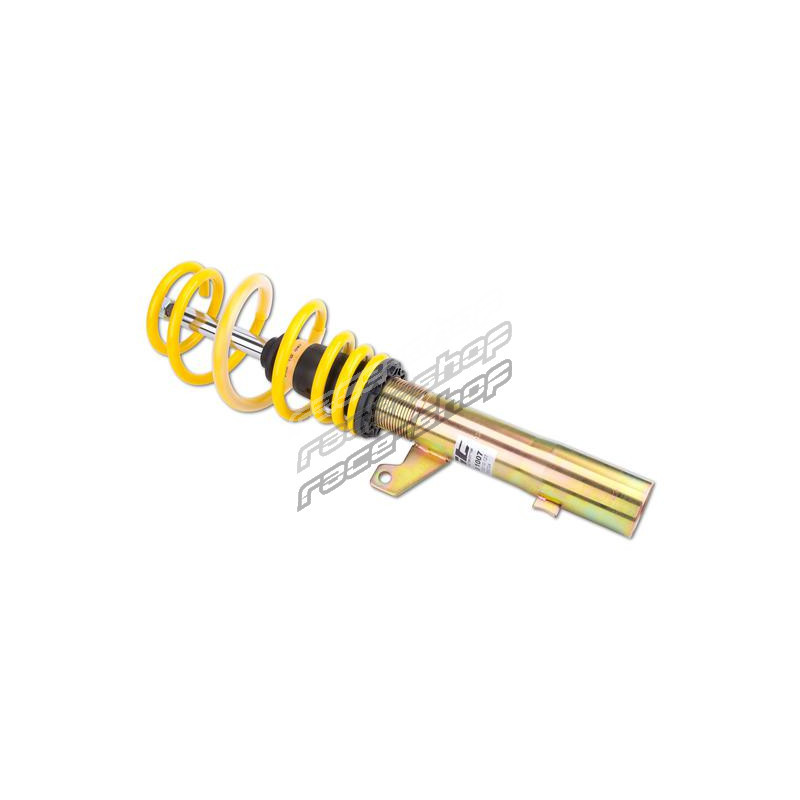

ST Performance coilovers for Audi A3 - type ST X

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: suspension strut Ø 55mm

Front axle lowering: 35-65mm

Rear axle lowering: 35-65mm

Nov izdelek

Dobavljivo po naročilu

Najkasneje na vašem domu: 21. 4.

963,40 € z DDV

ST-13210050_5

4250173324045

Povpraševanje o izdelku

Povpraševanje o izdelku

ST Performance coilovers for Audi A3 - type ST X

ST Performance coilovers for Audi A3 - type ST X

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: suspension strut Ø 55mm

Front axle lowering: 35-65mm

Rear axle lowering: 35-65mm

Vprašanje o tem izdelku pošljite lastniku trgovine.

* Obvezna polja

  ali  Prekliči

Notify me

Notify me about the stock

ST Performance coilovers for Audi A3 - type ST X

ST Performance coilovers for Audi A3 - type ST X

To be informed about product update via email, fill out the form.

* Required

  or  Cancel

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: suspension strut Ø 55mm

Front axle lowering: 35-65mm

Rear axle lowering: 35-65mm



ST X Coilover series with fixed damping

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know-how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily height-adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles.


Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers

  • Individual lowering within the tested adjustment range
  • Front and rear axle thread adjustment (when possible)
  • Galvanized coilover struts with additional coating for optimized corrosion protection
  • Complete solution with adjustable spring plate, spring system and bumpers with dust protection
  • Powerful twin-tube dampers with high-quality components for maximum longevity



Suitable for:

Make: Audi
Model: A3
Type: (8P) incl. Sportback
Year: 03/03-
Additional information: suspension strut Ø 55mm



Manufacturers note:

  • Excluding four wheel drive models.
  • Only for cars with a clamp diameter of 55 mm on the front axle.
  • At vehicles equipped with audi magnetic ride, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510124.
  •

    Technical information:

    Material: Galvanized steel
    Product line: Street Performance coilover kit
    Coilover version: ST X
    Damping adjustment: No
    Front axle load (FA): -1035kg
    Rear axle load (RA): -1005kg
    Front axle lowering (VA): 35-65mm
    Rear axle lowering (HA): 35-65mm



    Package content:

    Set FA coilover struts, RA springs with height adjustment + dampers





    Full coilover kit application:

    ManufacturerModelTypeEngineVehicle shapeFuelPerformanceCubic capacityCylinderFour wheel drive
    AUDIA3 (8P1) 05/2003-12/20138P11.2 TSIHatchbackPetrol77 KW1197 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.4 TFSIHatchbackPetrol92 KW1390 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.6 FSIHatchbackPetrol85 KW1598 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.6 TDIHatchbackDiesel66 KW1598 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.6 TDIHatchbackDiesel77 KW1598 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.6HatchbackPetrol75 KW1595 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.8 TFSIHatchbackPetrol118 KW1798 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P11.9 TDIHatchbackDiesel77 KW1896 ccm4 CylinderNo
    AUDIA3 (8P1) 05/2003-12/20138P12.0 FSIHatchbackPetrol110 KW1984 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.2 TSIHatchbackPetrol77 KW1197 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.4 TFSIHatchbackPetrol92 KW1390 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.6 FSIHatchbackPetrol85 KW1598 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.6 TDIHatchbackDiesel66 KW1598 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.6 TDIHatchbackDiesel77 KW1598 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.6HatchbackPetrol75 KW1595 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.8 TFSIHatchbackPetrol118 KW1798 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA1.9 TDIHatchbackDiesel77 KW1896 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA2.0 FSIHatchbackPetrol110 KW1984 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA2.0 TDIHatchbackDiesel100 KW1968 ccm4 CylinderNo
    AUDIA3 Sportback (8PA) 09/2004-12/20158PA2.0 TDIHatchbackDiesel104 KW1968 ccm4 CylinderNo
    AUDITT Roadster (8J9) 03/2007-06/20148J91.8 TFSIConvertiblePetrol118 KW1798 ccm4 CylinderNo
    AUDITT Roadster (8J9) 03/2007-06/20148J92.0 TFSIConvertiblePetrol147 KW1984 ccm4 CylinderNo
    AUDITT Roadster (8J9) 03/2007-06/20148J92.0 TFSIConvertiblePetrol155 KW1984 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.2 TSIHatchbackPetrol63 KW1197 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.2 TSIHatchbackPetrol77 KW1197 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.4 16VHatchbackPetrol55 KW1390 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.4 16VHatchbackPetrol59 KW1390 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.4 FSIHatchbackPetrol66 KW1390 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.4 TSIHatchbackPetrol90 KW1390 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.6 FSIHatchbackPetrol85 KW1598 ccm4 CylinderNo
    VWGOLF PLUS (5M1, 521) 12/2004-12/20135M1, 5211.6HatchbackPetrol75 KW1595 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.4 16VHatchbackPetrol55 KW1390 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.4 16VHatchbackPetrol59 KW1390 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.4 FSIHatchbackPetrol66 KW1390 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.4 TSIHatchbackPetrol103 KW1390 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.4 TSIHatchbackPetrol125 KW1390 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.4 TSIHatchbackPetrol90 KW1390 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.6 FSIHatchbackPetrol85 KW1598 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.6HatchbackPetrol75 KW1595 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K11.9 TDIHatchbackDiesel77 KW1896 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K12.0 FSIHatchbackPetrol110 KW1984 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K12.0 SDIHatchbackDiesel55 KW1968 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K12.0HatchbackPetrol85 KW1984 ccm4 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K12.5HatchbackPetrol112 KW2480 ccm5 CylinderNo
    VWGOLF V (1K1) 10/2003-02/20091K1RABBIT 2.5HatchbackPetrol125 KW2480 ccm5 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.4 TSIEstatePetrol103 KW1390 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.4 TSIEstatePetrol118 KW1390 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.4 TSIEstatePetrol125 KW1390 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.4 TSIEstatePetrol90 KW1390 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.4EstatePetrol59 KW1390 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.6EstatePetrol75 KW1595 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K51.9 TDIEstateDiesel77 KW1896 ccm4 CylinderNo
    VWGOLF V Estate (1K5) 01/2007-07/20091K52.5EstatePetrol125 KW2480 ccm5 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ51.2 TSIEstatePetrol63 KW1197 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ51.2 TSIEstatePetrol77 KW1197 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ51.4 TSIEstatePetrol90 KW1390 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ51.4EstatePetrol59 KW1390 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ51.6EstatePetrol75 KW1595 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ52.0 TDIEstateDiesel100 KW1968 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ52.0 TDIEstateDiesel81 KW1968 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ52.0EstatePetrol85 KW1984 ccm4 CylinderNo
    VWGOLF VI Estate (AJ5) 07/2009-07/2014AJ52.5EstatePetrol125 KW2480 ccm5 CylinderNo
