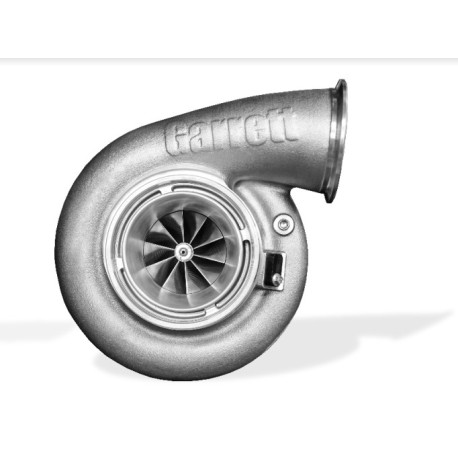

GARRETT 860778-5006S SUPERCORE SERIES G42-1450

Garrett G42-1450

Horsepower: 525-1450

Displacement: 2.0L-8.0L

• G Series compressor aero (10 blade)
• 131 Lbs/Min compressor flow
• 0.85 A/R comp housing
• V-band comp outlet 4.2 inch / 107mm (Same as GTX42)
• 5 inch / 127mm compressor inlet (Same as GTX42)
• Water fittings included (-6an fittings *same as G25)
• Stainless steel turbine housings rated up to 950 deg C

Technology and Features

Compressor Housing

Garrett G42-1450 available only with standard housing

• (A) Fully machined ported shroud to help reduce compressor surge.
• (B) A fully machined speed sensor port provides racers the option to add a speed sensor. Comparing shaft speed and boost levels on a compressor map will help determine ideal operating conditions to ensure peak power over a wider operating range.
• (C ) The fully machined pressure port.

* Sold separately, the Garrett G Series speed sensor kits have new part

numbers and are not compatible with GT/GTX kits. Easier to install and will

not need to be adjusted for length like previous sensors. Simply remove bolt

that secures the plug, insert the speed sensor and re-tighten the bolt.

Speed Sensor Kits G Series Street Kit: 781328-0003 (includes speed sensor, wire harness, gauge) G Series Pro Kit: 781328-0004 (includes speed sensor, wire harness)

WARNING: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits.  Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers  781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART MODULE ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.

Product category: Turbocharger
