GARRETT 880693-5001S SUPER CORE TURBOCHARGER WITHOUT TURBINE HOUSING FOR GARRETT G30-660

Description GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660

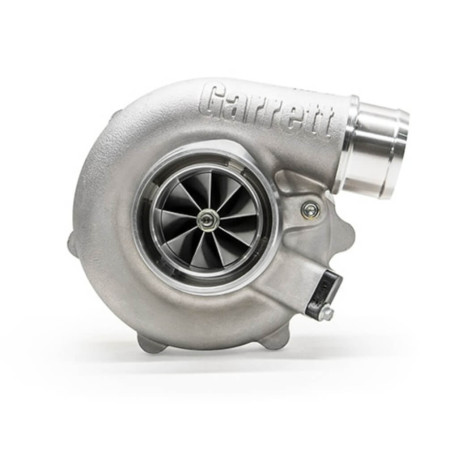

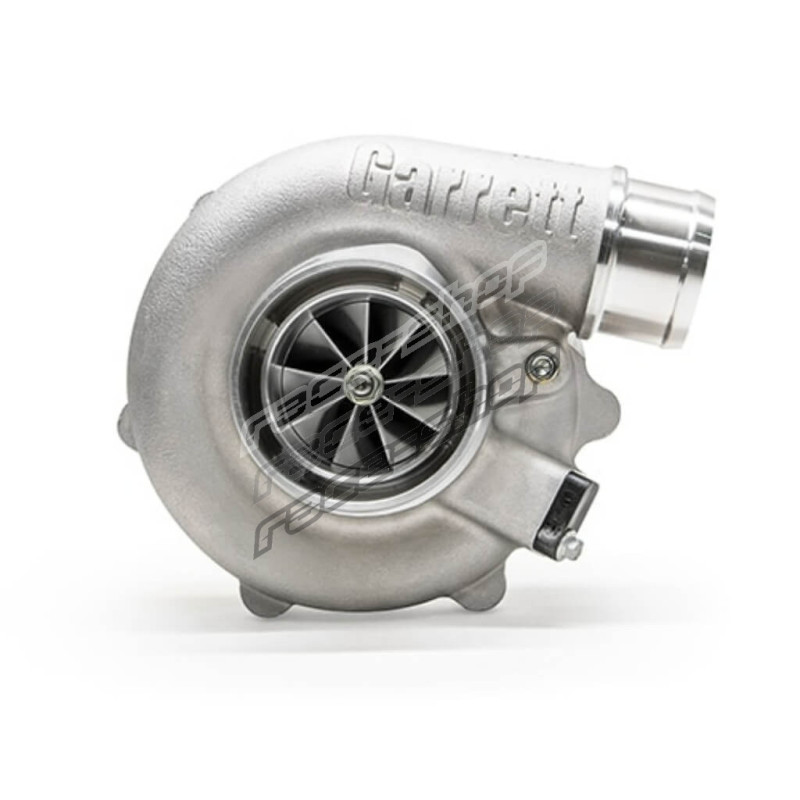

The GARRETT 880693-5001S Super Core is a G30-660 turbocharger core unit supplied without a turbine housing. Built with the latest Garrett G-Series innovations, it combines cutting-edge aerodynamics and high-performance materials in a compact design. The forged milled compressor wheel is CFD-optimized for maximum efficiency, while the high-flow compressor housing integrates a speed sensor port for precise monitoring. Dual ceramic ball bearings ensure rapid spool and durability, with additional support from water and oil cooling. The MAR-M 1050 C turbine wheel offers exceptional thermal resistance, making this turbo ideal for motorsport and high-performance applications.

• CFD-optimized, forged milled compressor wheel
• High-flow compressor housing with integrated speed sensor port
• Standard (clockwise) rotation
• Dual ceramic ball bearing cartridges
• Includes -4AN oil restrictor fitting with 1 mm orifice
• Four large water jacket ports for enhanced cooling
• Twin piston rings on compressor and turbine sides
• MAR-M 1050 C turbine wheel for high-temperature durability
• Water- and oil-cooled bearing housing

Specifications:

• Compressor Inducer: 54 mm
• Compressor Exducer: 67 mm
• Turbine Inducer: 60 mm
• Turbine Exducer: 55 mm

Product category: Turbocharger
