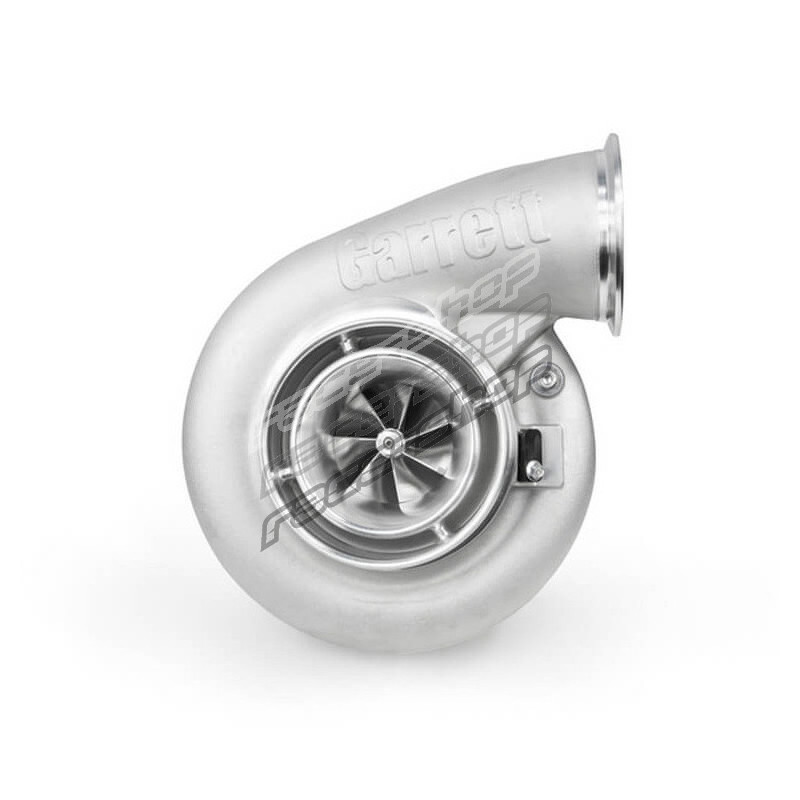

Garrett 934173-5005S Supercore G-X Race GXR40-64, Trim 53

Garrett GXR40-64 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GXR (G-X Race) turbochargers.

Reputations are forged through skill, speed and consistency.

Racers push their skills, their cars, and their turbos to extreme limits.

When the stakes are high, only the best turbo will take you to the finish line.

Garrett G-XRace is built for those who know that winning comes from being the quickest, pass after pass, race after race.

Specifications

• Frame: GXR40
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 64.9 mm inducer, 88 mm exducer, 53 trim, 0.85 A/R
• Turbine wheel: 77 mm inducer, 70 mm exducer, 84 trim
• Power: up to 1150 HP
• Displacement: 2.0-6.0 L

Fits & compatible parts

• Compatible turbochargers: G40-900

Features

• Product Features
• XBoost Technology increases power and performance
• +23% compressor flow (GXR40-64 compared to G40-900)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
