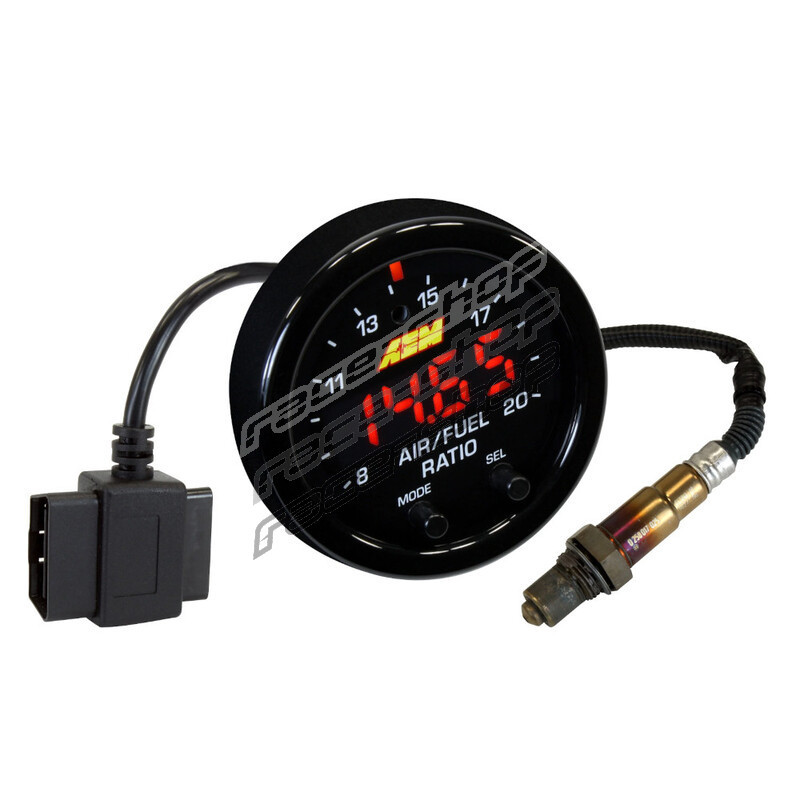

AEM X-Series Wideband UEGO OBDII AFR Gauge

A 52mm (2-1/16") gauge housing ensures it fits in most gauge pods and can be remotely mounted virtually anywhere. All AEM digital gauges feature a 0-5v analog output for use with data loggers and almost any engine management system. Each gauge comes with black and silver bezels and black and white faceplates for multiple color combinations and a custom look (a black Lambda faceplate and black and white Air/Fuel Ratio faceplates).

The Bosch UEGO sensor gives the controller its speed and accuracy. The Bosch 4.9 LSU sensor used in the 30-4110 AEM Wideband UEGO AFR Controller Gauge has a faster light-off time and draws less current than the 4.2 LSU sensor used with AEM’s discontinued 30-4100 Wideband UEGO Controller Gauge. The 4.9 LSU sensor features the same fuel compatibility as the 4.2 LSU and NEVER requires free-air calibration when used with AEM’s 30-4110 Wideband UEGO AFR Gauge. The 30-4110’s 4.9 LSU sensor uses a different connector than the connector used with the 4.2 LSU sensors included with the original, discontinued 30-4100 gauge controller. The sensors are not interchangeable between the two gauge controllers, including changing connectors on the gauges.

Specifications:

• Analyse your air/fuel ratio
• Compact 52mm design for easy installation, 20mm depth
• Includes FAE 30-2404 wideband sensor
• Digital display and LED backlight (52 mm)
• OBDII, EFILive Flashscan V2, 0-5V and RS232 outputs
• Petrol, E85, Ethanol and Methanol compatible
• AEM part number : 30-0334

Includes:

• 52mm AEM gauge
• Includes FAE 30-2404 wideband sensor
• 52mm (2-1/16”) gauge housing
• Wiring harness and cabling
• Installation instructions

Fuels compatibility:

• Gauge Display/0-5V Output
• Gasoline
• E85
• Ethanol
• Methanol
• Lambda values from 0.55 to 2

Whatever fuel you will be running, the AFR values will always be displayed in "gasoline" mode (Lambda 1 = 14.7).
