When you want no noise, no nonsense just performance!
THE SIMPLE & ESSENTIAL MOD FOR 30% QUICKER BOOST!

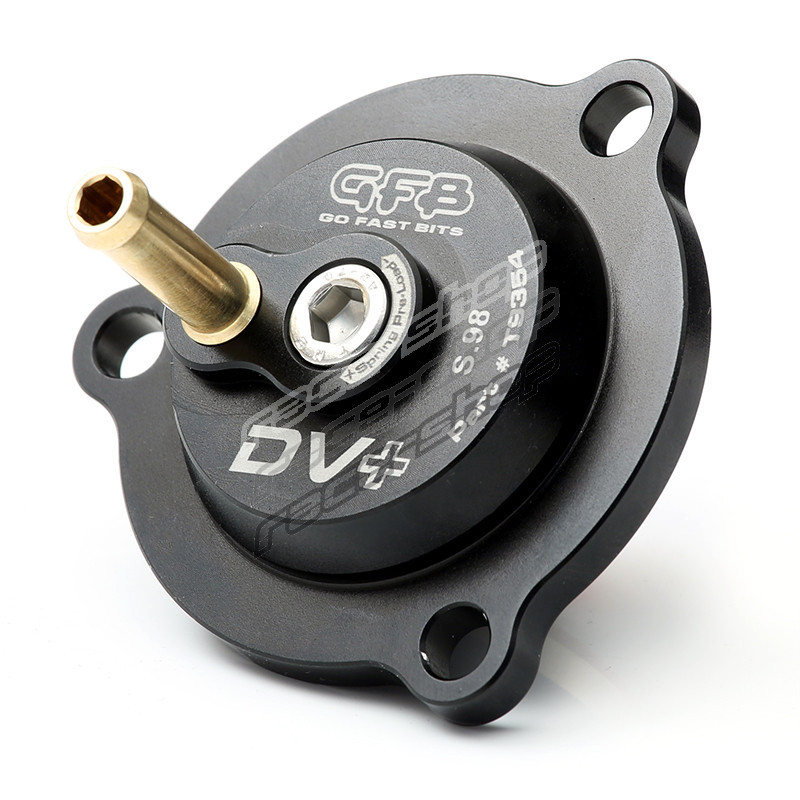

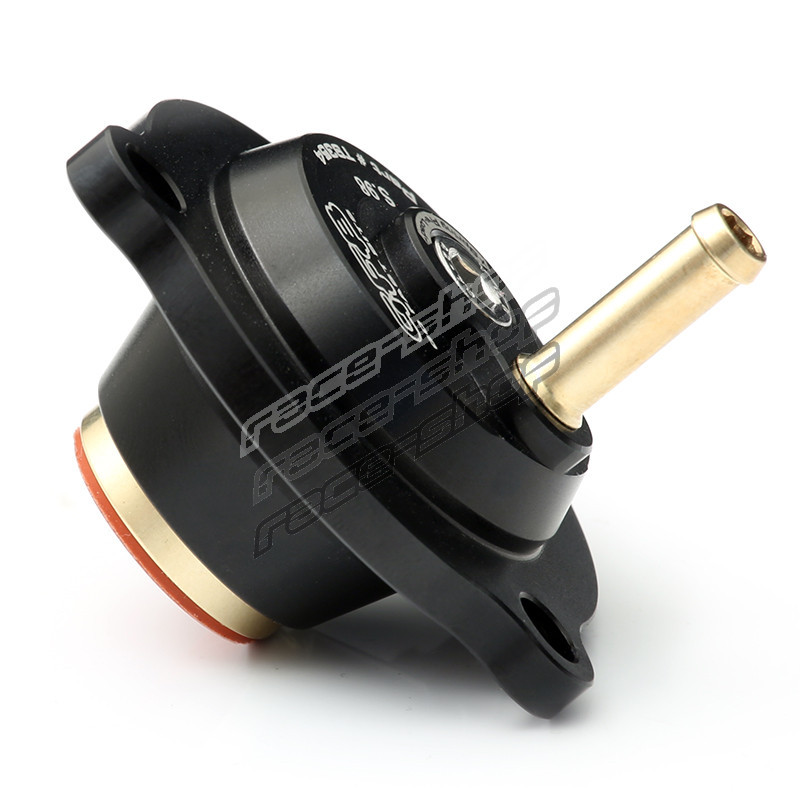

The T9354 is a fully recirculating direct factory replacement for the pneumatic diaphragm type BPV (Bypass Valve) used on Ford, Volvo, Porsche, & Borg Warner Turbos – when you want the performance WITHOUT the noise!

Using GFB’s TMS technology the T9354 can help return the engine to peak boost up to 30% faster than a factory diverter valve when shifting gears

The factory BPV (bypass valve) has a couple of key shortcomings, in construction and operation.

First of all, tuned engines running high boost also produce a lot of heat in the charge air. Because the BPV is situated right on the compressor, it is subjected to the hottest part of the intake charge, and the heat from the compressor cover itself. This can cause the factory diaphragm to rupture, and if that happens and goes undetected for a while, it can cause damage to the turbo, as the ECU will try to compensate for the lost boost pressure by increasing turbo speed.

Second, the operation of the factory BPV is not aimed at throttle response. Because of the soft spring and the solenoid valve that is in-line with the vacuum hose, it can only operate in two states – fully open, or fully shut.

The factory BPV does not have the ability to open and close progressively in response to the existing boost pressure, and throttle response suffers when the valve vents more than it should in situations where you are not fully lifting the throttle. The T9354 solves these issues using proven metal and silicone construction of the valve components, meaning the DV+ will last a lifetime regardless of the harsh conditions.

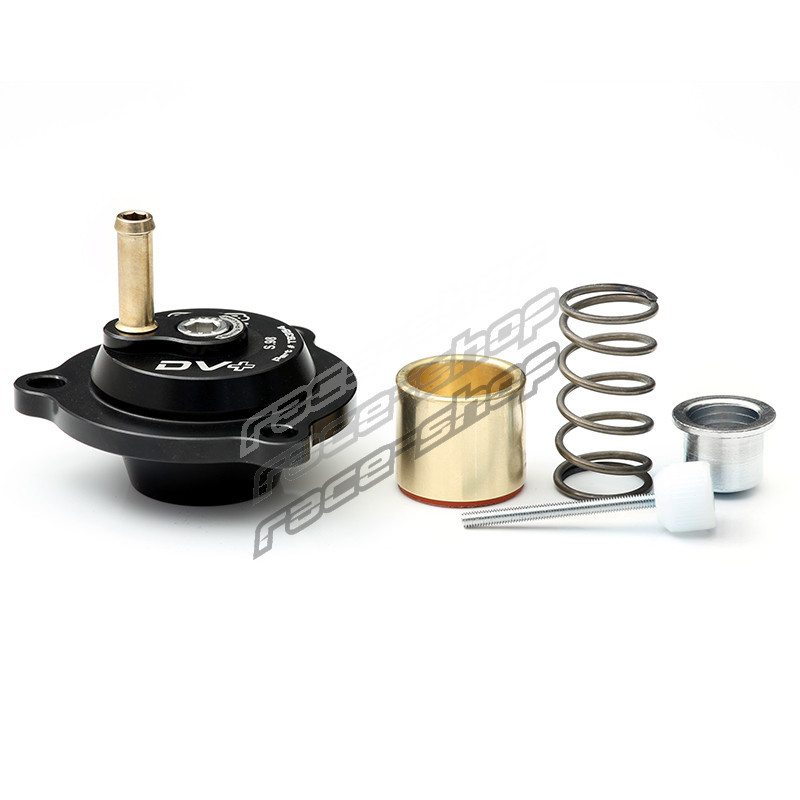

As for performance, because the DV+ features a carefully selected spring rate AND spring pre-load adjustment, it can operate progressively to help sharpen throttle response. This is the basis of GFB’s TMS principle, which has been shown to reduce the time to peak boost on gearshift by 30%. This benefit is also particularly noticeable in situations where you are modulating the throttle to balance the car in a corner.

By retaining the factory ECU control and recirculating the vented air, the DV+ is a purely performance-oriented product that offers the following benefits:

• Sharper throttle response
• Faster boost recovery on gearshift
• Solves boost leaking issues
• Built to last

Application:

FORD AUSTRALIA Falcon FG Ecoboost 2.0L 2012-2014
FORD AUSTRALIA Falcon FGX Ecoboost 2.0L 2014-On
FORD AUSTRALIA Focus XR5/RS 2.5L Turbo 2006-2012
FORD AUSTRALIA Focus ST 2.0L EcoBoost (Mk3 2012-18)
FORD AUSTRALIA Focus XR5/RS 2.5L Turbo 2006-2012
PORSCHE 911 All 997 Twin Turbo Models 2006-2012
PORSCHE 911 All 997 Twin Turbo Models 2006-2012
PORSCHE 911 All 997 Twin Turbo Models 2006-2012
PORSCHE 911 All 997 Twin Turbo Models 2006-2012
VOLVO C30 T5 2.5L Turbo 2006-2012
VOLVO C30 T5 2.5L Turbo 2006-2012
VOLVO C70 T5 2.5L Turbo 2006-2012
VOLVO C70 T5 2.5L Turbo 2006-2012
VOLVO S40 T5 2.5L Turbo 2004-2012
VOLVO S40 T5 2.5L Turbo 2004-2012
VOLVO V50 T5 2.5L Turbo 2004-2010
VOLVO V50 T5 2.5L Turbo 2004-2010
VOLVO V40 T5 2.5L 2012-14
FORD S-Max 2.5T (2006-2011)
ALFA ROMEO Giulietta 1.75TBi QV 2010-2016
OPEL Corsa OPC/VXR 1.6T 2007-2014
FORD Focus ST/RS 2.5L Turbo 2006-2012
FORD Focus ST/RS 2.5L Turbo 2006-2012
FORD Focus ST 2.0L Ecoboost 2012-2018
VOLVO S60 & V60 T5 2.0T 2010-2013
VOLVO XC60 T5 2.0T 2012-2017
LAND ROVER Evoque 2.0T 2011-2015 (Petrol Only)
LAND ROVER Freelander II 2.0T 2013-2015
FORD AUSTRALIA Mondeo 2.0 Ecoboost 2010-On
CHEVROLET Cobalt SS (Turbocharged Only) 2008-2010
ALFA ROMEO 4C 1.75TBi (2013-2020)
VOLVO S60 & V60 T4 1.6T 2010-2015
