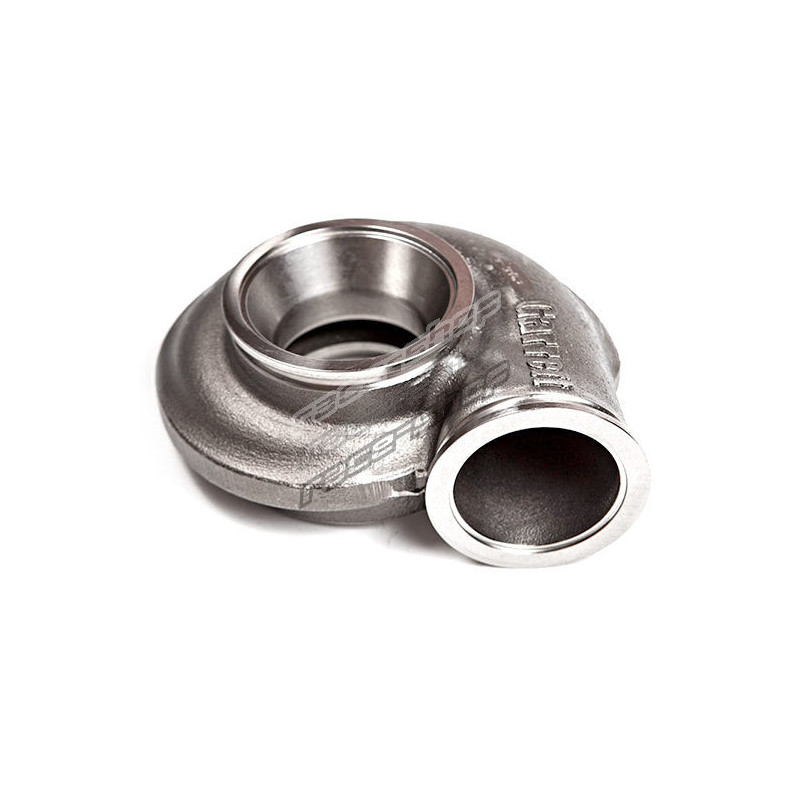

Garrett 740902-0034 Turbine Housing GTX30R, 1.01 A/R, V-Band

Garrett turbine housing for GTX30R-frame turbochargers, 1.01 A/R with V-Band inlet flange, Ni-Resist material.

Garrett Undivided V-band inlet & outlet turbine housing in Ni-Resist material; for GT30 and GTX30 series turbochargers. The turbine housing is 1.01 A/R and 3-inch Garrett GT V-Band outlet.

The turbine housing includes a turbine inlet clamp and turbine outlet clamp.

Specifications

• Frame: GTX30R
• Material: Ni-Resist
• A/R: 1.01
• Inlet flange: V-Band
• Outlet flange: V-Band
• Rotation: standard
• Wastegate: external / free-float
• Scroll: single
• Configuration: open volute

Fits & compatible parts

• Compatible turbochargers: GTX30, GT3071R, GT3076R, GT3082R, GTX3067R, GTX3071R, GTX3076R

In the box

• (1 unit) Ni-Resist Garrett turbine housing
• (1 unit) V-band clamp for turbine inlet
• (1 unit) V-band clamp for turbine outlet
