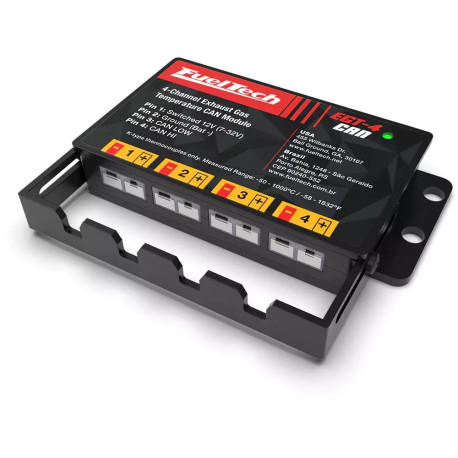

FuelTech EGT-4 CAN

A 4-channel signal conditioner with CAN bus communication for PowerFT ECU, it can be used to read EGT's, CHT's, oil, air, water or any other temperature using a K-type thermocouple.
It acts as an input expander for the PowerFT ECU, freeing up 4 white input channels that can be used for other purposes.
With the ability to use up to 4 EGT-4 modules in one installation, up to 16 different channels will be available for all kinds of data acquisition.
Compatible with PowerFT's ECUs (FT450, FT550, FT600, FT500LITE and FT 550LITE).
PACKAGES
V8 / 2 units, harnesses and 8 sensors:

w/ 2 harnesses
2 of each 42""/36""/30""/24"" thermocouple sensor included
Add a second EGT-4 CAN unit
6 cylinders / 2 units, harnesses and 6 sensors:

w/ 2 harnesses
48""/42""/36""/30""/24""/18"" Thermocouple sensors included
Add a second EGT-4 CAN unit
4 cylinders / harness and 4 sensors:

with harness
42""/36""/30""/24"" Thermocouple sensors included
4 rotors / harness and 4 sensors:

w/ bundle
4 thermocouple sensors 36"" included
3 rotors / harness and 3 sensors:

w/ bundle
3 of 36" thermocouple sensors included
2 rotors / harness and 2 sensors:

with harness
2 of 36" thermocouple sensors included

TECHNICAL DESCRIPTION

Inputs: 4 K-type thermocouple inputs
Outputs: 1 CAN
Dimensions:
EGT-4 CAN : 4.33 x 2.28 x 0.7 in
EGT-4 CAN packaging : 8.78 x 6.38 x 2.36 in.
Weight:
EGT-4 CAN : 4.87 oz
EGT-4 CAN Packaging without harness 78.75 in: 12.13 oz
Package Contents:
1 EGT-4 CAN
1 Installation and operating instructions
Warranty:
Worldwide: 1 year"
