Ford Fiesta ST MK8/Ford Puma ST Indukcijski komplet

The FMINDK38 is the cold air induction system for Ford’s latest generation 1.5-liter 3-cylinder ST engine. Like with all manufacturers in recent times the need to make smaller engines more efficient in more powerful has been an engineer’s top priority, this then creates a problem za aftermarket manufacturers to improve what is already fitted to the vehicle, nevertheless this hasn’t stopped us at Forge Motorsport.

A large amount of knowledge in knowhow from past development with all Ford models was available to us, however this is a totally new power unit in we needed to spend an extensive amount of testing time to ensure we ended up with a product that gives genuine improvements over the standard air box.

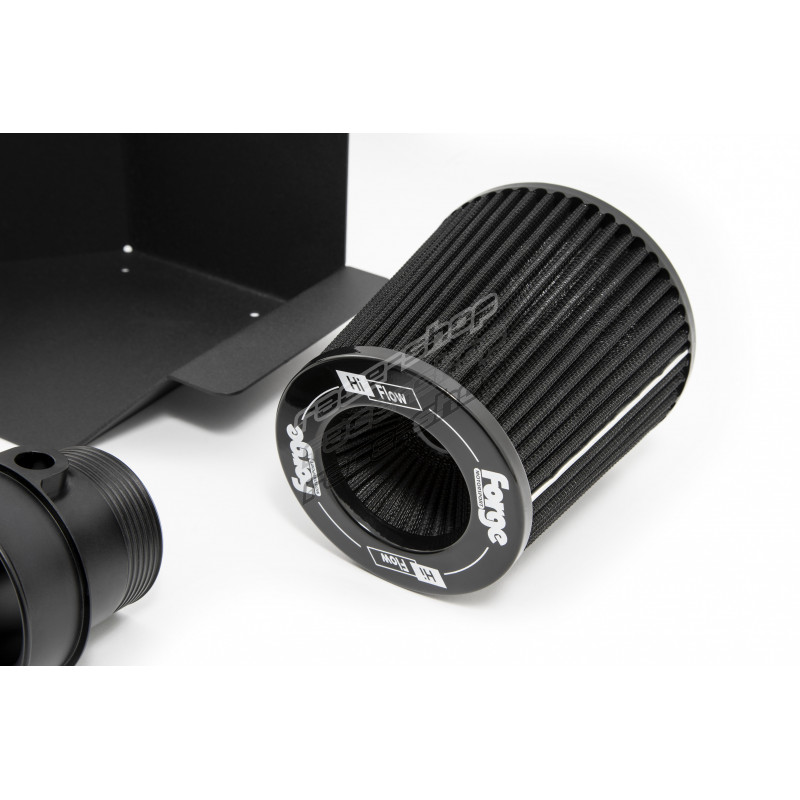

The choice of filter was decided after weeks of real-world testing in hours on the dyno experimenting with different filter options. We found that our Forge pleated filter worked best with an increase in power in torque while maintaining the best Filtracija properties, the build quality of the filter is superb in carries a limited lifetime warranty. This performance filter has been designed with a high quality silicone coupling in W2 Stainless Steel hose clamps to join the anodized črna machined billet velocity stack. The filter is made using a high quality, high flow, synthetic nanofiber Filtracija media which is pleated to maximise surface area in in turn increase air flow.

The use of the velocity stack MAF sensor housing maximises as much smooth air flow as possible. Our skilled CAD engineers have simulated different MAF sensor housing models to create the best design for this kit. The illustrations below demonstrate the benefit of using velocity stack science in show the smoothed air flow into the MAF sensor housing in inlet tract from the air filter.

With the combination of both the filter in MAF sensor housing we saw total gains of 4bhp however this only tells half the story, if you study the data from the dyno graph you can see the increase in torque from 1500-3000 RPM in again at 4500 until the red line, in fact at 2200 RPM gains of 20NM are achieved. This is also the same with the BHP power figures, you are seeing gains sooner in at the latter stages of the rev range, making the engine perform stronger when you need it to.  On a tuned vehicle this combination is an essential purchase as the OEM air box is found to be too restrictive to achieve the optimum power figures in smooth power delivery.

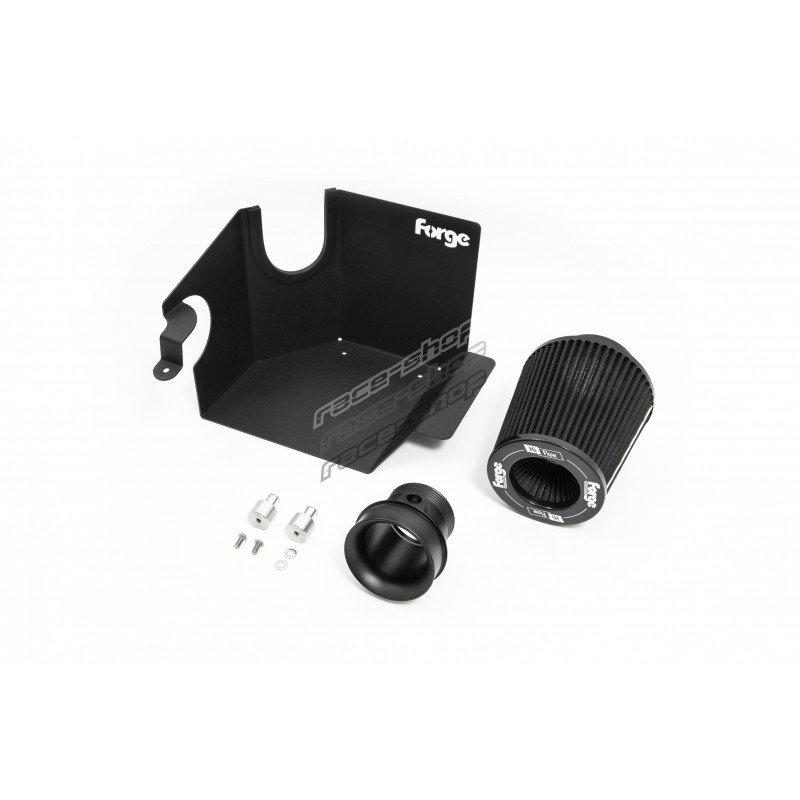

As a bi-product from FMINDK38 the acoustics from the 1.5 engine have been improved, there is now a purposeful induction roar under hard acceleration in a very addictive turbo flutter when you lift off the throttle. Not only to improve the aesthetics but to aid as a heat defence from the hot engine, we have provided a laser cut in powder coated aluminium shield, this surrounds the filter in incorporates the OEM air ducting to direct cold air to the intake.

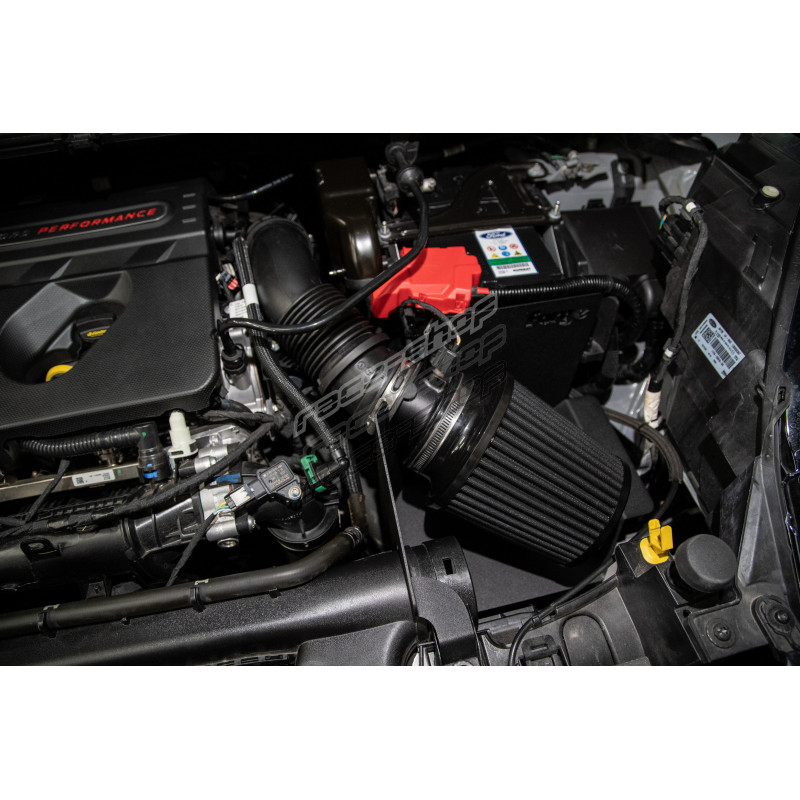

This Komplet can be installed to the OEM intake pipe or can be paired with our own silicone intake pipe FMINLH21 (Coming Soon), the key here is to further smooth the airflow to the turbo in eliminate any metal pipework as this is susceptible to greater heat soak in a potential loss in power.

A commonly asked question is will this fit any other aftermarket or the inlet hose intake? The answer is yes it will fit other manufacturers inlet hoses in fits to the original Ford inlet hose.

• MAF Boss Manufactured from 6082 aerospace grade aluminium.
• črna anodised & powder coating for ultimate protection and durability.
• Forge Pleated performance air filter which has been designed with a high quality, high flow, synthetic nanofiber Filtracija media which is pleated to maximise surface area in in turn increase air flow.
• No engine management lights (EML)
• Increased air flow
• Limited Lifetime warranty
