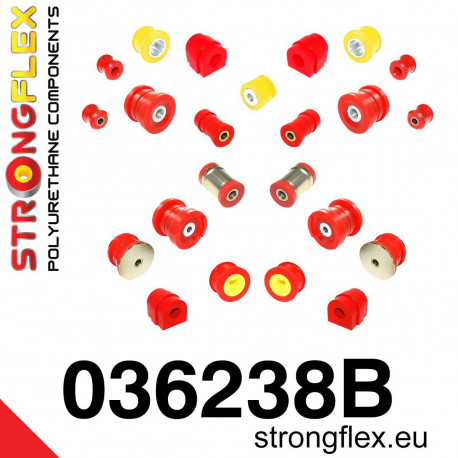

STRONGFLEX - 036238B: Full suspension bush kit

Ref: 036238B

Name: Full suspension bush kit

Fit:

BMW E46 M3

Include:

2 x 031248B Front anti roll bar bush

Diameters:

21,22,23,24,25,26,27,30mm

2 x 031516B Front wishbone rear bush 60mm

2 x 031173B Rear trailing arm front bush

2 x 031174B Rear control arm upper inner bush

2 x 031176B Rear control arm lower inner bush

2 x 031586B Rear anti roll bar bush

Diameters:

11,12,13,14,15,16,18,21,22,23mm

2 x 031413B Rear subframe front bush

2 x 031414B Rear subframe rear bush

1 x 031898A Rear differential - front mount bush M3 SPORT

2 x 031899A Rear differential - rear mount bush M3 SPORT

2 x 031962B Rear anti roll bar link to anti roll bar bush

2 x 031963B Rear anti roll bar link to arm bush

Pcs/prod: 23

Required/car: 1

Diagrams:

D0320

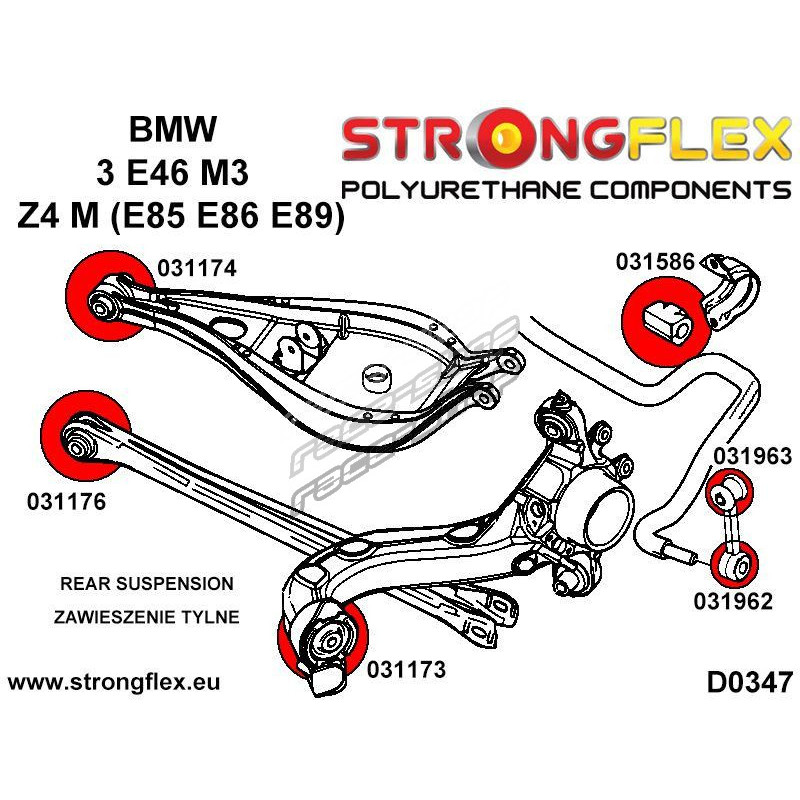

D0347

D0340

NOTE!

Some bushings in the set are YELLOW (90ShA) because the original bushings are made of hard rubber.

The use of RED (80 SHA) on some arms can have a negative effect on driving.

Hardness: 80ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
