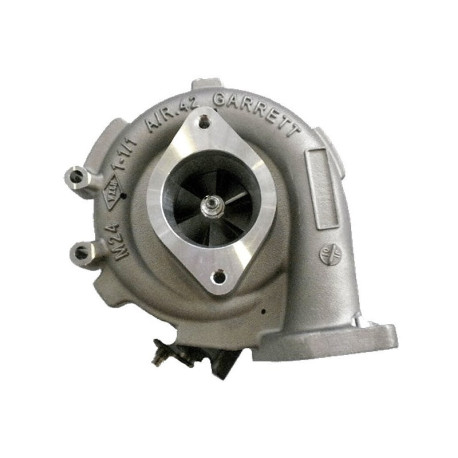

GARRETT 836026-5004S TURBOCHARGER GT2860R TRIM 55 A/R 0.42

Ball bearing

Oil & Water cooled bearign system

T25 turbine inlet flange with threaded bolt holes instead of traditional through holes.

Turbine housing has a unique "compact" 5-bolt outlet that is not interchangeable with traditional T25 5-bolt outlets.

Turbine housing is cast from high-nickel "Ni-Resist" material for extreme applications.

Turbine wheel is cast from "Inconel" material for extreme applications.

Direct replacement upgrade turbocharger for GT2556R (702987-0007) used on Nissan Skyline R34 GT-R.

Great size for applications w/packing constrains.

Ideal for smaller displacement engines making up to 360 Hp.

Turbine housing option available

• Turbo Part Number | Model | Turbine side | Compressor side
• New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R
• 836026-5004S | 707160-5007S | GT2860R | 53.8 | 62 | .64 | 60.0 | 44.5 | 55 | .42

C.H.R.A. Part Number

• New Part CHRA | Old Part CHRA
• 835998-5003S | 446179-5054S

Applicable Garrett P/N's:

TBO - 707160-0007

CHRA - 446179-0054

707160-5007

707160-07

707160-5007S

836026-4

836026-5004

836026-04

Product category: Turbocharger
