CANchecked sensor Oil/Fuel Pressur Sensor - M10x1

Electronic pressure sensor for oil/fuel pressure compatible with various displays and gauges, MFD15, MFD28, MFD32, and aftermarket fuel injection systems. Due to high demand, we now offer the electronic oil and fuel pressure sensor. This sensor can measure up to 10bar  (145psi) and features an M10 x 1mm external thread.

Key features of the Oil/Fuel Pressure Sensor:

• Highly accurate pressure sensor used in mass-produced vehicles
• Measurement range from 0 to 10 bar
• M10x1 thread

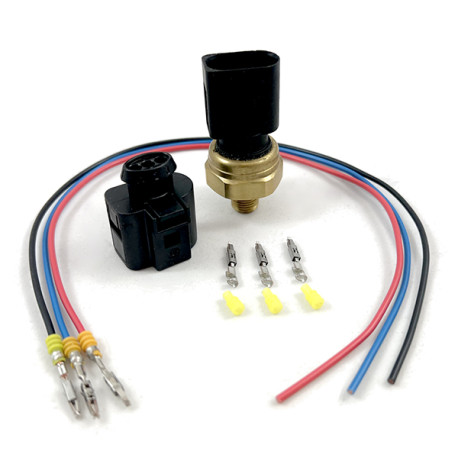

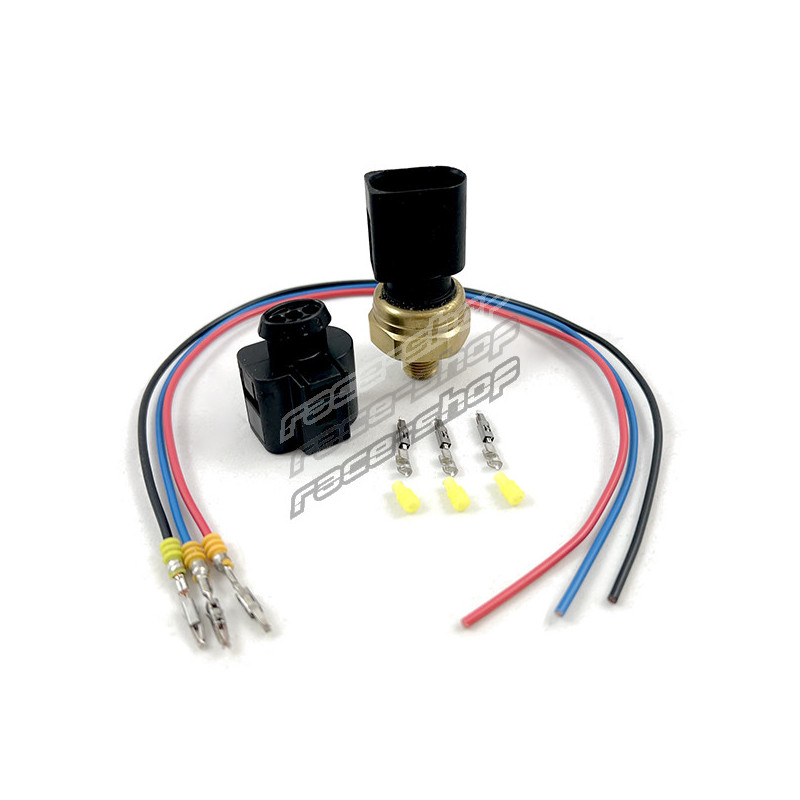

Package includes:

• Pressure Sensor for Oil/Fuel/Water
• Connector plug
• 3 pre-crimped connection cables
• 4 pins + gaskets for self-crimping
• Can be used for oil pressure, fuel pressure, and water pressure

Connector pin assignment:

1. Ground
2. Signal
3. 5V

Calibration curve: 0 volts = -1.25 bar 5 volts = 11.25 bar

Order now and get the CANchecked Dsiplay Oil/Fuel Pressure Sensor to accurately measure oil, fuel, or water pressure. Enhance your monitoring capabilities and ensure optimal engine performance. Trust in the quality and reliability of our products.
