TA-Technix airride kit with air management for Opel Tigra A Typ S93

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

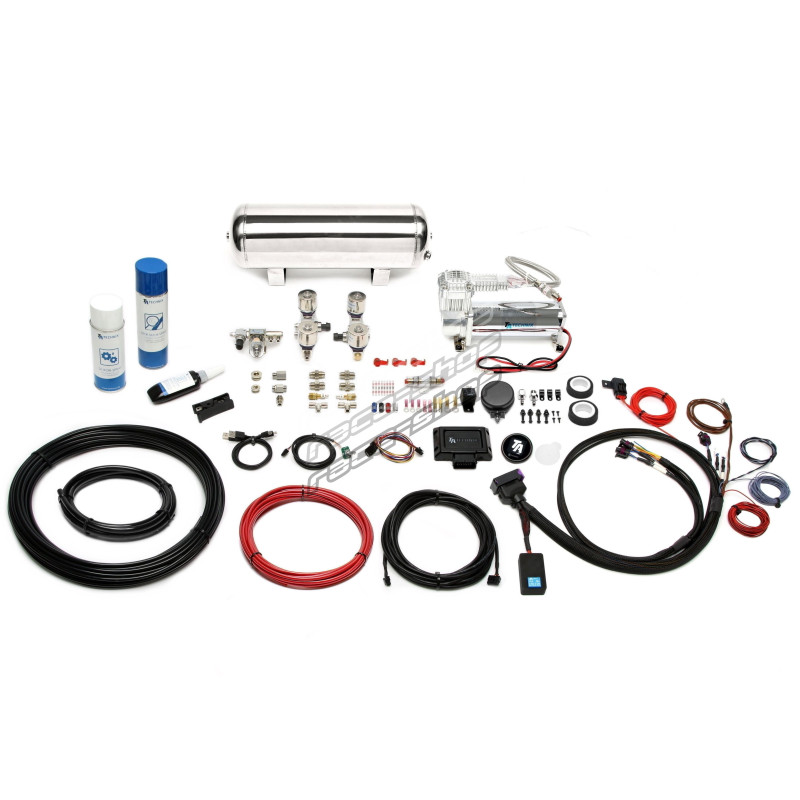

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 11.5 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Opel Corsa A
year of construction 1982 - 1993
Opel Corsa B, type S93
year of construction 1993 - 2000
Opel Tigra A, model S93
year of construction 1994 - 2000
maximum front axle load: 845kg
maximum rear axle load: 720kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

Excluding box models + Corsa A-TR models

Axle:

-

KeyType number:

532,535,538,539,540,541,542,543,544,545,546,547,1837,1838,1839,1840,1841,1842,3875,3876,4078,4079,5535,7100,7101,7102,7103,7863,8576,9012,9606,15072,16181,16638,16639,16640,16641,18869,20181,54924,55744
