TA-Technix airride kit with air management for Honda CRX III Typ EH EG

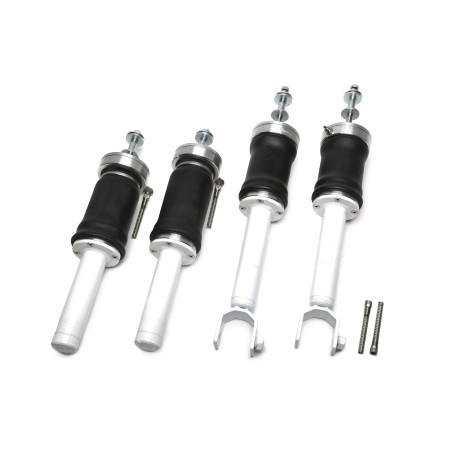

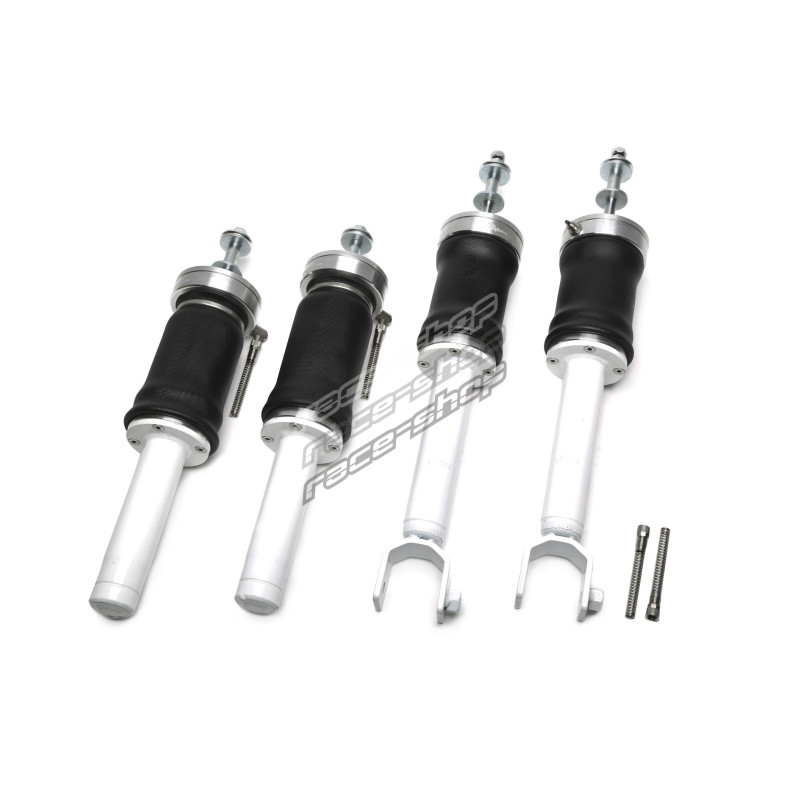

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
for air suspension / airride
Honda Civic V Hatchback, Type EG
EG3,4,5,6
year of construction 1991 - 1995
Honda Civic V notchback, type EG, EH
EG8,9, EH9
Year of manufacture 1991 - 1995
Honda Civic V Coupe, Type EJ
EJ1,2,6, incl. Vtec
Year of construction 08.1993 - 1996
Honda Civic VI Coupe, Type EJ, EM
1.6i + 1.6i Vtec
Year of construction 1996 - 2000
Honda Civic VI Hatchback, Type EJ, EK
EJ9,EK1,3,4
Year of construction 1995 - 2001
Honda Civic VI Notchback, Type EJ, EK
EJ9, EK3,4 incl. Vtec
Year of manufacture 1995 - 2001
Honda CRX III, Type EH, EG
EH6, EG2
year of construction 1992 - 1998
maximum front axle load: 860kg
maximum rear axle load: 820kg

Approval:

Including parts report (§19.3)

Implementation notes:

Installation information on EG + EH models for the front axle:
Adaptation works for brake hose holders are required

Installation instructions for the rear axle:
52mm or 46mm diameter / distance
Appropriate adapters are included in delivery
Not suitable for models EJ9, EK1, 3+4 (here the rear wishbones must also be replaced)

Notes:

Installation instructions for EG+EH models on the front axle:
Adaptation work for the brake hose holder is necessary
Installation instructions on the rear axle:
Please note the distance between the forks is 52mm or 46mm
Corresponding adapters are included in the scope of delivery

Axle:

-

KeyType number:

4262,4263,4265,4267,4275,4276,4277,4292,4293,5196,5197,5198,5199,5200,5201,5202,5203,10596,14900,14901,17524,17525,18020,18832,20416,20440,20441,21390,22022,25155,27753,27760,28319,29528,29529,29530,29531,29536,29537,29538,29539,29540,29561,29591,29592,33186,33188,55316,55761,55811,55818,55838,55932,55935,,4232,4233,21394
