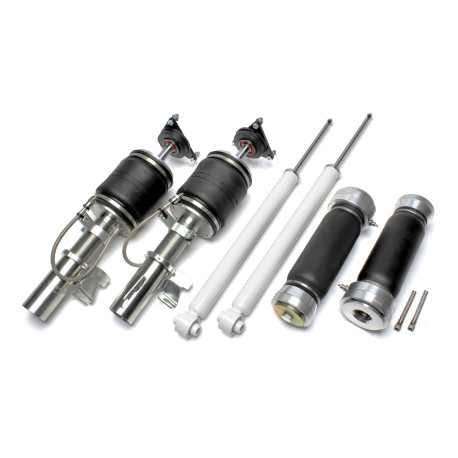

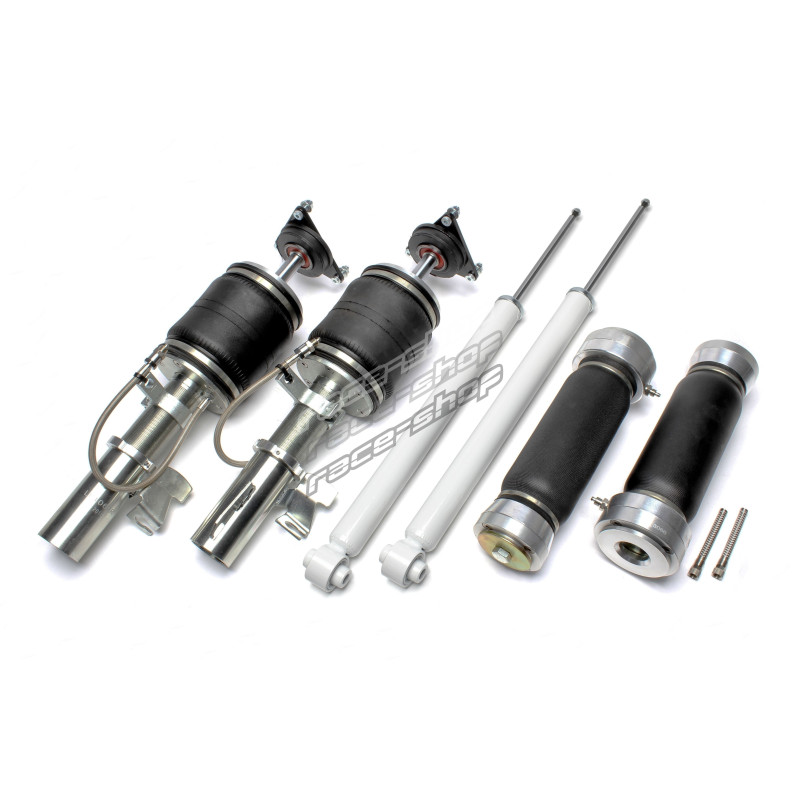

TA-Technix airride kit with air management for Mazda Mazda 3 - Typ BK

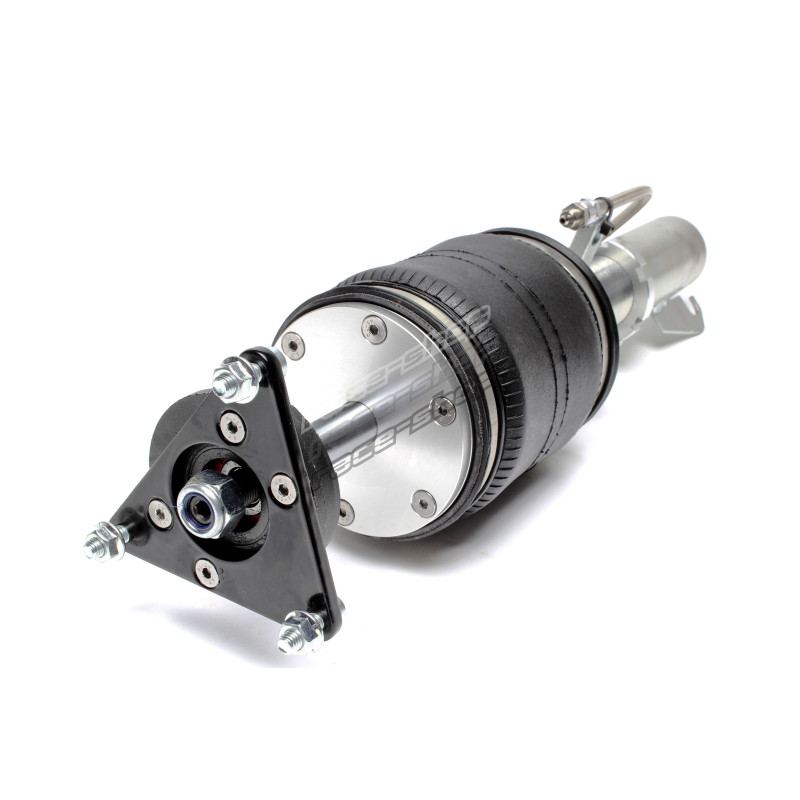

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 19 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Ford Focus II, model DA, year of construction 2004 - 2012
Ford Focus II notchback, model DA, year of manufacture 2005 - 2010
Ford Focus II Convertible, model DB3, year of manufacture 2006 - 2011
Ford Focus C-Max, model DM, year of manufacture 2003 - 2007
Mazda 3, -rear hatchback, model BK, year of manufacture 1999 - 2009
Volvo C30, Type M, Year of manufacture 2006 - 2012
Volvo S40 II, Type M, Year of manufacture 2004 - 2012
Volvo V50, Type M, Year of manufacture 2003 - 2012
Volvo C70 II Convertible, model M, year of manufacture 2006 - 2013
maximum front axle load: 1140kg
maximum rear axle load: 1090kg

Approval:

Including parts report (§19.3)

Implementation notes:

Volvo = excluding AWD models

Notes:

-

Axle:

-

KeyType number:

6253,6268,6269,6270,6271,7076,7078,7079,7151,7155,10058,10288,10323,10324,11894,11895,17668,17669,17670,17671,17672,17819,17820,17821,17822,17823,17824,17875,17876,17905,17906,18099,18111,18113,18275,18302,18303,18304,18305,18378,18600,18601,18603,18604,18934,18935,18952,18953,18954,18955,18956,18957,18958,18959,19167,19264,19519,19520,19522,19561,19562,19563,19564,19786,19808,19809,19810,19811,19812,19813,19814,19815,20090,20092,20891,20893,20923,22524,22525,22526,22527,22528,22529,23141,23142,23144,23149,23264,26570,26586,26587,27618,27619,27624,28033,28144,28567,30403,30405,30406,30834,30835,30837,33331,33332,33342,33343,33346,33494,33806,33818,33822,58581,107549,113250
