TA-Technix airride kit with air management for Volkswagen Passat Variant Typ 3C/B8/3G

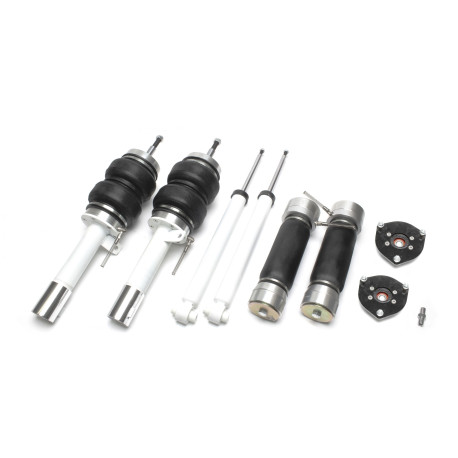

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below the minimum pressure triggers a visual warning signal and is necessary for TÜV registration)

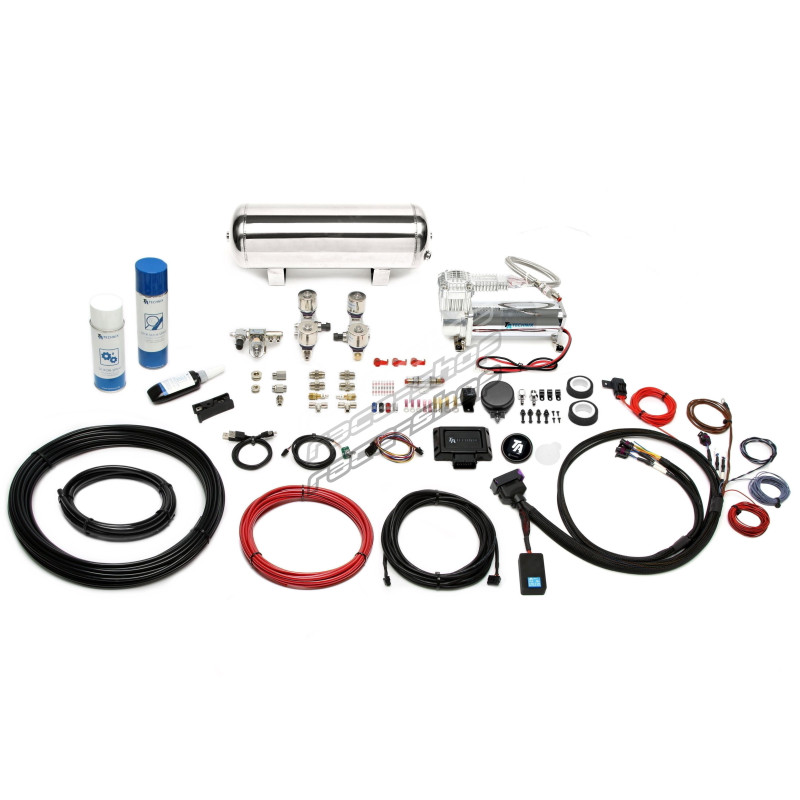

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 11.5 litre chrome tank
- Electronics set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 metre 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Audi TT type 8J-8S, year of construction 2013 -
Audi A3 incl. Sportback, model 8V, year of manufacture 2013 -
Seat Leon III, model 5F, year of manufacture 2012 -
Skoda Octavia III, - estate, type 5E, year of manufacture 2012 -
Skoda Superb III, model 3T, year of manufacture 2015 -
Volkswagen Golf VII, - Variant, type AU, AUV, year of manufacture 2012 -
Volkswagen Arteon, model 3H, year of manufacture 2017 -
Volkswagen Passat, - Variant, type 3C/B8/3G, year of manufacture 2014 -
all incl. 4-WD models
50mm and 55mm suspension strut
Models with multi-link axle (Multi Link)

We recommend the use of shorter coupling rods, e.g. EVOPE003
maximum front axle load: 1160kg
maximum rear axle load: 1250kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

50mm and 55mm strut diameter
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

11515,14219,21804,21897,23695,26743,26753,26760,35666,50895,53263,53313,53360,53772,54775,55092,55093,55094,55095,55481,55590,55591,55592,55593,55594,55595,55596,55597,55598,55599,55600,56144,56147,57430,57437,57438,57460,57461,57592,57594,57597,58759,58765,58946,58947,58948,59070,59115,59116,59120,59244,59246,59289,59488,59489,59490,59601,59610,59611,59616,59617,59618,59619,59621,59624,59629,59630,59631,59676,59677,59679,59680,100039,100040,100042,100043,100044,100046,100050,100074,100075,100774,100775,100776,100777,100787,100788,100790,100791,100799,100800,100931,101038,101157,105627,105628,105748,105911,105912,105919,106221,106222,106223,106225,106226,106227,106229,106231,106367,106369,106371,106374,106375,106376,106378,106379,106380,106381,106382,106383,106415,106416,106601,106611,106613,106635,106644,106654,106657,108396,108397,108398,108402,108403,108612,108613,108615,108616,108628,108629,108630,108631,108634,108635,108636,108644,108648,108649,109842,112296,112379,112382,112383,112384,112385,112386,112387,112388,112394,112397,112398,112399,113304,113308,113310,113313,113320,115103,115104,115105,115137,115138,115160,115161,115163,115164,115166,115167,115168,115169,115193,115194,115210,115232,115233,115235,115236,115237,115238,115239,115581,115584,116310,118000,118001,118002,118030,118645,118892,118893,120193,120607,120608,120609,120613,120616,120617,120618,120620,120627,120629,120632,120633,121601,121603,121604,121605,121956,125351,125352,125703,125718,125719,125720,125943,125944,125996,126002,126003,126007,126625,126829,126831,126840,127056,127988,128000,128179,128180,128181,128995,129059,133731,133732,133859,133863,137129,137131,138203,138204
